SEAL STRUCTURE AND CENTRIFUGAL COMPRESSOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 27, 2013
app pub date -
Sep 9, 2011
filing date -
Sep 9, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

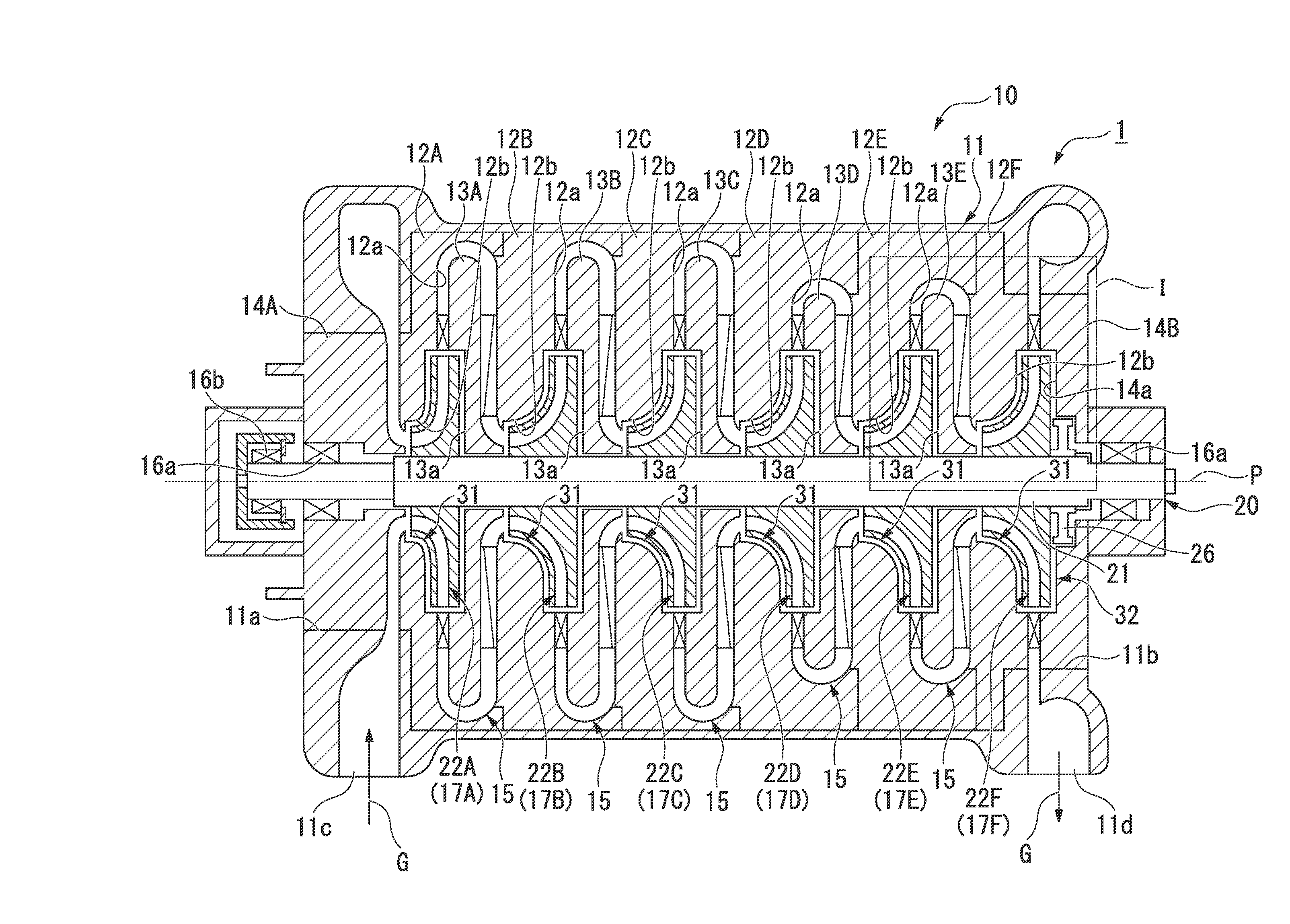

Provided is a seal structure (50, 60) configured to seal a clearance (31, 32) with respect to a flow path defined by a rotary body (20) rotated about a central shaft (P) and configured to allow passage of a mainstream, and a stationary body (10) disposed at the rotary body (20) to form the clearance (31, 32), the seal structure including a seal member (51A, 51B) installed at the clearance (31, 32) and configured to divide a fluid introduced from the mainstream into the clearance (31, 32) into a high pressure side and a low pressure side, and a shifting member (52A, 52B) installed at the high pressure side of the fluid in the clearance (31, 32), and configured to allow passage of the fluid and reduce a velocity component in a rotational direction of the rotary body (20) of the velocity component of the fluid.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | A | JP2012057726 | Sep 09, 2010 |
| EP | A1 | EP2615338 | Sep 09, 2011 |
| WO | A1 | WO2012033192 | Sep 09, 2011 |
International Classification(s)
- 2011 Application Filing Year
- F04D Class
- 829 Applications Filed
- 694 Patents Issued To-Date
- 83.72 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 7 Citation Count
- F04D Class
- 8.61 % this patent is cited more than
- 12 Age
