Tractor Rear Hitch
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 20, 2013
app pub date -
Aug 25, 2011
filing date -
Aug 26, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

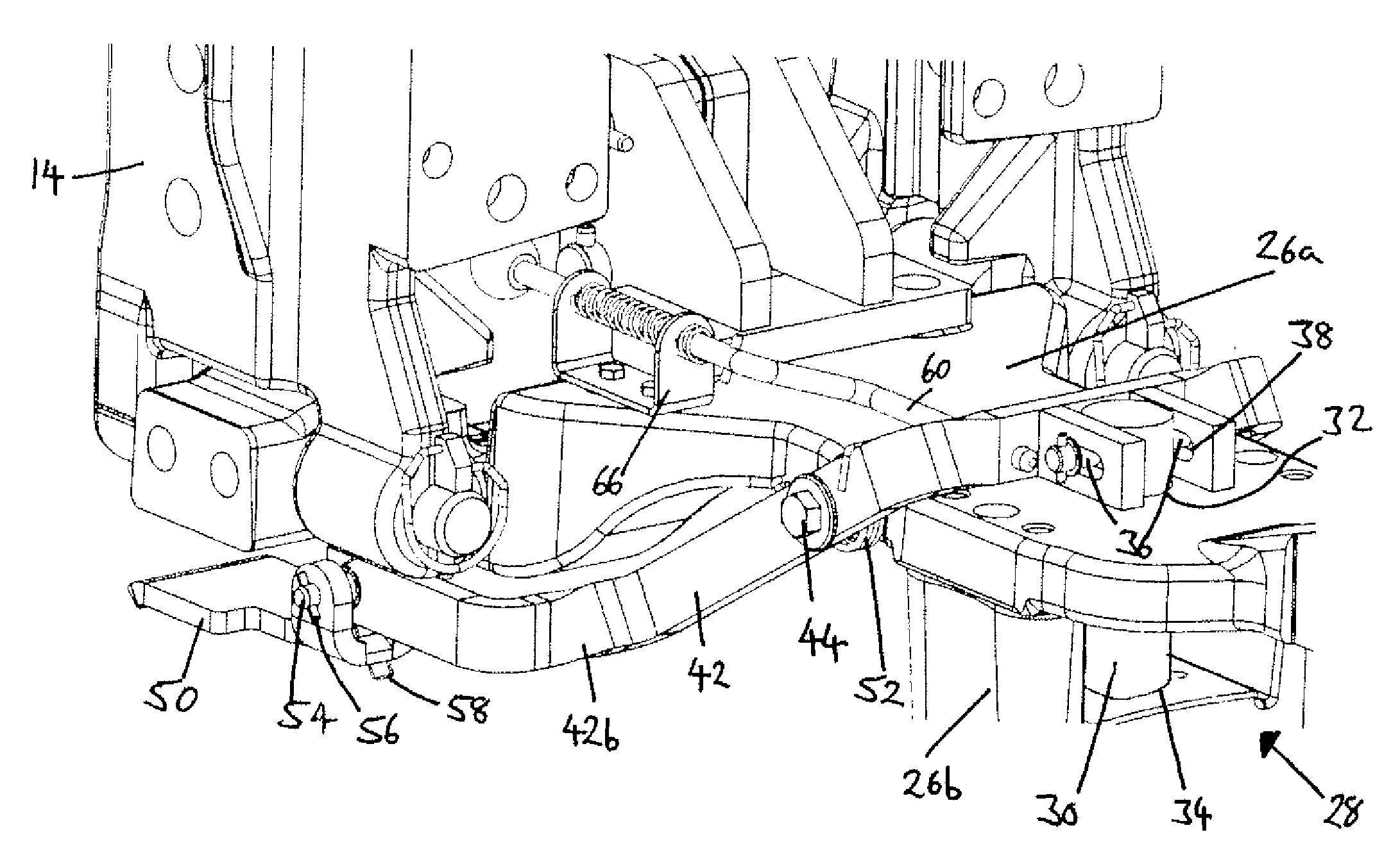

A tractor rear hitch (10) comprising a drawbar (24) and a drawbar support frame (26) is provided. The drawbar is secured to the support frame by a pin (30) which is inserted through respective holes in the support frame and the drawbar. A drawbar release member (40) comprises a lever (42) which is pivotally mounted to the support frame. The drawbar release member is pivotally connected at a forward end (40a) to the pin so as to lift the pin, and thus release the drawbar, when a rear end of the lever is forced downward. A pedal (50) is mounted to the rear end of the lever which allows an operator to force the lever downwards using their foot. The provision of a pedal-operated release mechanism delivers a significant ergonomic advantage in that the operator no longer need apply the pin lifting force with their hands close to the ground.
First Claim
Other Claims data not available
