Sewing Machine
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 20, 2013
app pub date -
Dec 19, 2012
filing date -
Dec 20, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

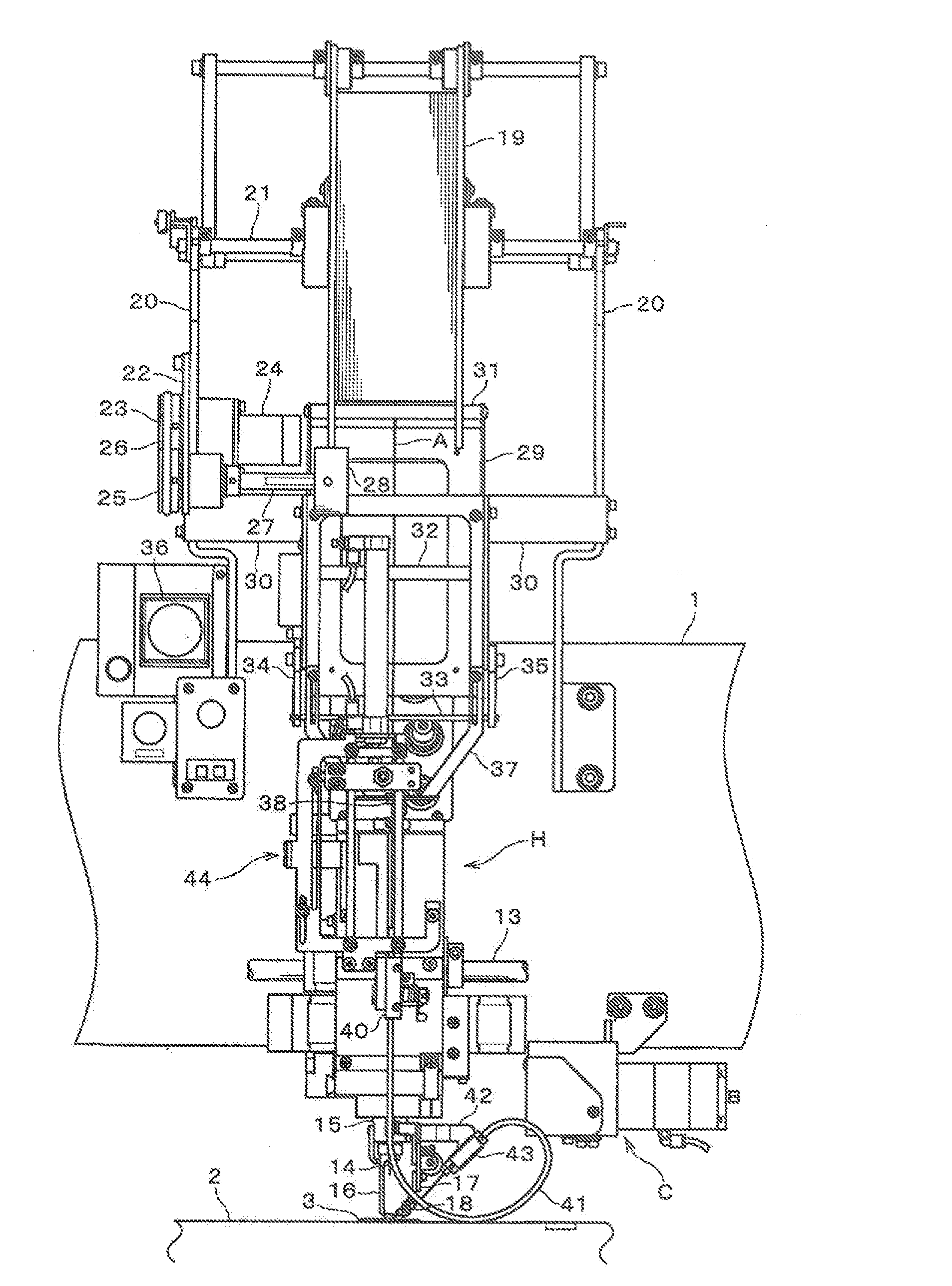

A pulling device is configured to grip, after cutting of a sewing material, a suitable portion of the sewing material by means of a grip member, where a leading end portion of the sewing material having been pulled out from a guide device, and pull back the sewing material by movement of the grip member having the sewing material gripped thereby. Thus, the leading end portion of the sewing material, pulled out and extending from the guide device more than necessary, can be minimized to a length necessary for the sewing material to be reliably sewn onto a sewing object at an initial stage of a next sewing operation. In this way, it is possible to minimize a length of a portion of the sewing material that was heretofore wasted without being sewn onto the sewing object.
First Claim
Other Claims data not available
