EXPIRATORY VALVE FOR CONTROLLING A FLOW
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 13, 2013
app pub date -
Nov 13, 2012
filing date -
Nov 17, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

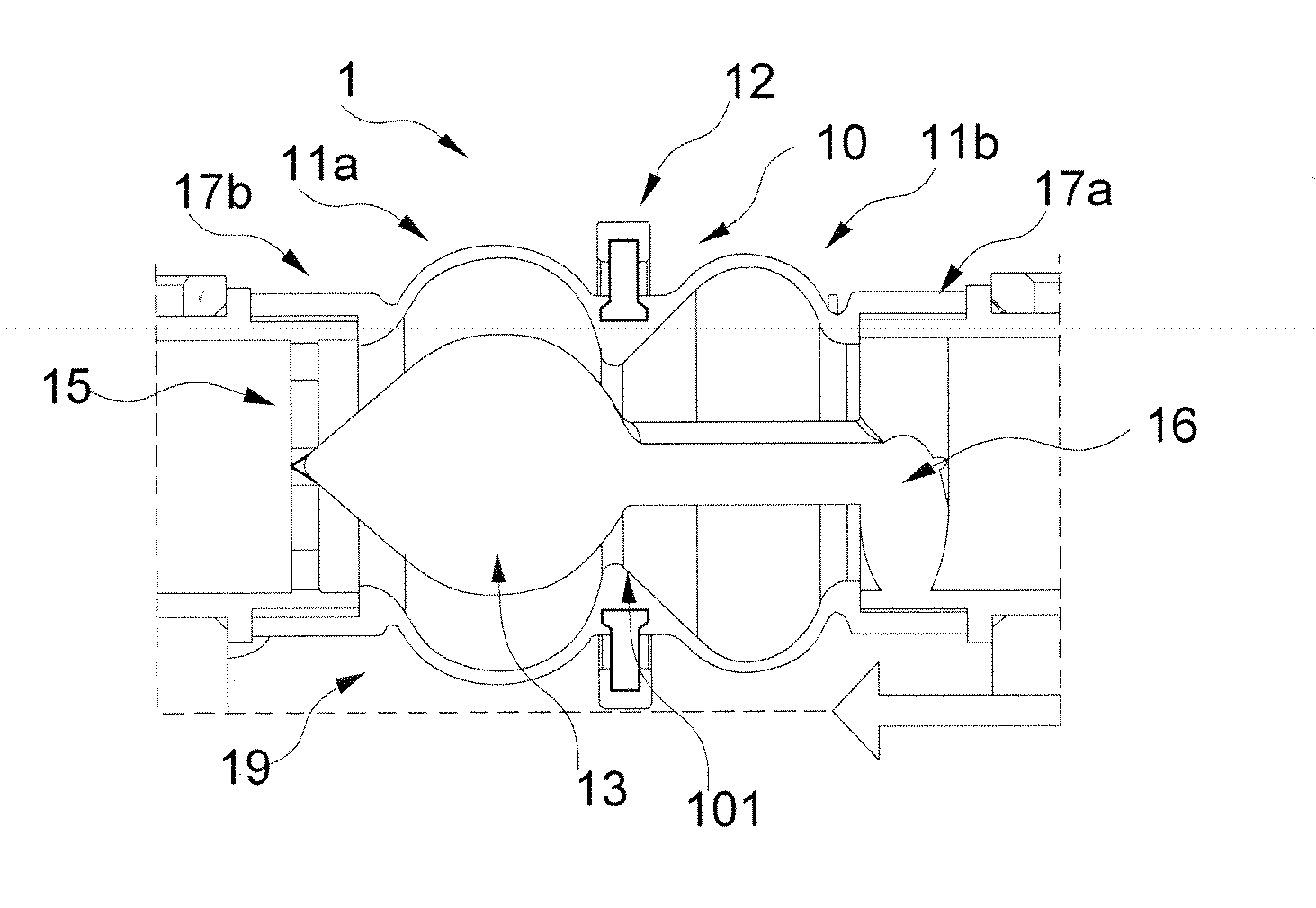

A valve for a medical ventilator comprising a hollow flexible body having at least one outwardly bulging area with a curved inner surface. The hollow flexible body further comprises an inwardly protruding abuttable area positioned between two fixed end points. Further the valve comprises a flow channel located inside said hollow flexible body for passage of a fluid between an inlet and an outlet, a valve seat centrally positioned in said flow channel and an annular element circumferentially arranged around said hollow flexible body. The annular element is arranged to be movable in an axial direction along the flow channel by an actuator unit, and whereby said abuttable area is at least partially repositioned and/or reshaped to control a flow of the fluid through the flow channel.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61M Class
- 1.98 % this patent is cited more than
- 12 Age
