PROCESS FOR OPERATING A WASHER DRYER WITH A SENSOR PLACED BETWEEN A TUB AND A HEAT EXCHANGER, AND RELATED WASHER DRYER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 13, 2013
app pub date -
Dec 13, 2011
filing date -
Dec 13, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

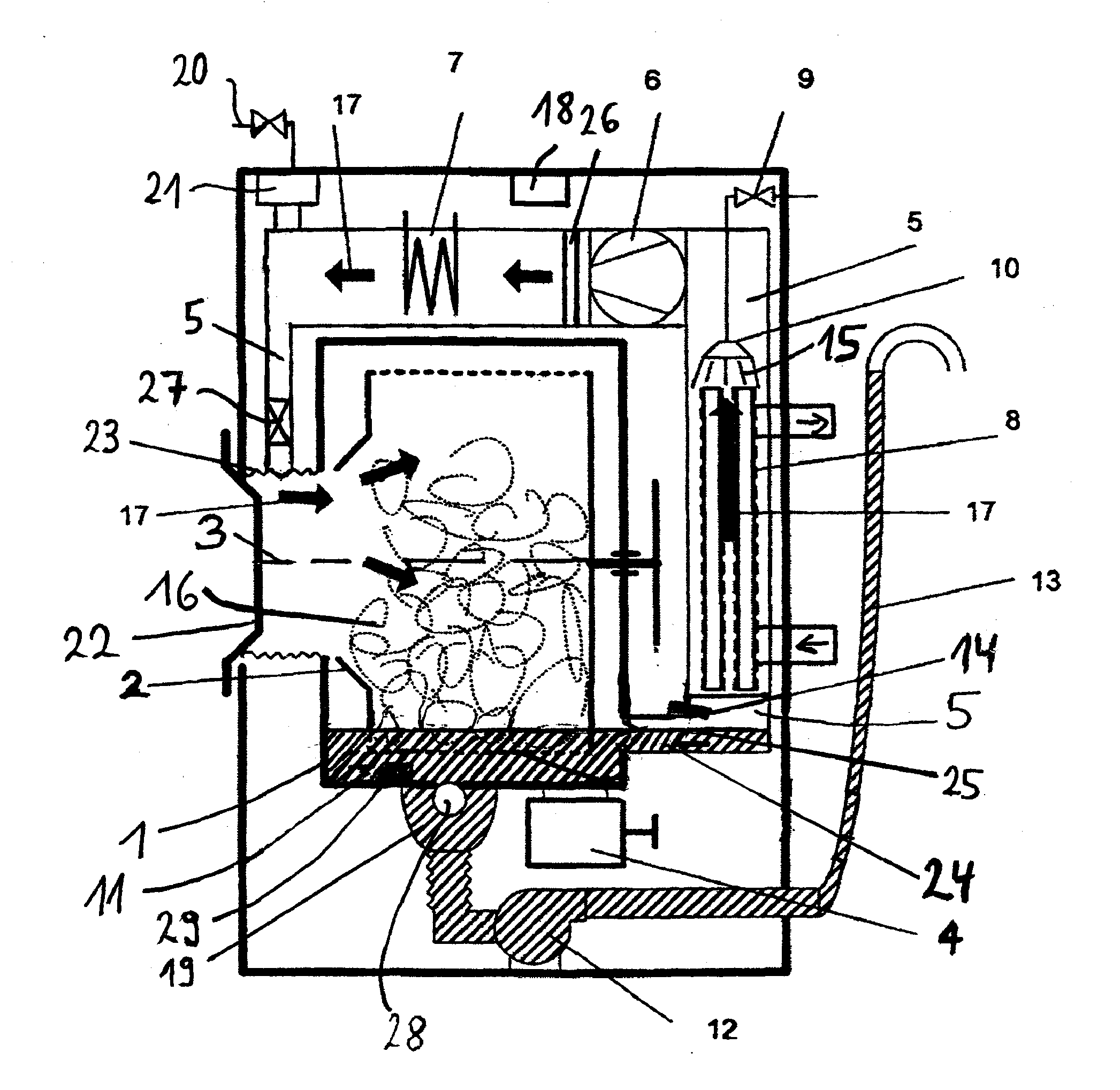

A method for operating a washer dryer comprising a tub, a drum mounted in the tub to be rotatable around an essentially horizontal axis for receiving laundry items, a process air circuit comprising an air heater and a blower to heat and circulate the heated air through the drum, a heat exchanger to condense moisture from the process air coming out of the drum, a sensor placed in the process air circuit between the tub and the heat exchanger, and a rinsing device, whereby the rinsing device flushes the sensor in a flushing phase with an aqueous cleaning liquid when the temperature T in the process air circuit between the tub and the heat exchanger is in a temperature range between an upper temperature limit Tmaxset and a lower temperature limit Tminset. The invention also relates to a washer dryer for performing this method.
First Claim
Other Claims data not available
