ASSEMBLY TOY
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jun 6, 2013
app pub date -
Jun 30, 2011
filing date -
Aug 27, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

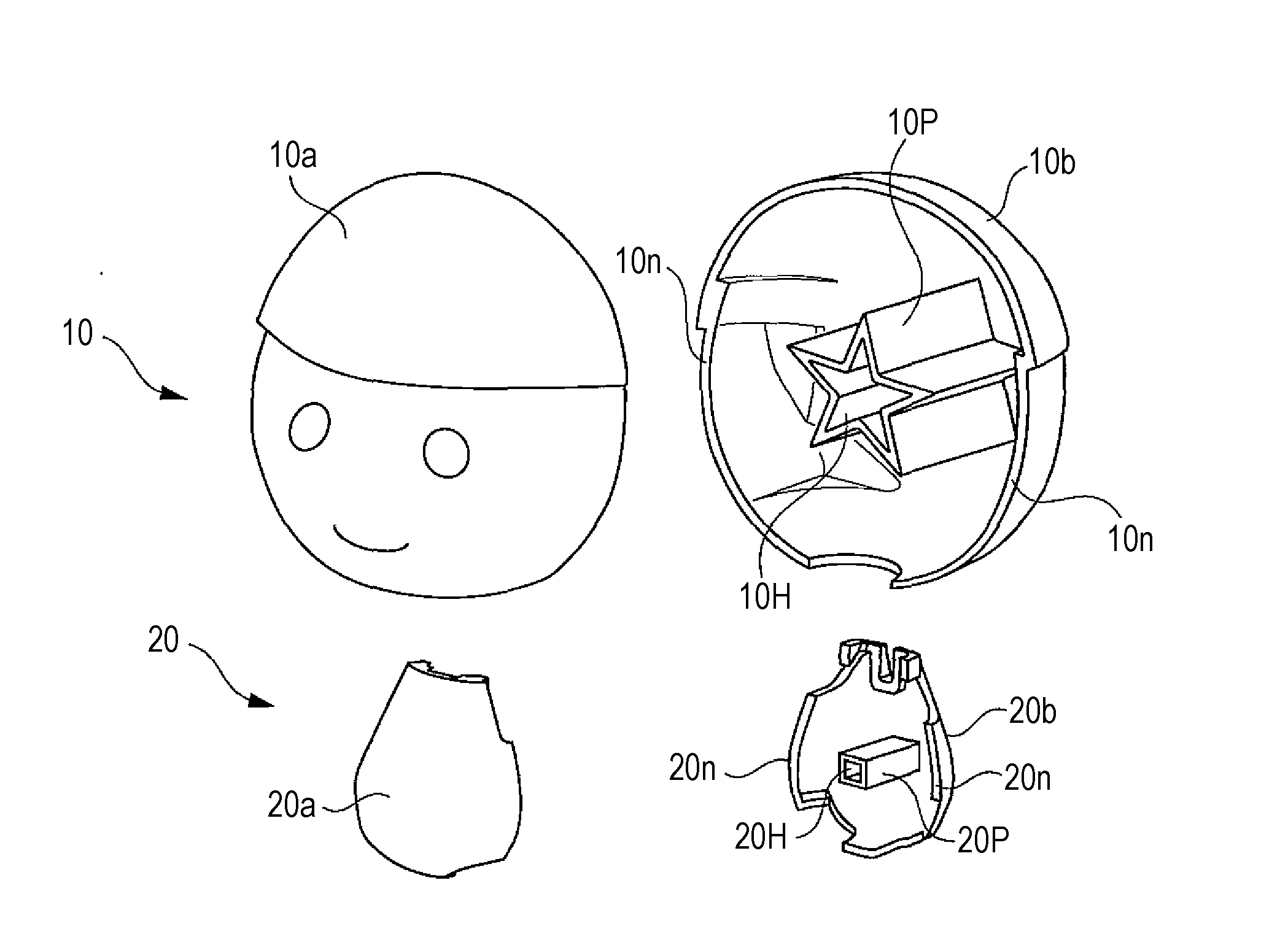

Provided is an assembly toy which includes a first molded member and a second molded member which are aligned with and face each other, wherein: a projection is formed in the first molded member on a surface which faces the second molded member; a hole in which the projection is fit is formed in the second molded member on a surface which faces the first molded member; an outer peripheral shape of the projection along a cross-section perpendicular to the direction in which the projection projects is other than a circle; a peripheral shape of the hole on a surface which faces the first molded member corresponds to the outer peripheral shape of the projection; and the projection fits in the hole without rotating about the central axis thereof.
First Claim
Other Claims data not available
