Angled Support for Displaying Products
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 28, 2013
filing date -
Jun 28, 2006
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

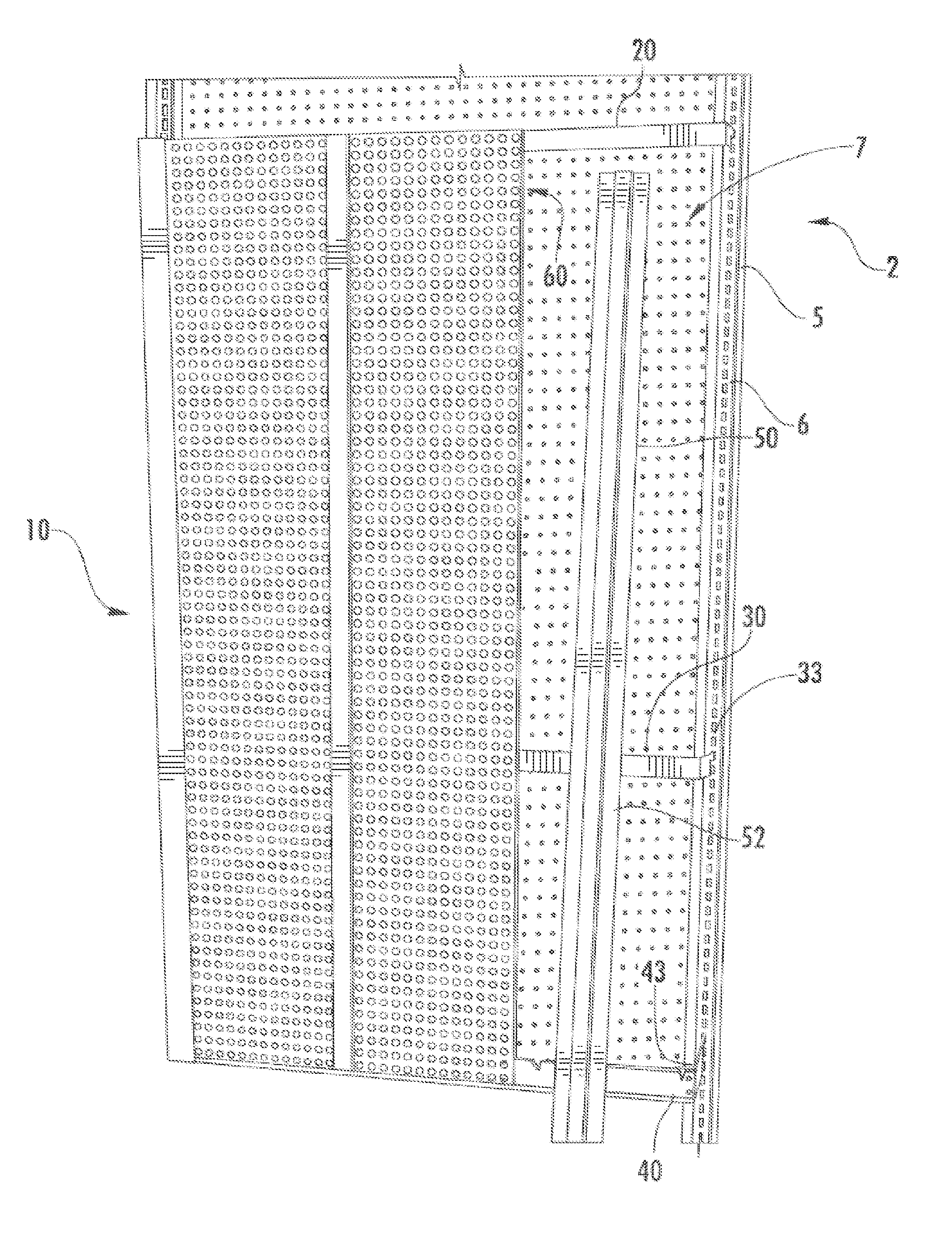

A support structure may be mounted to an existing vertical support. In an embodiment, the support structure may include a plurality of horizontal support members. Two or more vertical uprights are mounted to the horizontal supports. The vertical uprights and one of the horizontal support members provide channels for retaining a peg board panel in position. The support structure may be configured so as to cause the peg board panel to at an angle compared to the vertical supports. Multiple support structures may be coupled together to provide runs of peg board panels. Furthermore, the peg board panel may include a graphic that correspond to products being supported by the peg board panel.
First Claim
Other Claims data not available
