Orthodontic Force Module Including Elastomeric Member for Class II and Class III Correction
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 23, 2013
app pub date -
Jul 27, 2011
filing date -
Aug 5, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

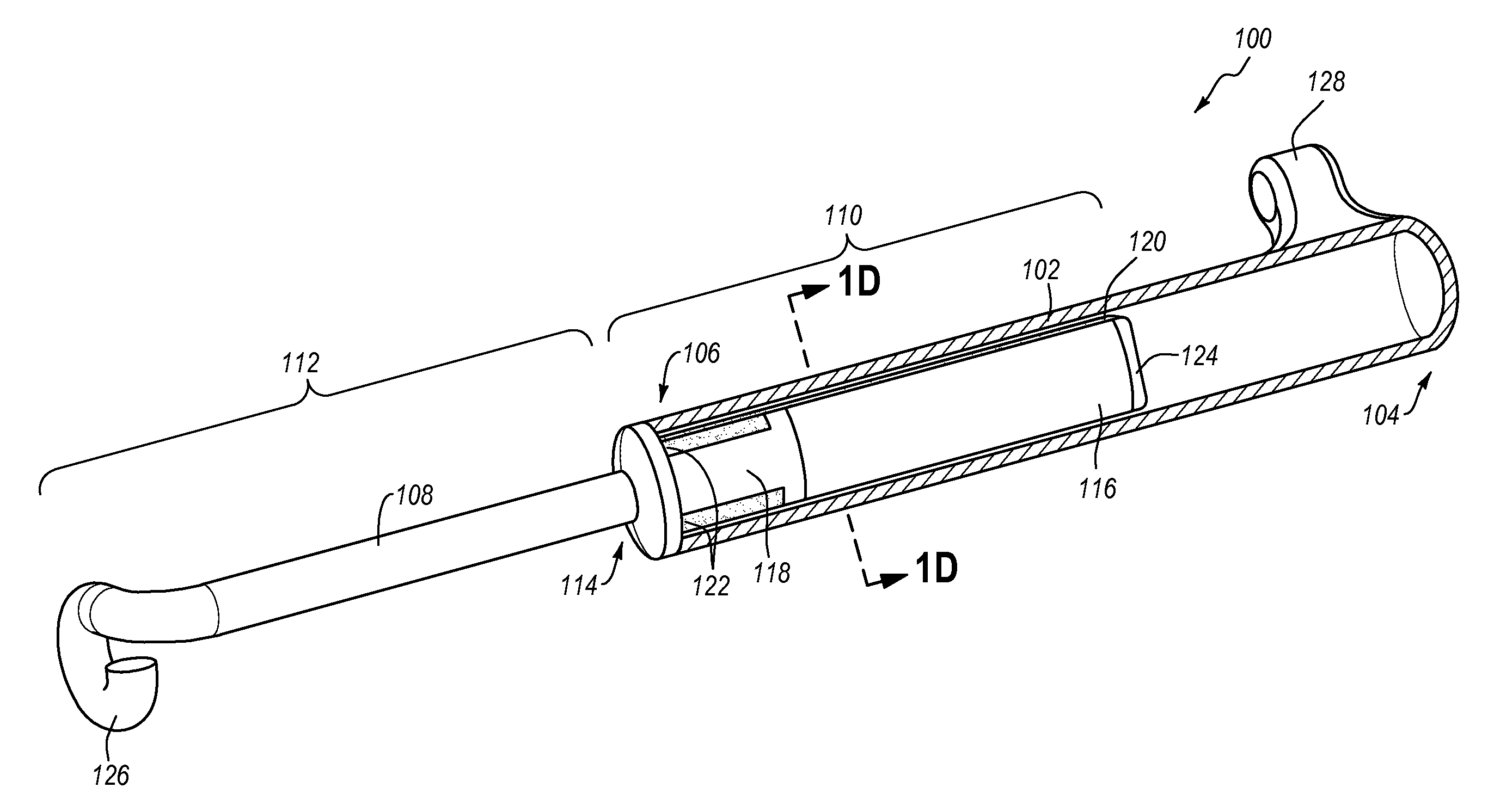

Orthodontic force modules for use in correcting class II and/or class III malocclusions. In one embodiment, the force module (100) includes an elongate body (102) extending between a distal end (104) and a proximal end (106), a movable member (108) extending between a proximal end (112) and a distal end (110) that is slidably disposed relative to the elongate body (102), a movable piston (108) disposed at or near the distal end (110) of the movable member, a stop (118) disposed at or near a proximal end (106) of the elongate body (102) and proximal to the movable piston (108), and an elastomeric member (120). A proximal end (112) of the elastomeric member (120) is cooperatively coupled to the stop (118), while a distal end (110) is cooperatively coupled to the movable piston (108) so that when the movable member is moved distally relative to the body, the elastomeric member (120) stretches so as to apply a counter-force to the movable member (108).
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2012018648 | Jul 27, 2011 |
International Classification(s)
- 2011 Application Filing Year
- A61C Class
- 612 Applications Filed
- 489 Patents Issued To-Date
- 79.91 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- A61C Class
- 4.61 % this patent is cited more than
- 12 Age
