MARKING DEVICE FOR A PERSONAL MOBILITY VEHICLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 23, 2013
app pub date -
Jan 18, 2013
filing date -
Jun 18, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

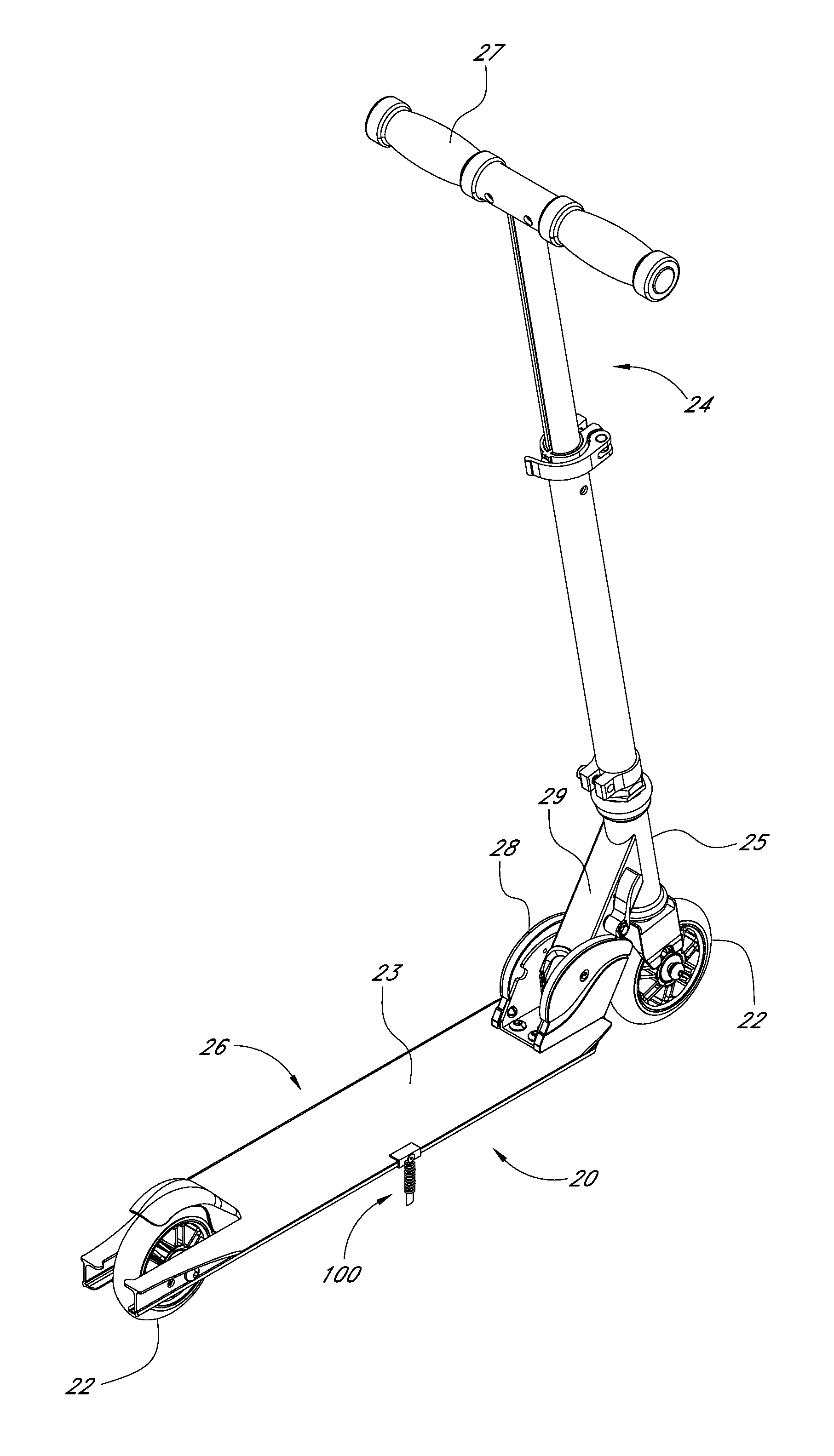

A marking device that is supported by a personal mobility vehicle, such as a scooter, is movable from a first position, in which the marking device does not contact the riding surface, and a second position, in which the marking device contacts the riding surface. The marking device includes an attachment portion and a marking portion that creates markings on the riding surface as a result of frictional contact with the riding surface. The marking device can also include an actuation portion which is accessible to the user and allows the user to move the marking device to the second position. In one arrangement, the marking device includes an elastic marking member which is configured to bend in order to maintain contact with the riding surface.
First Claim
Other Claims data not available
