OPHTHALMOLOGIC IMAGING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 23, 2013
app pub date -
Jul 25, 2011
filing date -
Aug 10, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

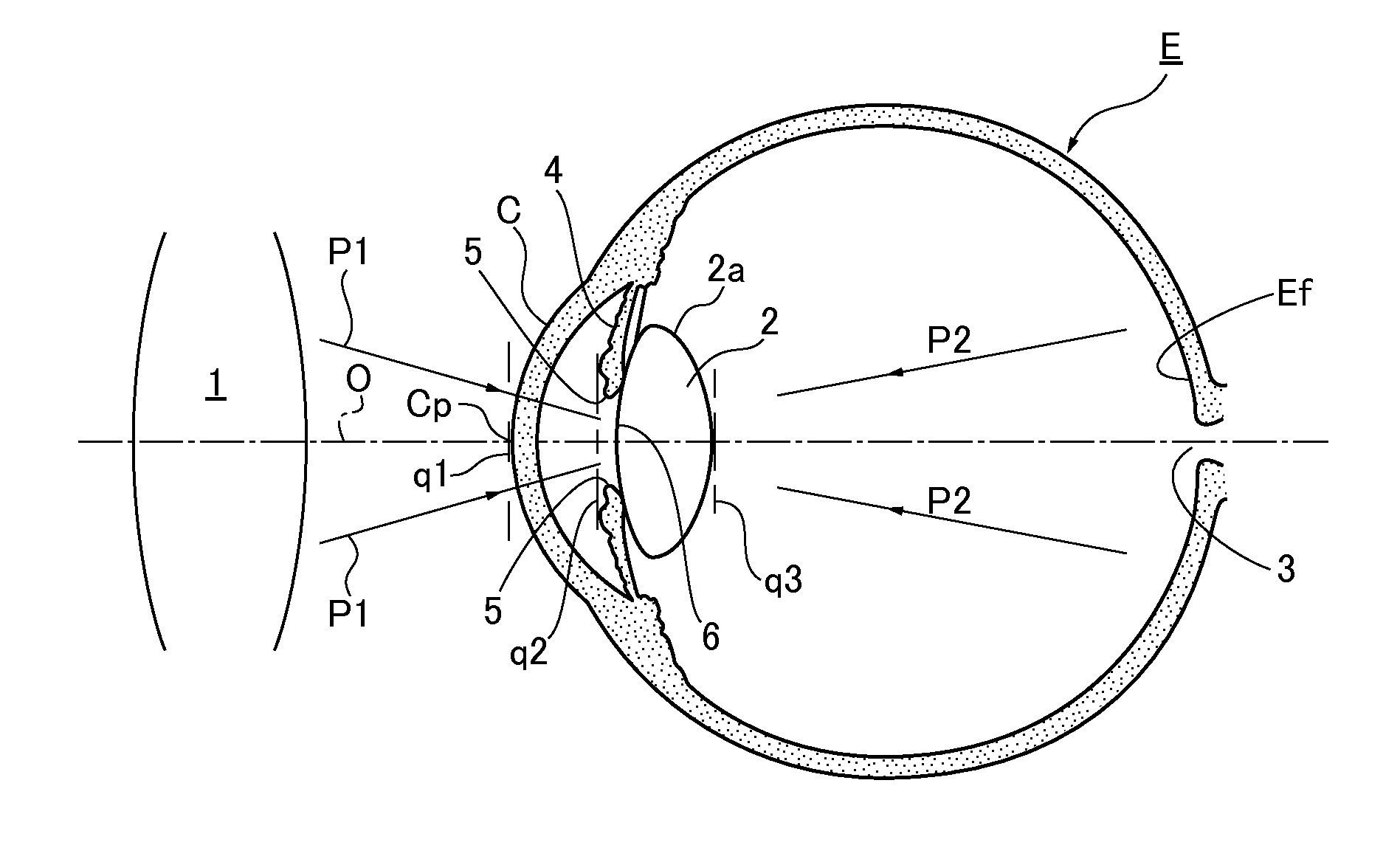

An ophthalmologic imaging device includes an optical illumination system having a cornea aperture, an iris aperture, and a lens aperture and an split mark projection system for focusing on the fundus of the subject eye. A light source is controlled by a controller to emit light for being able to obtain at least two consecutive fundus images. An inner aperture image corresponding to the lens aperture is projected on the posterior surface of the lens. The controller controls the lens aperture so that for obtaining a second fundus image, the inner aperture image is projected at a position shifted relative to the optical axis of an optical observatory or imaging system from a position at which the aperture image is projected for obtaining a first fundus image.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- A61B Class
- 2.23 % this patent is cited more than
- 12 Age
