Spinning Nozzle Arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 23, 2013
app pub date -
Oct 28, 2010
filing date -
Oct 28, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

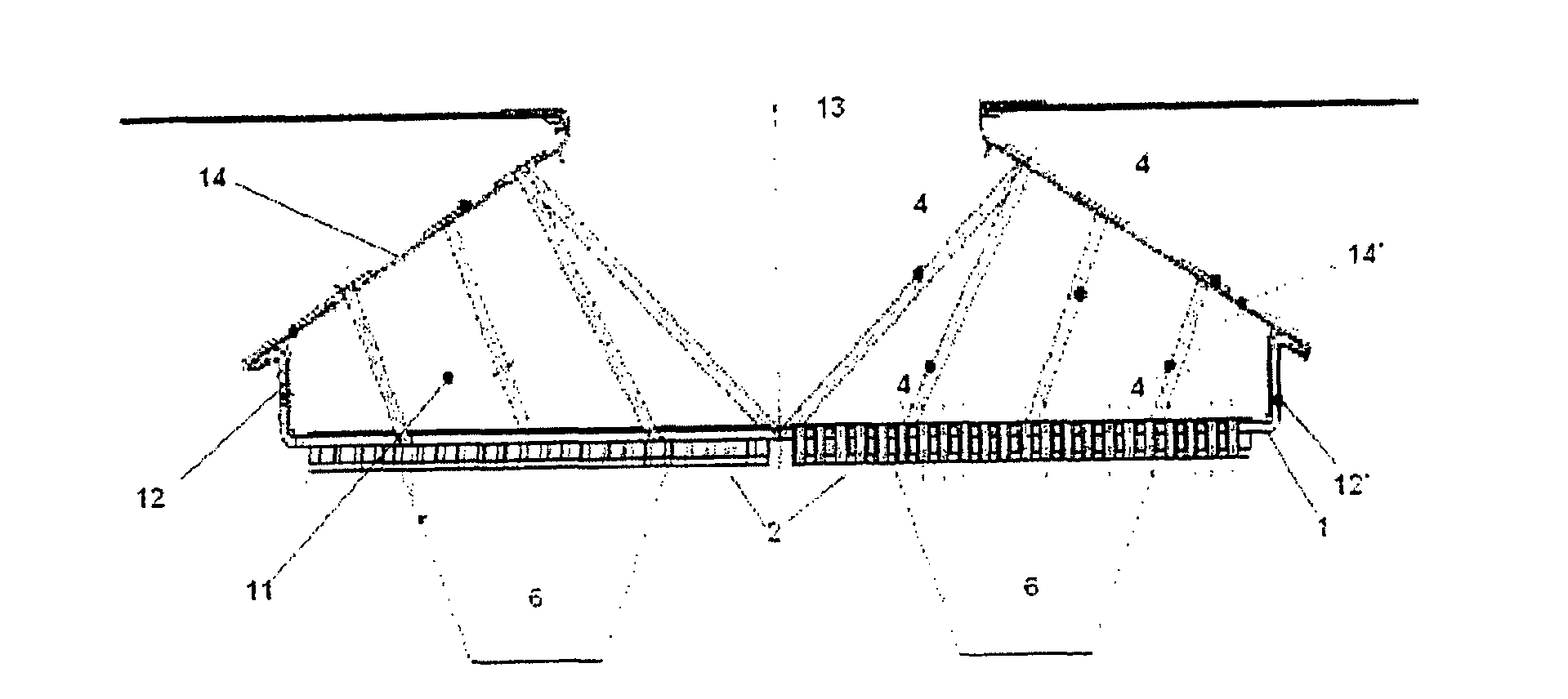

The object of the invention is to provide a spinning nozzle arrangement, which enables an increase, and thus an improvement, in productivity without the said drawbacks and displays as homogeneous a temperature distribution as possible in the region of the nozzle. The object is achieved by a spinning nozzle arrangement (10) for the manufacture of glass fibres, having a melting chamber (11) which is formed by side walls (12,12′), cover plates (14,14′), end plates, a base plate (1), which is provided with a multiplicity of openings or nozzles (2) aligned parallel to the side walls (12) of the spinning nozzle (10), and a feed line (13) for the glass melt (17), characterized in that the base plate (1) is provided on its top side with additional stiffening elements (4), which are connected to the cover plates (14,14′).
First Claim
Other Claims data not available
