SOLID WHEEL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 16, 2013
app pub date -
Nov 10, 2011
filing date -
Nov 10, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

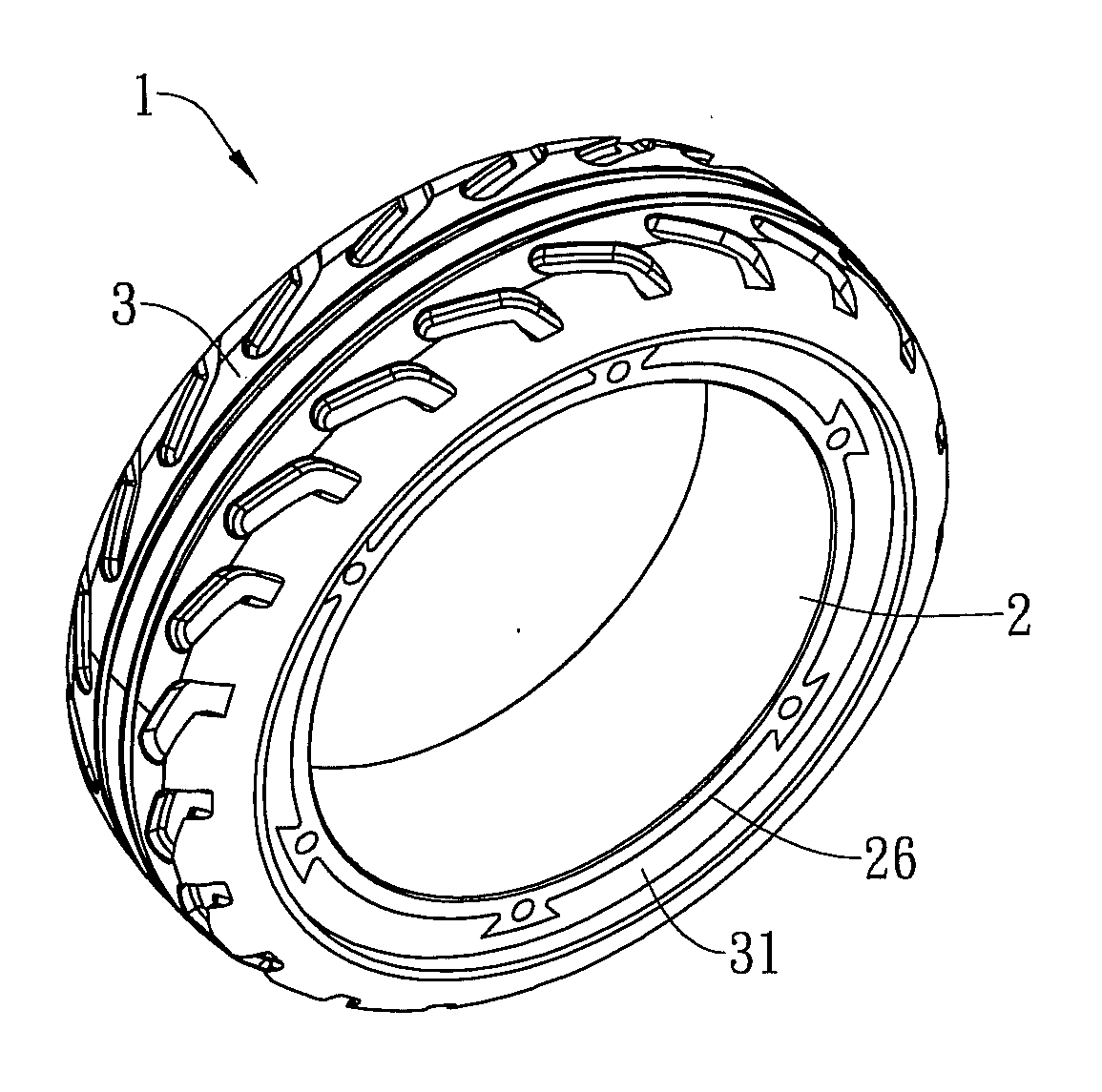

A solid wheel comprises a wheel rim and a rubber tire. An internal and an external rings are formed between left and right lateral surfaces of the wheel rim. The internal ring's external periphery is provided circularly with a plurality of axially-extended positioning blocks. Each of plural positioning grooves is formed between any two positioning blocks, the internal ring's external periphery, and the external ring's internal periphery and passes axially through the wheel rim. The external ring's axial width is shorter than the internal ring's. Any of the external ring's left and right lateral sides is provided with a plurality of recesses. The rubber tire's internal periphery is integratedly formed on the internal and external rings of the wheel rim. Thereby, the wheel rim can be firmly fixed with the rubber tire so as to prolong the lifetime of the wheel and ensure the driving safety.
First Claim
Other Claims data not available
