DRIVE ASSEMBLY FOR EXPANDABLE ENCLOSURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
May 16, 2013
app pub date -
Nov 11, 2011
filing date -
Nov 11, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

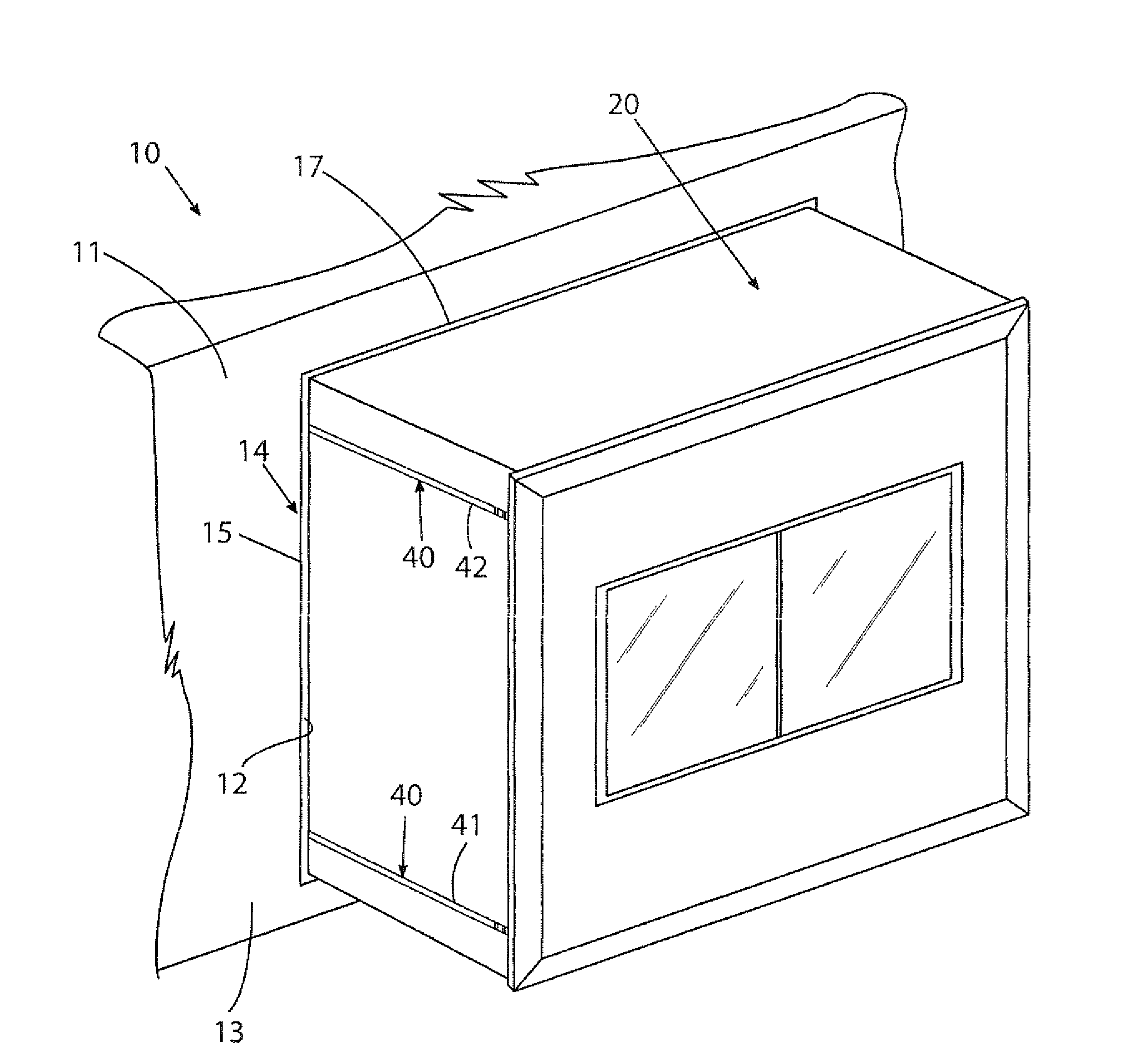

A drive system for an expandable enclosure having a slide out, the drive system including a first guide, a second guide spaced from the first guide, a drive wheel supported between the first and second guides and inward thereof, and a belt operatively engaging the drive wheel and having a first end and a second end, where the first end extends outward from the drive wheel and over the first guide and the second end extends outward from the drive wheel and over the second guide, each of the ends being attachable to the slide out, where the drive wheel is rotatable to move the belt to move the slide out.
