Packaging for Low-Cost, High-Performance Microwave and Millimeter Wave Modules
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 10, 2013
filing date -
Feb 2, 2007
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

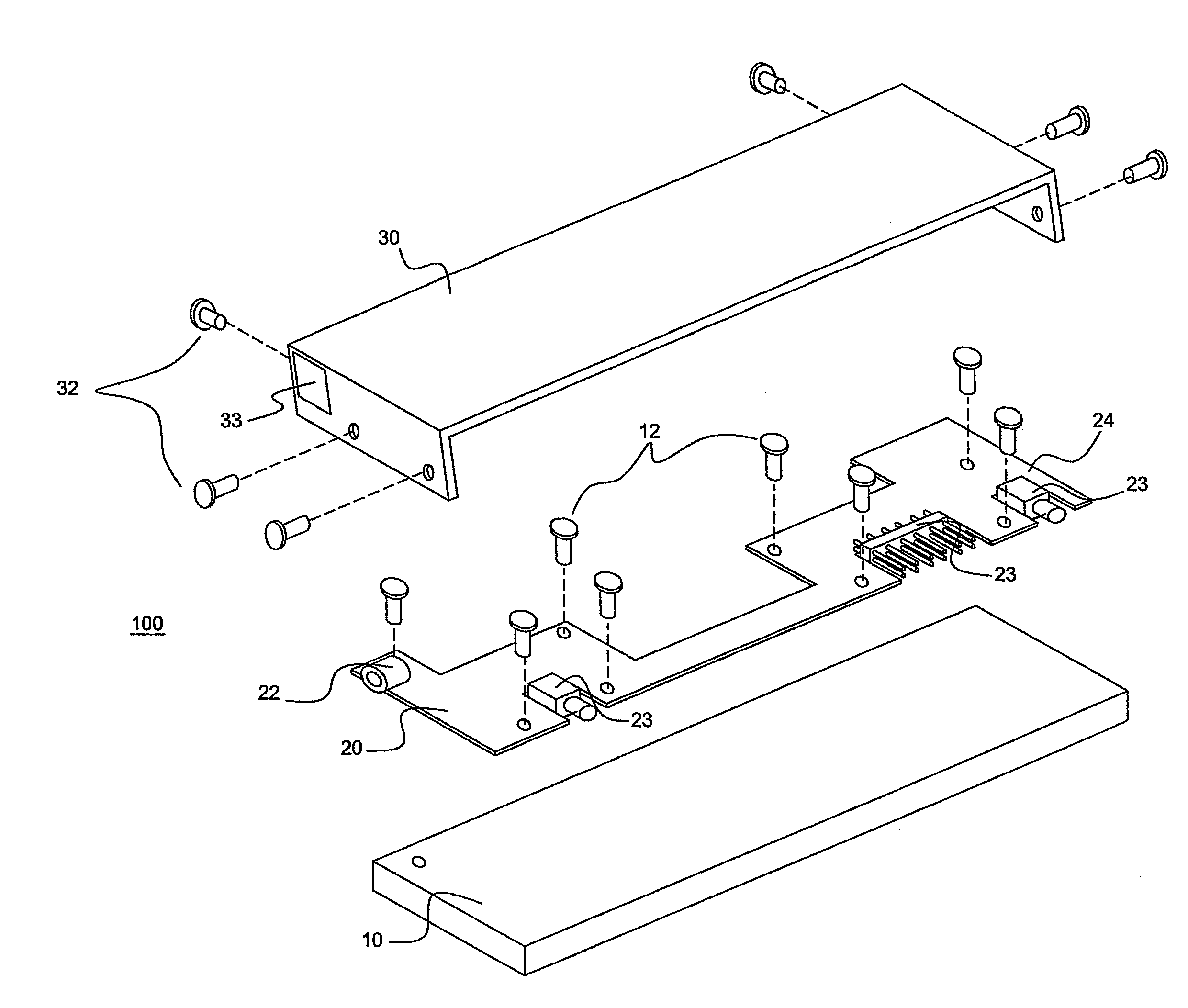

Microwave or millimeter wave module packaging having a module with a baseplate, transition board and cover. The baseplate includes microwave or millimeter wave components attached thereto. The transition board includes a first connector attached to a first side thereof and operatively connected to the components, and a second connector attached to a second side thereof and operatively connected to the components through the board. The cover and baseplate form a cavity containing the board and components, and the second connector may be operatively connected to a third connector such as a printed circuit board disposed outside of the cavity and on a higher level assembly. The transition board may further include a fourth connector operatively connected to the components for providing a signal to an external component or device or receiving a signal from an external component or device.
First Claim
Other Claims data not available
