Spraying Device With Interchangeable Cartridge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 15, 2012
filing date -
Nov 13, 2003
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

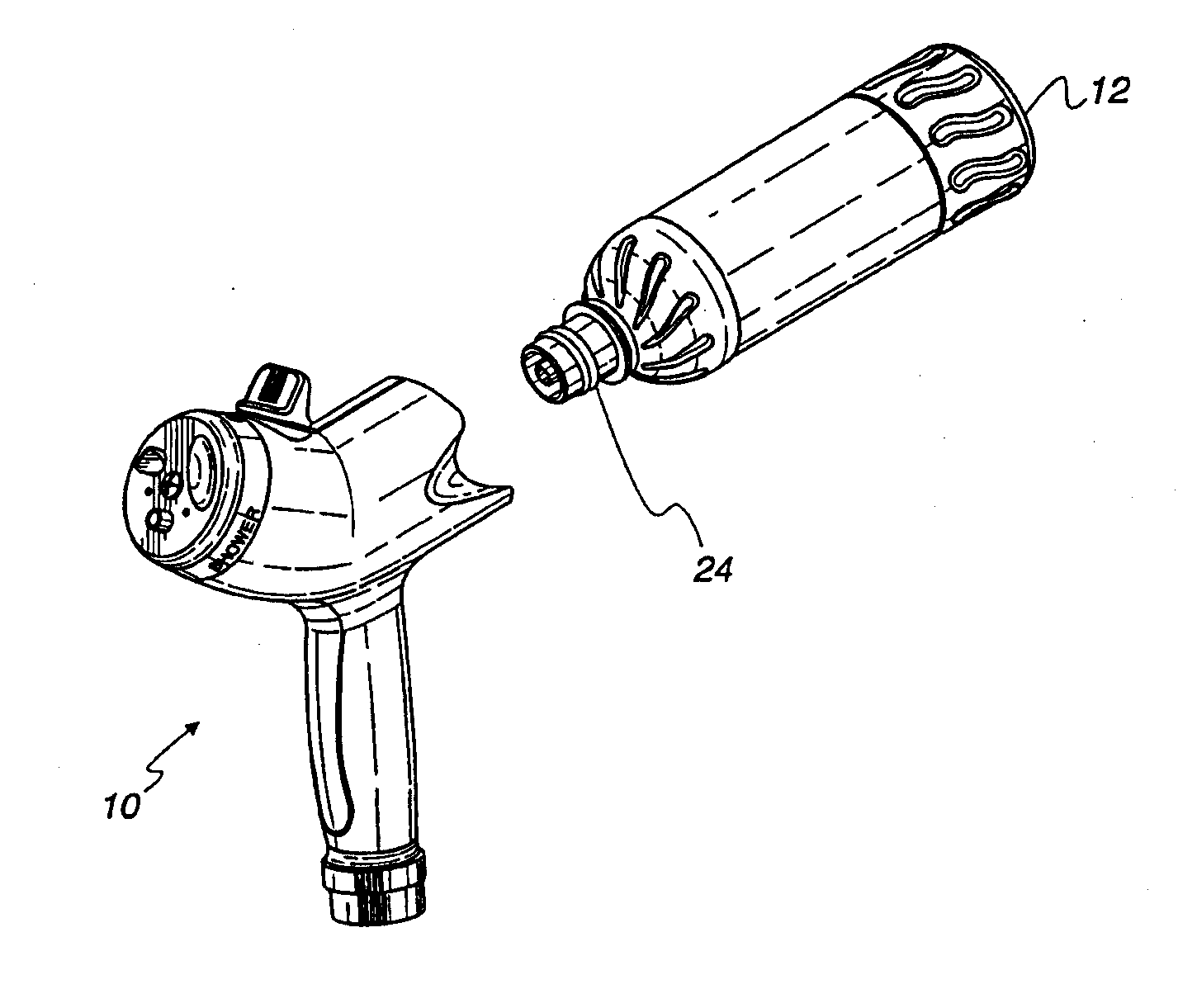

A spraying device is provided that includes a cartridge containing a first fluid, the cartridge being removably connected to a sprayer body. The cartridge is oriented such that gravity exerts a downward force on the first fluid. The sprayer body includes a conduit for receiving a second fluid. A valve is coupled to the conduit. The valve allows the second fluid to flow through the valve, thus creating a Venturi vacuum that draws the first fluid out of the cartridge and into the valve to enable the first and second fluids to mix and form an outlet stream. An orifice meters a predetermined amount of the first fluid into the valve to achieve a predetermined ratio of the first fluid to the second fluid. The outlet stream is then dispensed from a spray nozzle.
