ICE CHUTE ARRANGEMENT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 25, 2013
app pub date -
Oct 25, 2011
filing date -
Oct 25, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

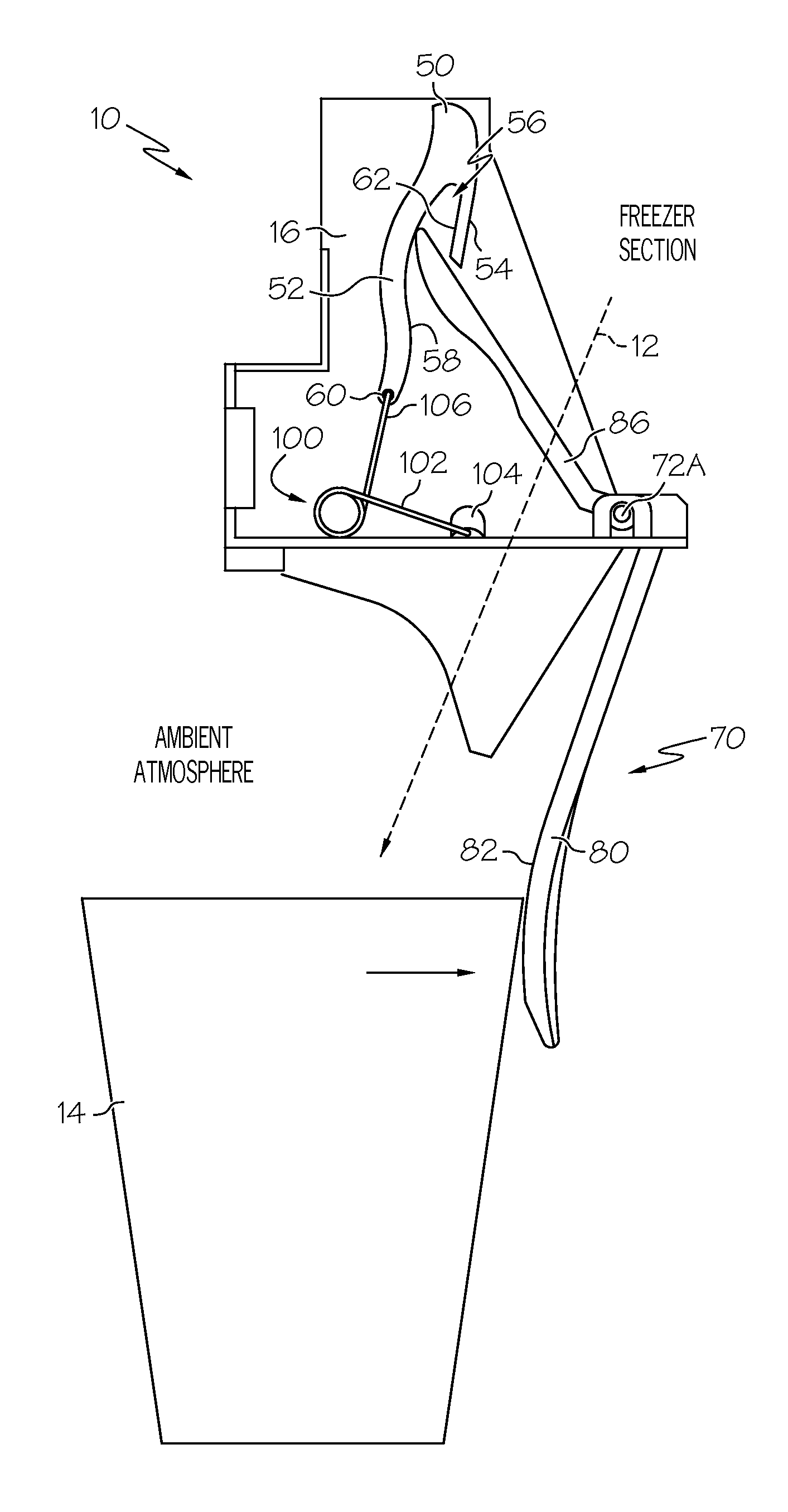

An ice chute arrangement that includes a fixed frame adjacent to an ice passageway. A flap is pivotal upon the frame between a first flap position and a second flap position. The flap blocks the ice passageway when the flap is in the first position, reveals the passageway when the flap is in the second position and transitions through an intermediate position. The arrangement includes a paddle pivotal upon the frame between a first position and a second position. The paddle causes the flap to pivot from the first position to the second position as the paddle pivots from the first position to the second position. The arrangement includes a first spring that biases the flap toward the first flap position while the flap is in the first flap position and biases the flap toward the second flap position while the flap is in the second flap position.
First Claim
Other Claims data not available
