FLOW RATE CONTROL DEVICE, DIAGNOSTIC DEVICE FOR USE IN FLOW RATE MEASURING MECHANISM OR FOR USE IN FLOW RATE CONTROL DEVICE INCLUDING THE FLOW RATE MEASURING MECHANISM AND RECORDING MEDIUM HAVING DIAGNOSTIC PROGRAM RECORDED THEREON FOR USE IN THE SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Apr 18, 2013
app pub date -
Oct 12, 2012
filing date -
Oct 14, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

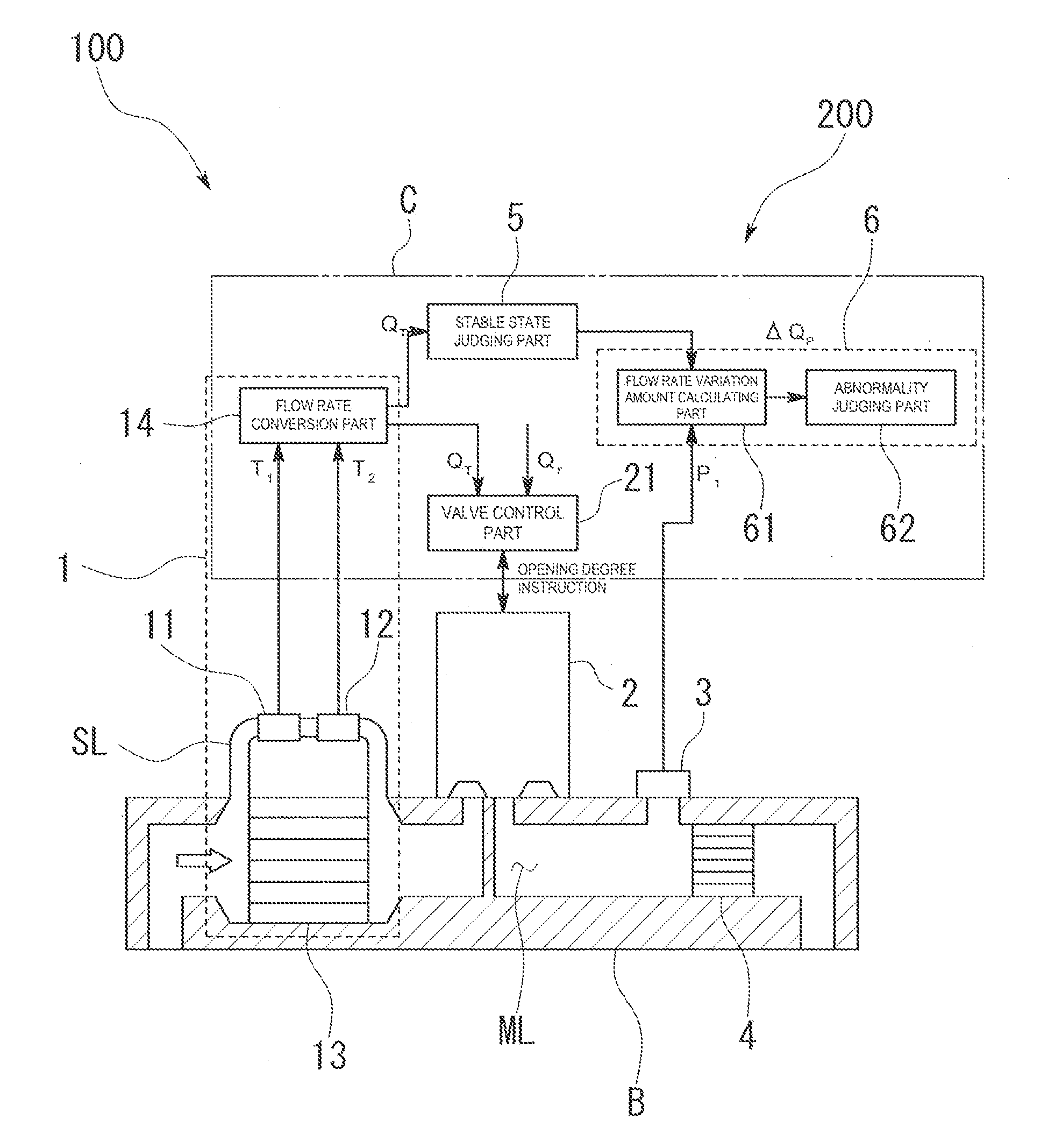

The flow rate control device is provided with: a fluid resistor provided on the flow channel; a pressure sensor provided in any one of an upstream side or a downstream side of the fluid resistor; a stable state judging part configured to judge, based on the measurement flow rate value or a measurement pressure value measured by the pressure sensor, whether or not a state of the fluid flowing through the flow channel is in a stable state; and an abnormality diagnosing part configured to diagnose an abnormality of the measurement flow rate value based on a variation amount of the measurement pressure value in the case where the stable state judging part judges that the state of the fluid is in a stable state.
First Claim
Other Claims data not available
