Abstract

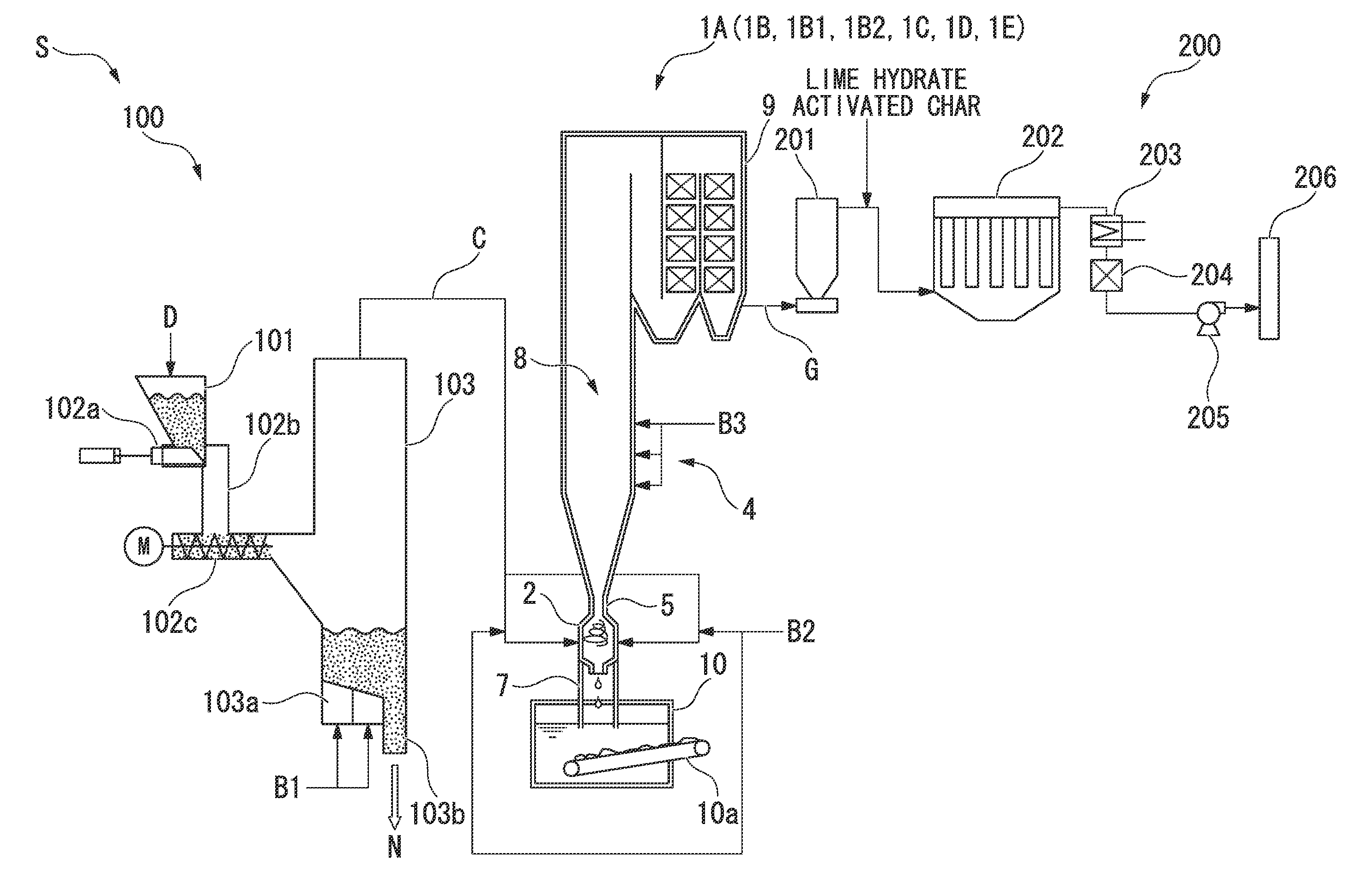

The melting equipment has a melting furnace that combusts and melts ash, a secondary combustion chamber disposed above the melting furnace, a slag extraction chute that guides slag generated in the melting furnace downward, a bypass channel (20) that connects the slag extraction chute and the secondary combustion chamber, an ejector (22) that is provided between the bypass channel (20), has a contraction portion (23) at which the channel cross sections are narrowed, and suctions the combustion exhaust gas (G) into the bypass channel (20), and an adhesion-prevention unit (31) (41) that prevent an incorporated substance that incorporates into the combustion exhaust gas (G) from attaching to the inner wall surface (21a) of the ejector (22).

First Claim
