CROSS GROOVE TYPE CONSTANT VELOCITY JOINT WITH COMPOSITE GROOVE PATTERNS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Nov 27, 2012
filing date -
Sep 18, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

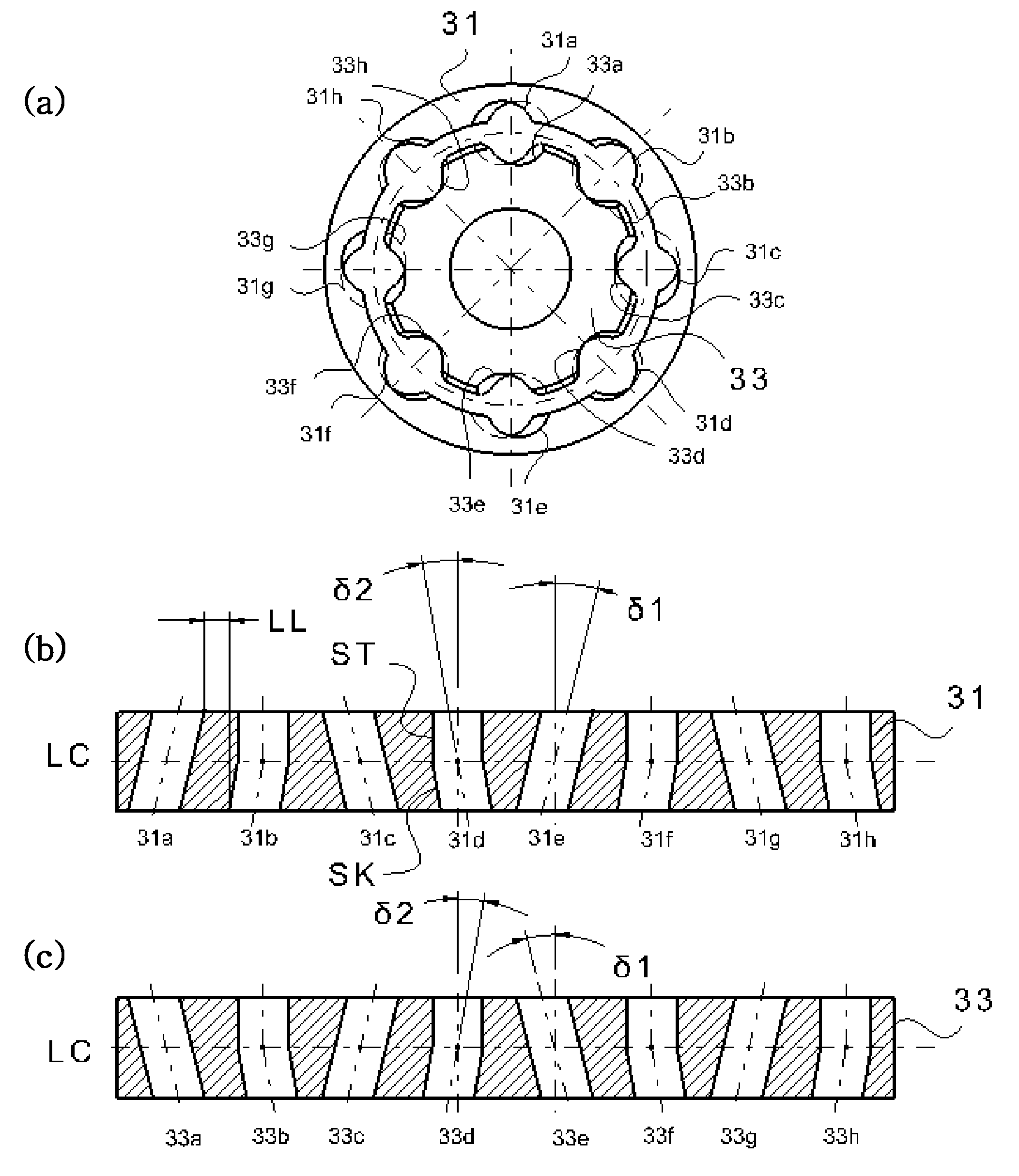

A constant velocity joint for a drive system comprises: an outer joint member having a plurality of inwardly facing outer ball grooves, the outer ball grooves consisting of a first group of grooves and a second group of grooves with composite or non-linear groove pattern; an inner joint member disposed inside the outer joint member and having a plurality of outwardly facing inner ball grooves consisting of a first group of grooves and a second group of grooves with composite or non-linear groove pattern, each inner ball groove of the inner joint member being coupled with a corresponding outer ball groove of the outer joint member generally in crossed pair.
First Claim
Other Claims data not available
