DEBRIS FLOW DRAINAGE CANAL BASED ON CASCADE ANTISCOUR NOTCHED SILL GROUP AND APPLICATION THEREOF
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Mar 28, 2013
app pub date -
Jun 10, 2011
filing date -
Jun 11, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

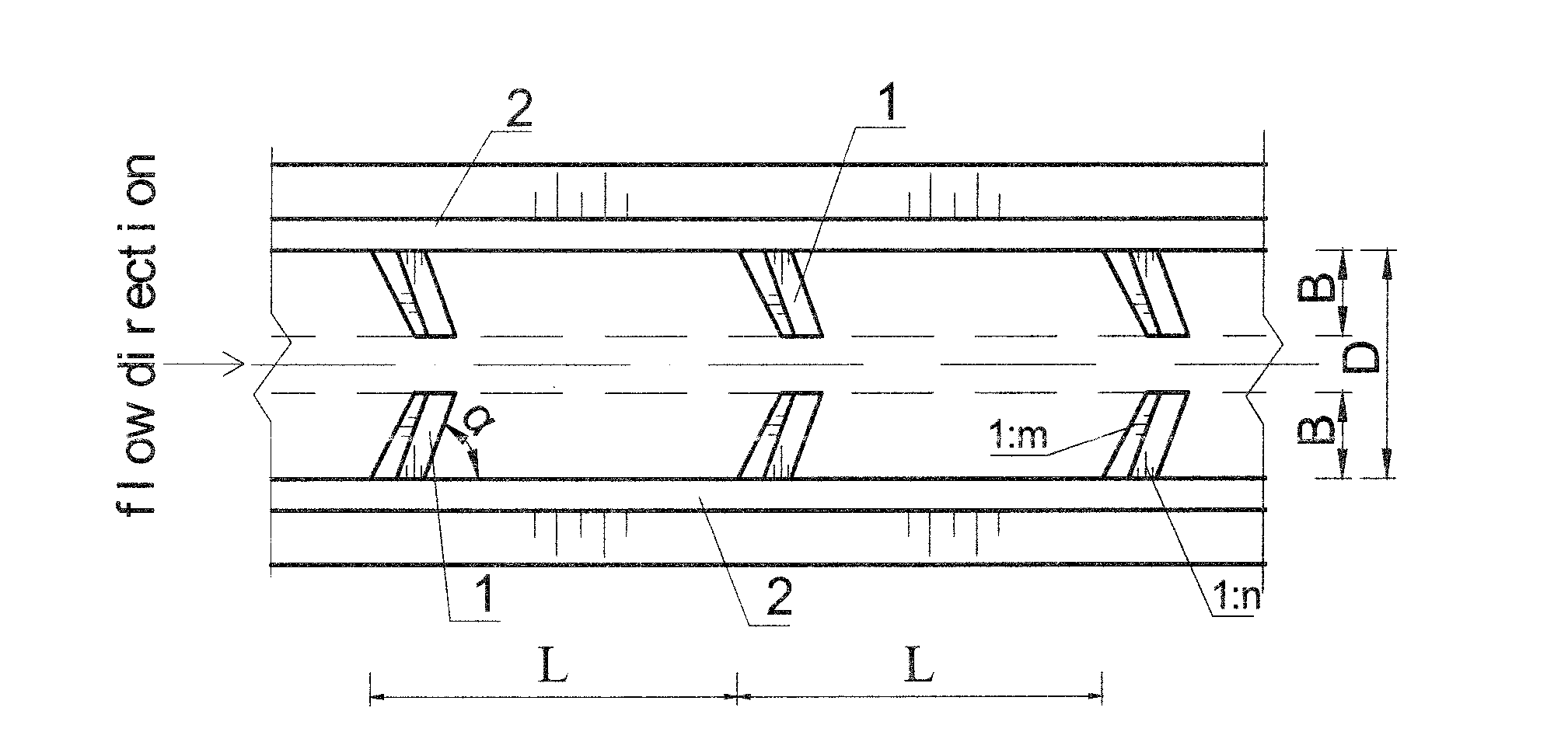

A system of debris-flow drainage canal with cascaded sills is provided, which allows a high-efficient and low-cost realization of debris flow drainage and scour prevention. The canal contains two converging walls and a series of scour prevention sills, which are laid between the two converging walls. The sills are embedded to a certain depth and are evenly spaced and symmetrical to the centre line of the canal to form a cascaded structure for scour prevention. The drainage canal's width is 2 times wider than the sill's horizontal length along the cross-section. Compared with the prior art, this system can drain off a wide variety of flows from debris flow to flood and prevent debris-flow siltation even on a gentle slope. This system has a much higher stability and longer life of service. Moreover, this system can maintain the aquatic habitat in gullies and contribute to ecological restoration.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- E02B Class
- 191 Applications Filed
- 151 Patents Issued To-Date
- 79.06 % Issued To-Date
