Electrostatic shielding technique on high voltage diodes
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 16, 2014
Issued Date -
N/A
app pub date -
Sep 19, 2011
filing date -
Sep 19, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

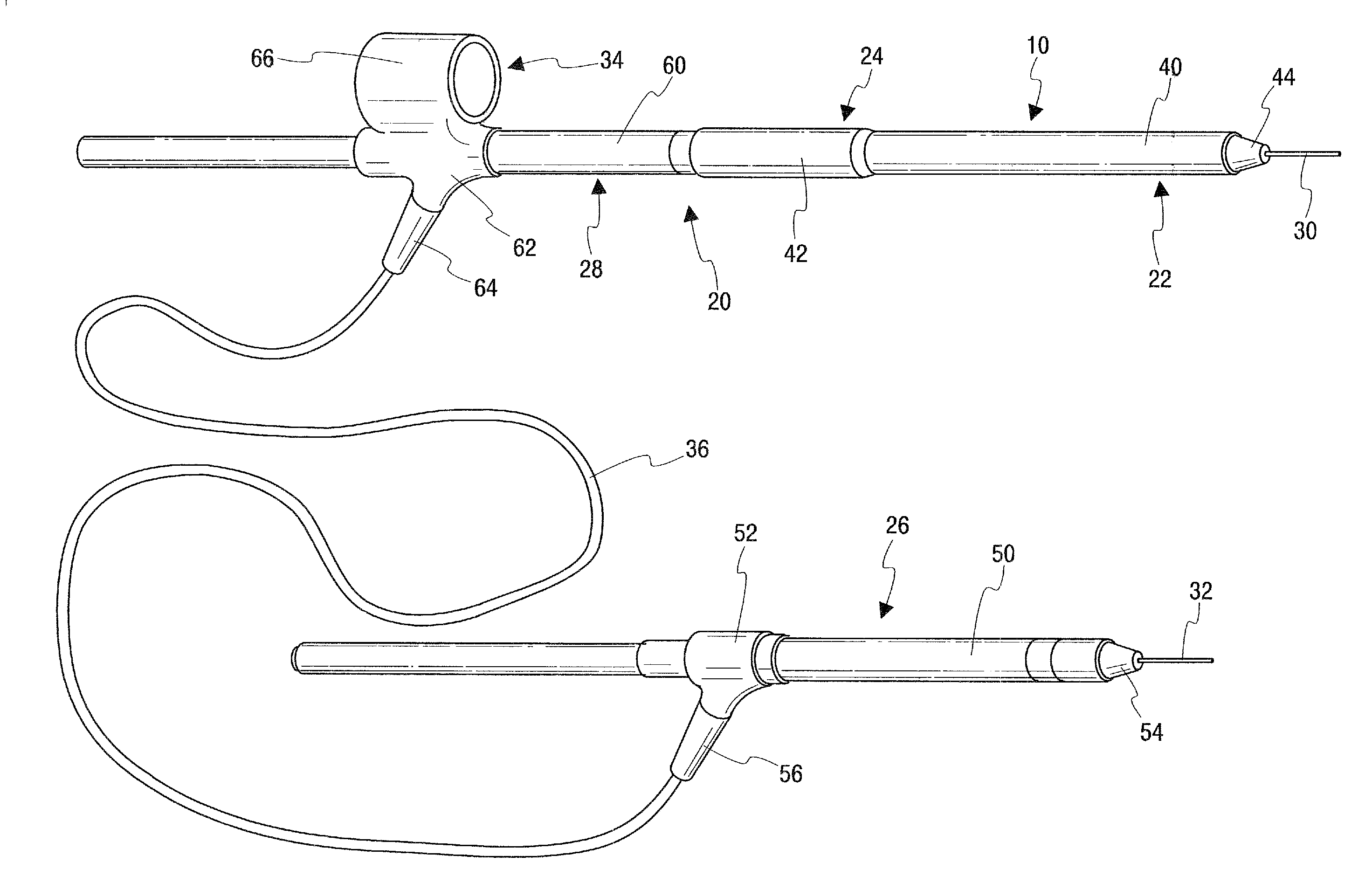

A DC high potential testing meter comprises first and second probes. The first probe comprises an insulated shield supporting an electrode extending from a distal end of the shield. A high voltage resistor and a high voltage diode in the shield are connected in series with the electrode. A capacitance formed by a metallic collar across the high voltage diode provides uniform voltage distribution along the high voltage diode. The second probe comprises an insulated shield supporting an electrode. A high voltage resistor in the shield is connected in series with the electrode. A meter comprises a housing enclosing an electrical circuit for measuring voltage across the electrodes and provides an output representing measured voltage.
