FLUID CONTROL APPARATUS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 28, 2013
app pub date -
Aug 28, 2012
filing date -
Aug 30, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

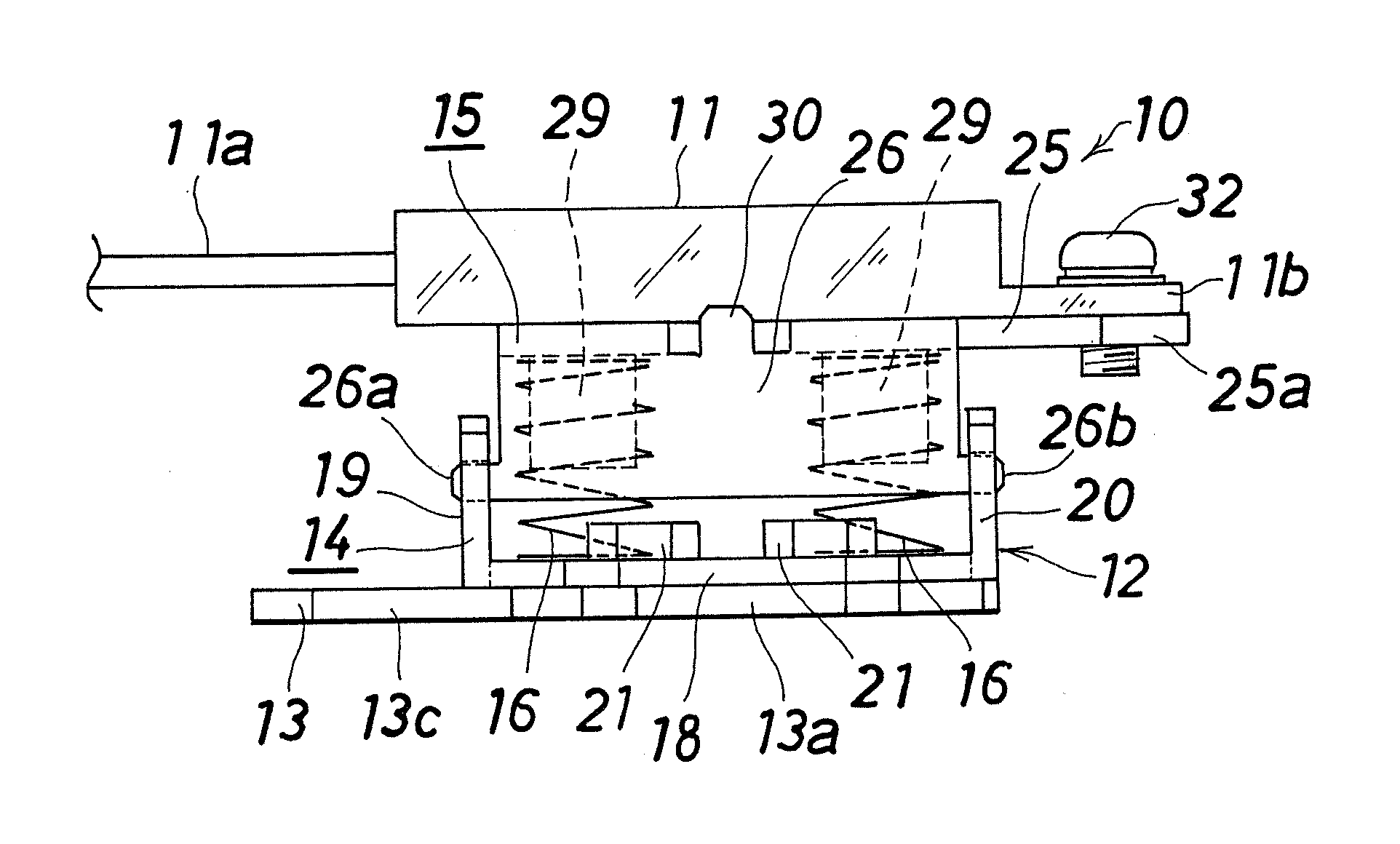

A space S is formed between a fluid control device 6 requiring temperature measurement and a support member 9. A thermostat unit 10 is arranged in the space S, and a thermostat 11 is allowed to abut on the fluid control device 6 requiring the temperature measurement. The thermostat 11 is supported by an attachment jig 12 attached to the support member 9. The attachment jig 12 is made up of a first jig 13 fixed to the support member 9, a second jig 14 fixed to the first jig 13, and a third jig 15 shiftably attached to the second jig 14 and to which the thermostat 11 is fixed. A biasing member is interposed between the first jig 13 and the third jig 15.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G05D Class
- 10.66 % this patent is cited more than
- 12 Age
