WATER TREATMENT SYSTEM WITH SEALING ENCLOSURE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 28, 2013
app pub date -
Aug 22, 2011
filing date -
Aug 22, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

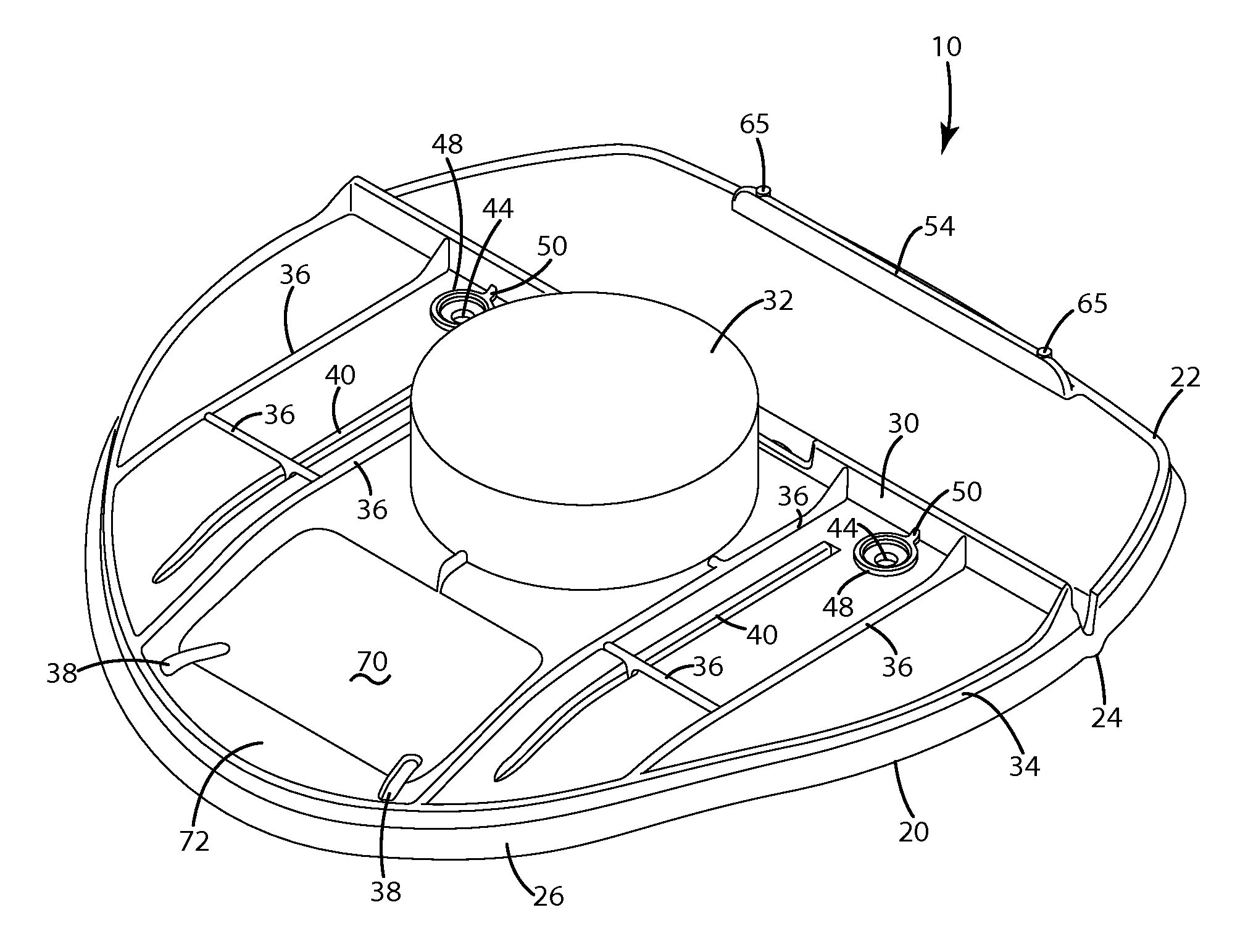

A water treatment system having a sealing enclosure for separating an electronics module from a water treatment assembly within the housing of the water treatment system. The sealing enclosure is a one-piece component having a perimeter seal that extends continuously around the periphery of the sealing enclosure. The perimeter seal is configured to directly engage the housing to automatically create a seal as the sealing enclosure is installed in the housing. The sealing enclosure includes a stationary portion and a movable portion joined along a living hinge. The movable portion covers an accessible compartment and can be selectively swung open about the living hinge to provide access to the interior of the accessible compartment, for example, to replace the batteries. The movable portion can be closed to reengage the housing and reestablish the seal. The electronics module may include an electronic components mounting bracket. The sealing enclosure may be mounted to the bracket. The sealing enclosure may be configured to interfit with support features in the bracket.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- B01D Class
- 7.73 % this patent is cited more than
- 12 Age
