Slag remover for discharging combustion residues of an incineration plant
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Mar 3, 2015
Grant Date -
Feb 28, 2013
app pub date -
Aug 14, 2012
filing date -
Aug 25, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

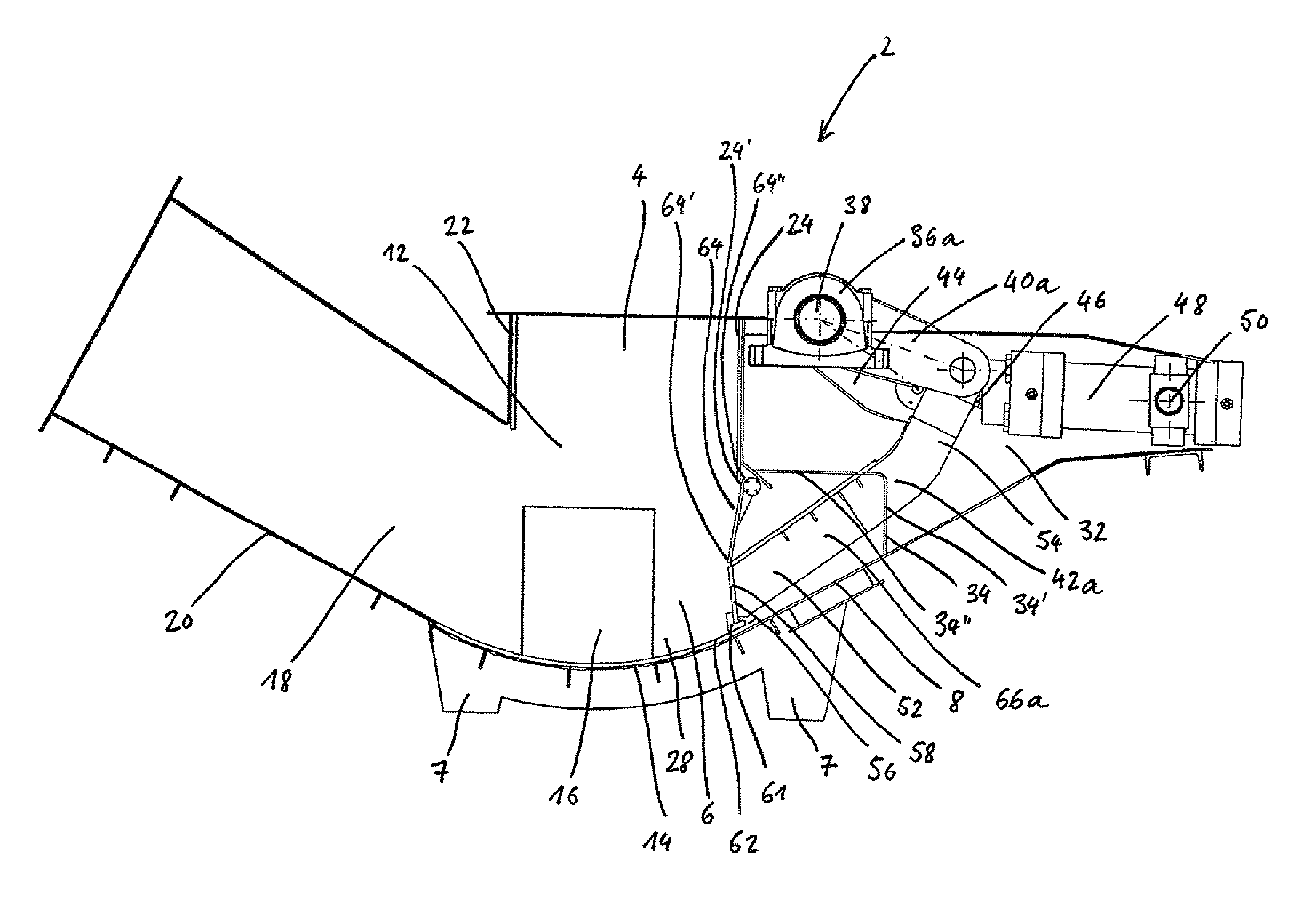

A slag remover for discharging combustion residues of an incineration plant comprises a trough, which has a trough housing having two side walls, which define the trough width, and having a trough bottom, and which is intended to collect the combustion residues evacuated from a combustion chamber of the incineration plant. The trough further comprises at least two push rams for pushing the combustion residues out of the trough, and a shaft rotatably mounted in two shaft bearings and on which at least one drive lever cooperating with a cylinder-piston unit and at least two output levers connected to respectively one of the push rams are disposed in a rotationally secure manner. The cylinder-piston unit is here designed such that the push rams move back and forth between a retracted position and an extended position. The drive lever is disposed between two output levers.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- F23J Class
- 80 Applications Filed
- 59 Patents Issued To-Date
- 73.75 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23J Class
- 0 % this patent is cited more than
- 10 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Sep 3, 2026 |
