LOUVERED GRILL
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 7, 2013
app pub date -
Mar 15, 2011
filing date -
Apr 19, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

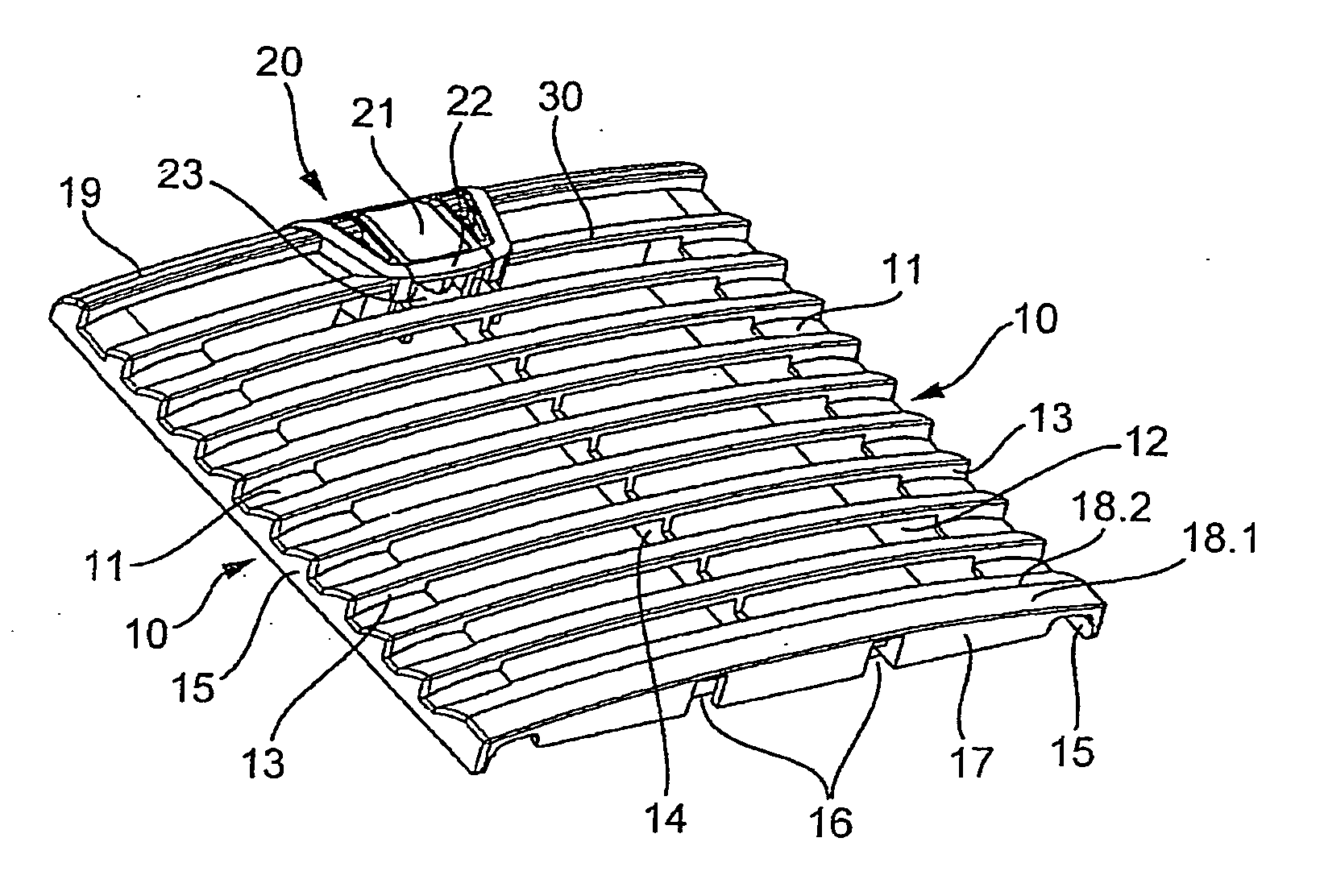

The invention relates to a louvered grille for an air conduction housing, comprising a plurality of louvers which are spaced apart from one another to form air passage openings, wherein the louvers extend in the widthwise direction of the louvered grille and have an upper louver face that is directed to the exterior and inclined transversely with respect to the vertical direction of the louvered grille. For better IP protection of such a louvered grille, according to the invention the upper louver face of at least some of the louvers has a convex curvature in at least some areas of the louvers, both in the widthwise direction of the louvered grill and in the vertical direction of the louvered grille.
First Claim
Other Claims data not available
