Load leveling modification for front loading refuse truck
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 14, 2014
Grant Date -
Feb 7, 2013
app pub date -
Jul 31, 2012
filing date -
Aug 1, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

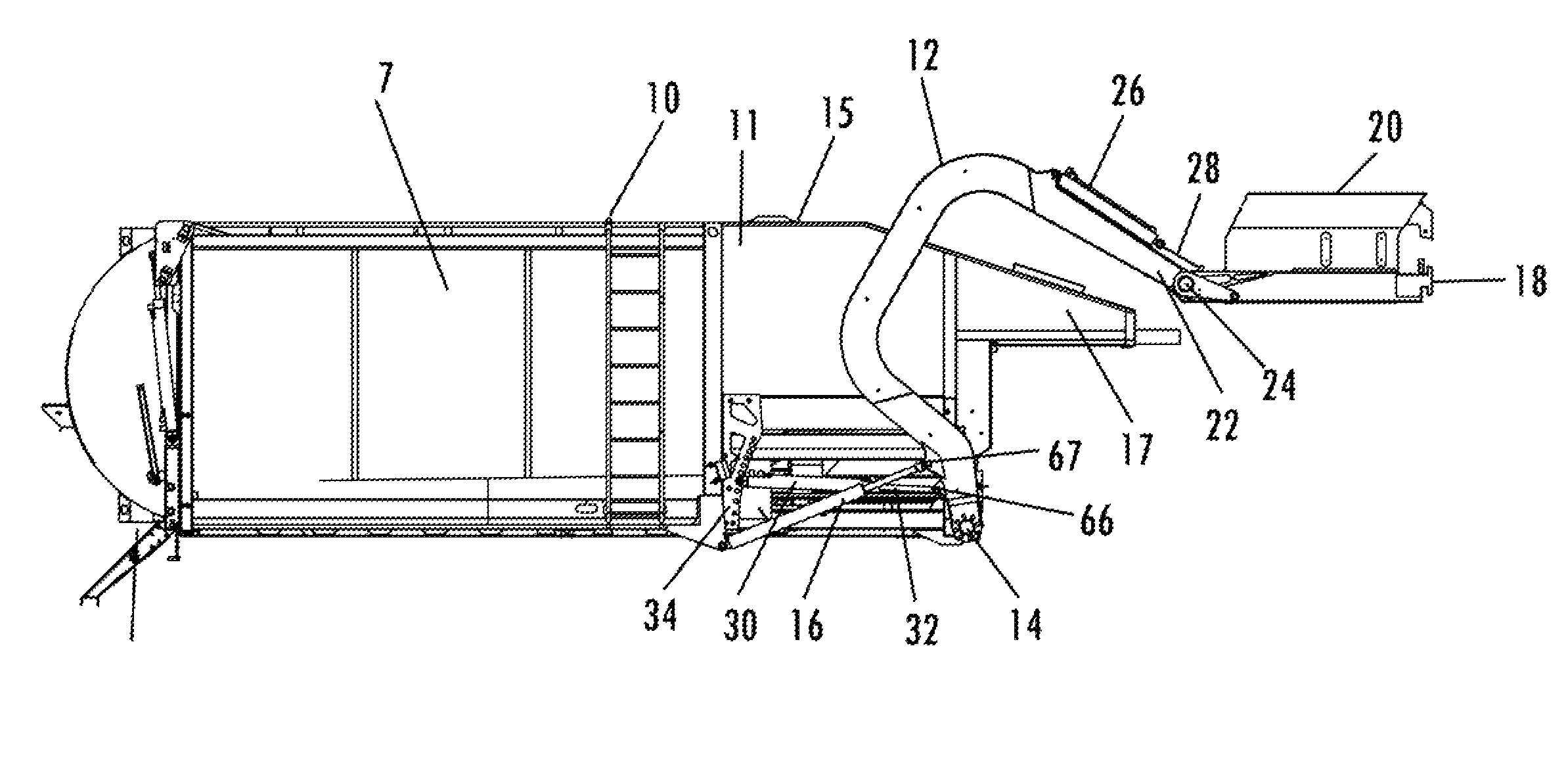

A modification apparatus to convert an existing front loading refuse collection truck so that the lifted container remains level until the container is near the load opening of the refuse collection body of the truck. A mounting plate is bolted to brackets added to an existing refuse collection body and provides multiple connection points for attachment of one end of a slave cylinder that is hinged at its other end to one of the main lift arms of the collection body. As the rod of the slave cylinder extends or retracts with the movement of the lift arm, hydraulic fluid from the slave cylinder passes to fork cylinders which retract or extend to control the orientation of the lifted container relative to the lift arms. The apparatus can be easily added to a variety of existing front loading collection bodies.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B21K Class
- 166 Applications Filed
- 123 Patents Issued To-Date
- 74.10 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B21K Class
- 19.18 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 14, 2026 |
