Method and Device for Producing Methanol
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Feb 7, 2013
app pub date -
Sep 14, 2011
filing date -
Aug 2, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

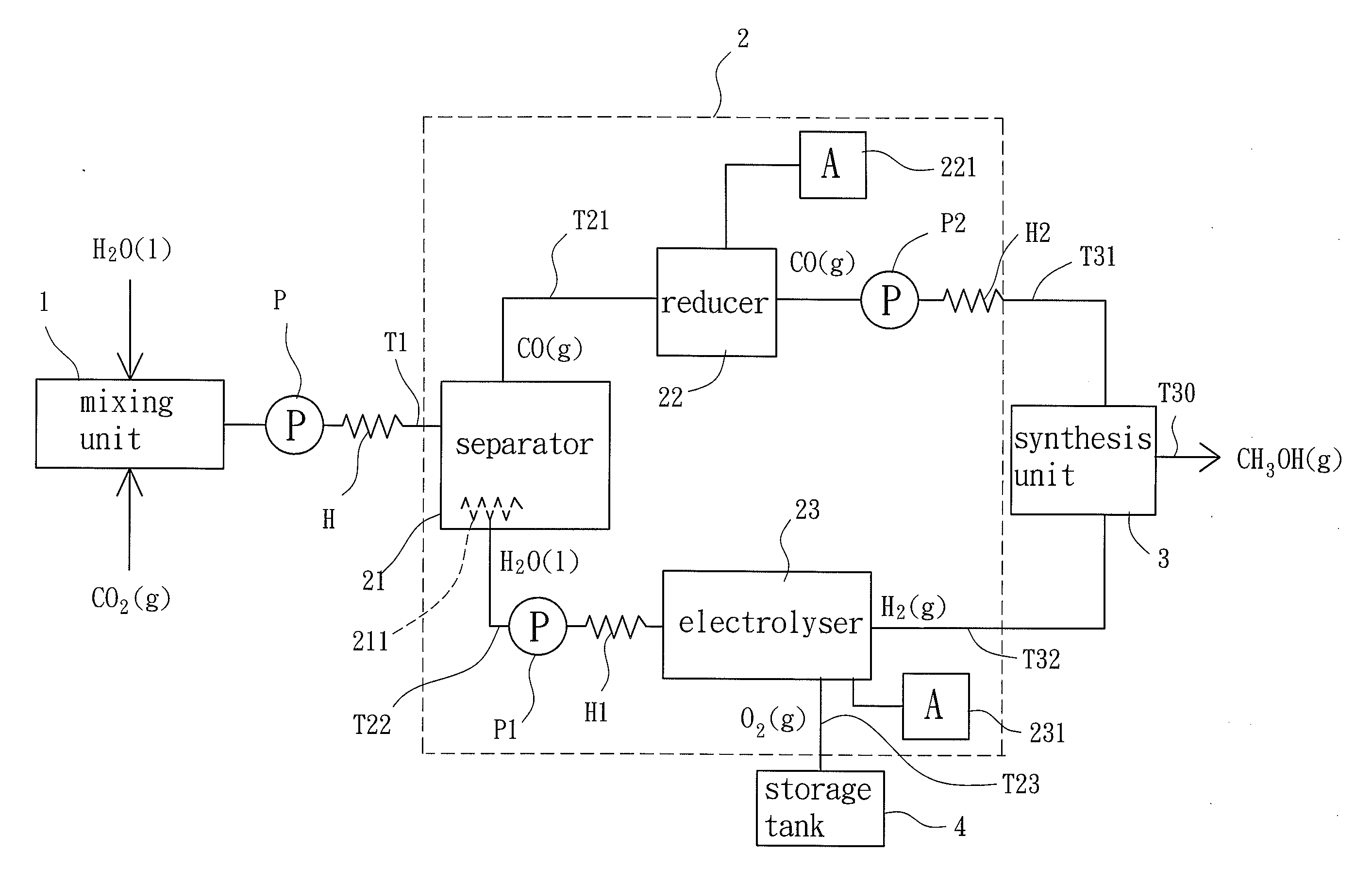

A method for producing methanol includes dissolving carbon dioxide in water to obtain a two-phase coexistence aqueous solution that is pressurized and heated to a critical state to separate critical state carbon dioxide and critical water. The critical state carbon dioxide is reduced to critical state carbon monoxide. The critical water is electrolyzed to obtain super critical state hydrogen and super critical state oxygen. The critical state carbon monoxide reacts with the super critical state hydrogen to produce methanol. Furthermore, a device for producing methanol is also provided in the present invention, comprising a mixing unit, a conversion unit and a synthesis unit, and which is highly effective in producing methanol and frugal in energy use.
First Claim
Other Claims data not available
