GOLF CART FOLDING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 31, 2013
app pub date -
Jul 29, 2011
filing date -
Jul 29, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

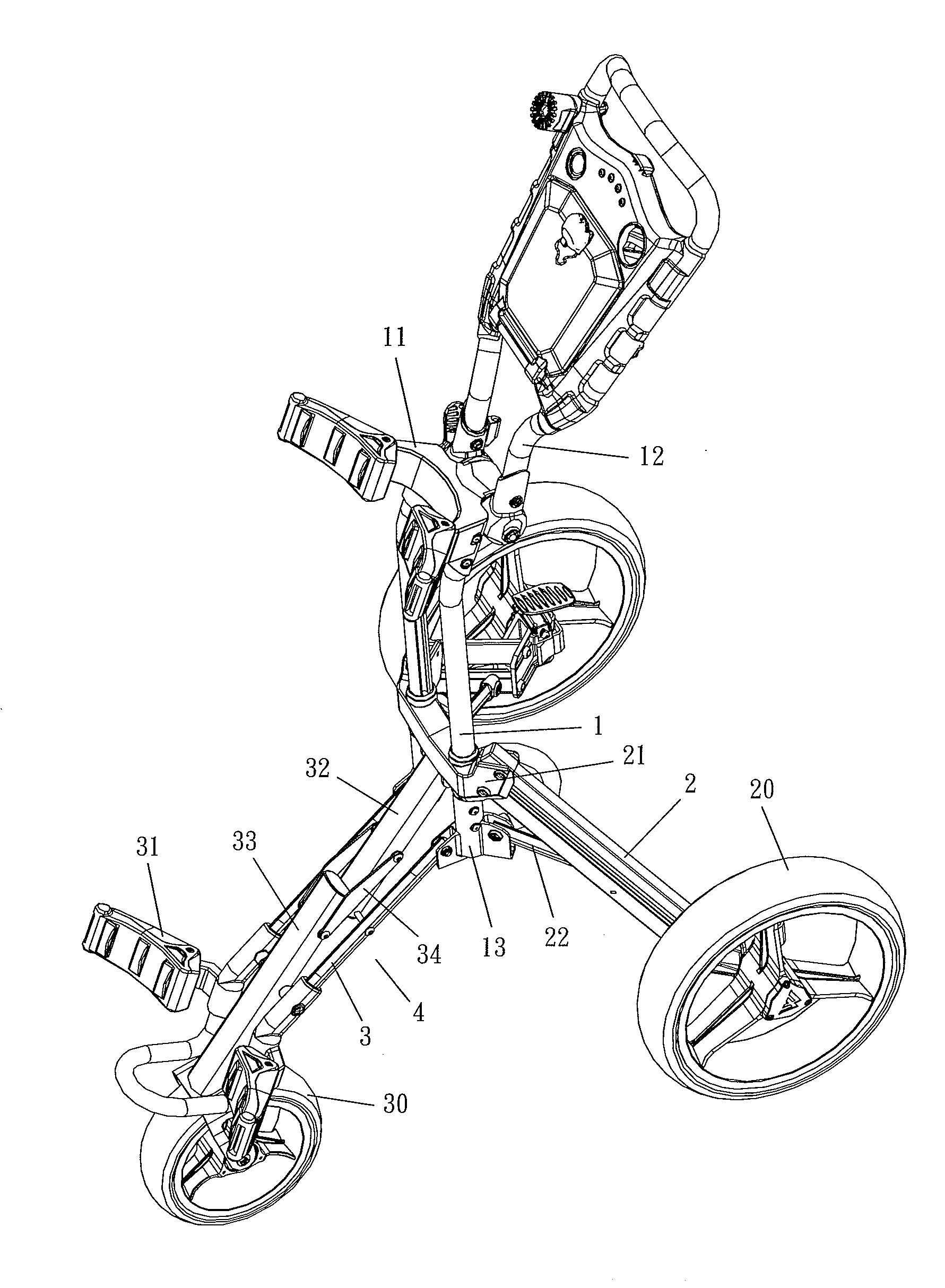

A golf cart folding device comprises an upper frame having a handle tube at an upper end of the upper frame; a rear wheel stand coupled to the upper frame by a connecting plate, and having a rear wheel at a lower end of the rear wheel stand; a pull rod coupled to the upper frame and the rear wheel stand; a lower frame, coupled to the upper frame, and having a front wheel at a lower end of the lower frame; and a link rod mechanism between the upper and lower frames for drawing the lower frame and the front wheel together towards the rear wheel by the linking of the link rod mechanism when a golf cart is folded, so as to achieve the effects of skipping a step of folding the front wheel, preventing making a user's body or cloth dirty, and providing a simple and easy operation.
First Claim
Other Claims data not available
