Drop Cable with Fiber Ribbon Conforming to Fiber Passage
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 24, 2013
app pub date -
Jul 23, 2012
filing date -
Jul 21, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

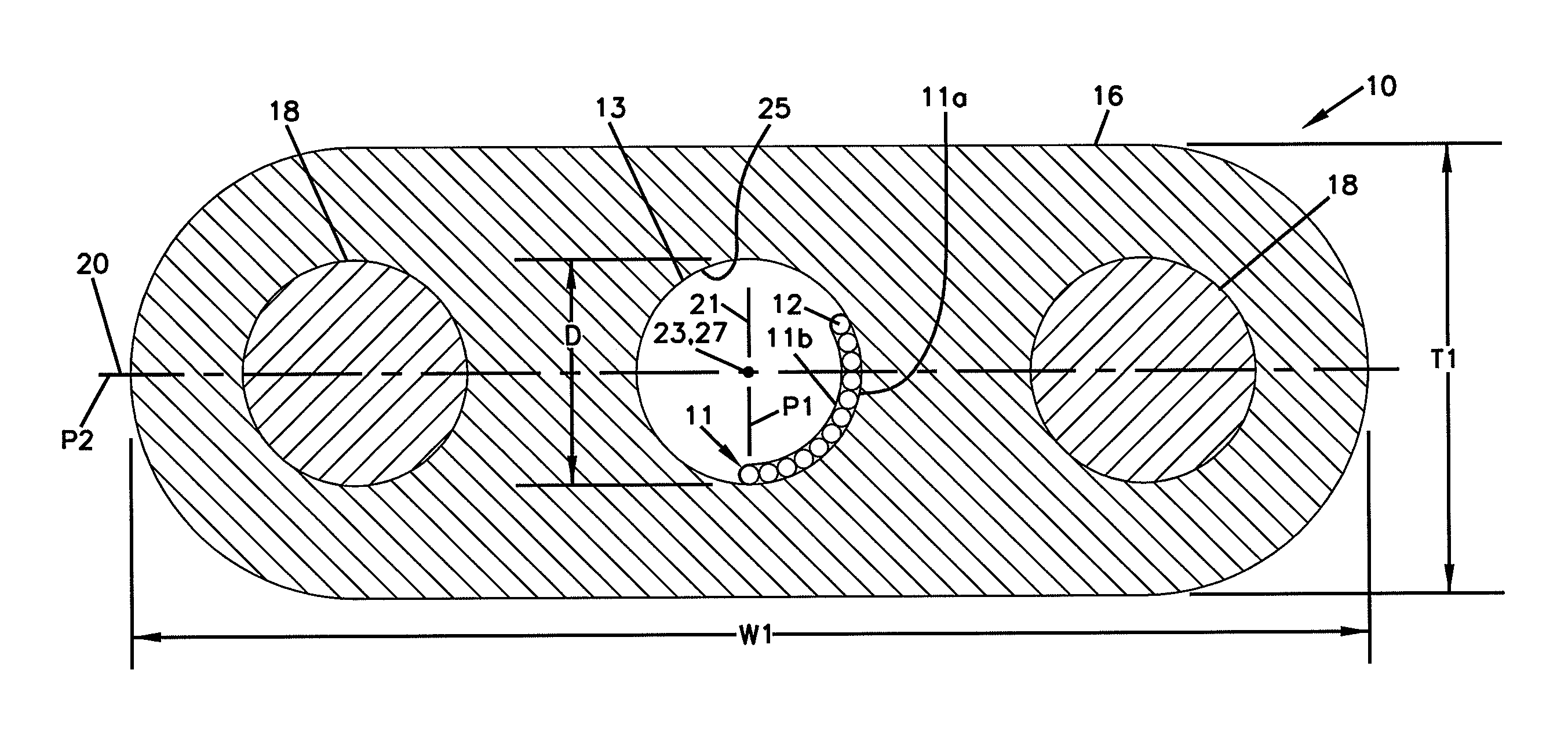

A fiber optic cable includes an outer jacket, an optical fiber ribbon, and strength members. The outer jacket has an elongated transverse cross-sectional profile that defines a major axis and a minor axis. The outer jacket also defines a central fiber passage that extends through the outer jacket along a lengthwise axis of the outer jacket. The optical fiber ribbon is positioned within the central fiber passage. The optical fiber ribbon has a flattened width that is larger than the central fiber passage. The optical fiber ribbon curves along the widthwise orientation of the optical fiber ribbon so as to conform generally to an arc defined by a circumference of the central fiber passage. The optical fiber ribbon is arranged in a helical pattern within the central fiber passage.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G02B Class
- 3.98 % this patent is cited more than
- 12 Age
