THRUSTER DEVICES AND METHODS OF MAKING THRUSTER DEVICES FOR USE WITH THRUST VECTOR CONTROL SYSTEMS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 24, 2013
app pub date -
Jul 21, 2011
filing date -
Jul 21, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

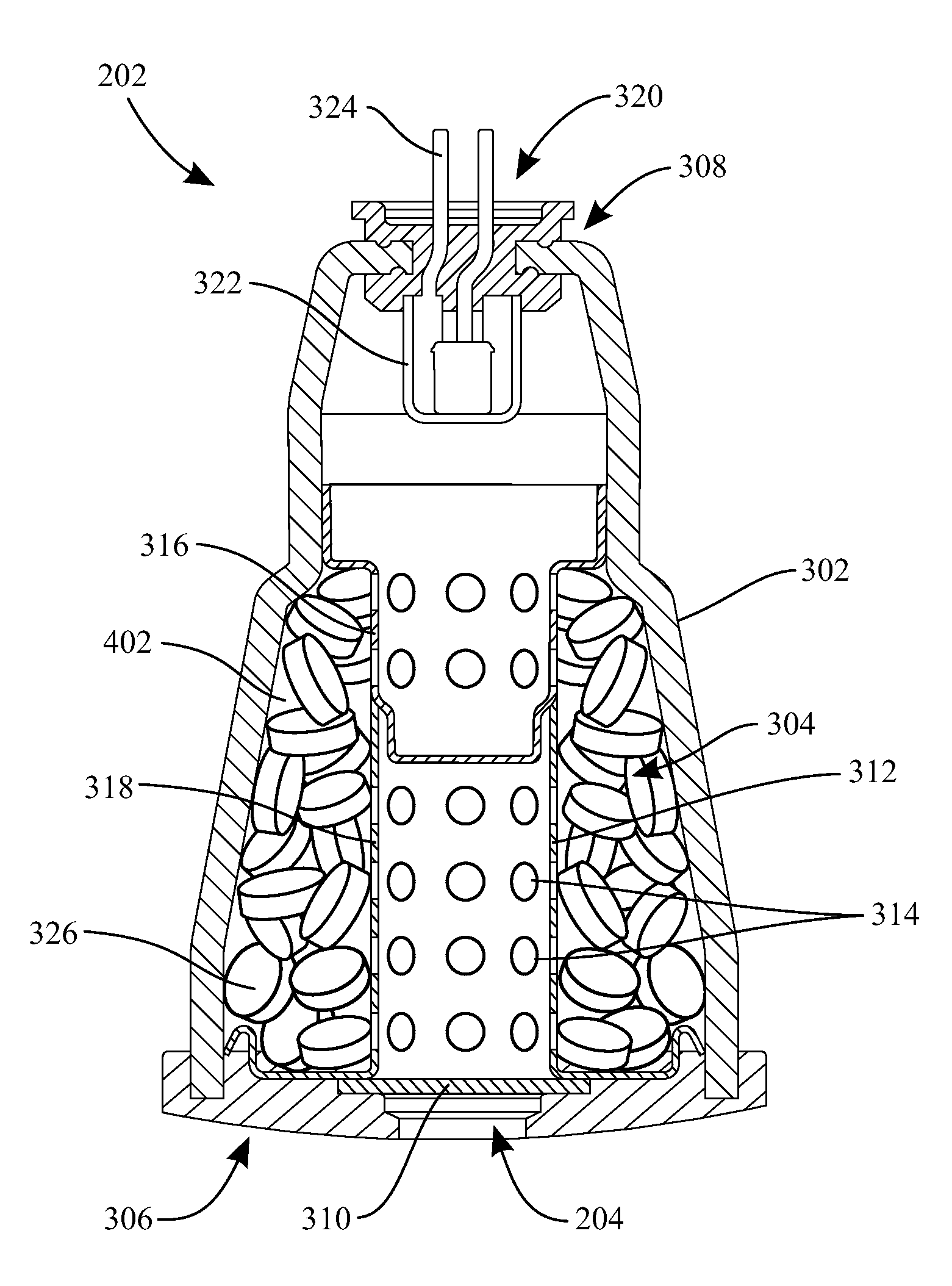

Thruster devices for use with a lateral thrust module and/or a flight body are adapted to achieve short action times with relatively slow burning propellant materials. Such thruster devices include a combustion chamber with a plurality of propellant grains disposed therein. At least some of the plurality of propellant grains are formed into a selected shape. Methods of making thruster devices include forming a housing comprising a first longitudinal end and an opposing second longitudinal end. The housing is formed to define a combustion chamber. A plurality of propellant grains are disposed in the combustion chamber of the housing, where each propellant grain comprises a selected shape. An igniter is coupled to the housing, which igniter is adapted to initiate a combustion of the plurality of propellant grains during deployment of the thruster device.
First Claim
Other Claims data not available
