THREE-DIMENSIONAL NETWORK ALUMINUM POROUS BODY, ELECTRODE USING THE ALUMINUM POROUS BODY, AND NONAQUEOUS ELECTROLYTE BATTERY, CAPACITOR AND LITHIUM-ION CAPACITOR WITH NONAQUEOUS ELECTROLYTIC SOLUTION, EACH USING THE ELECTRODE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jul 2, 2012
filing date -
Feb 18, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

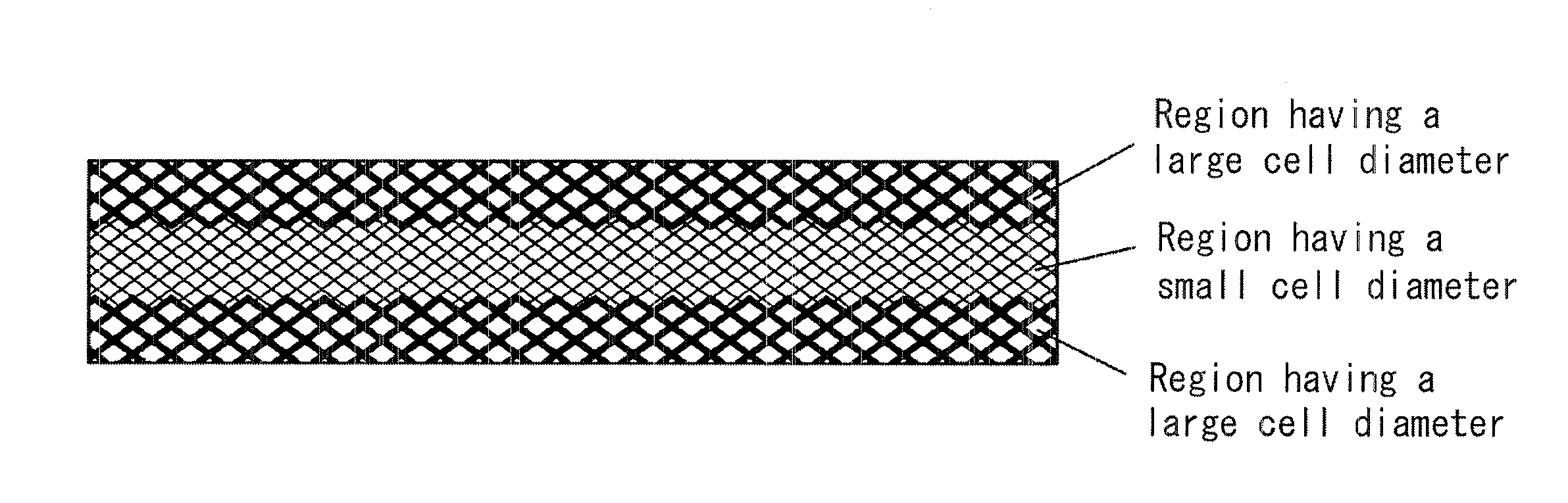

The present invention provides a three-dimensional network aluminum porous body in which the cell diameter of the three-dimensional network aluminum porous body is uneven in the thickness direction, and a current collector and an electrode respectively using the aluminum porous body, and a production method thereof. That is, such a sheet-shaped three-dimensional network aluminum porous body for a current collector has a cell diameter uneven in the thickness direction. Particularly, it is preferred that when a cross section in the thickness direction of the three-dimensional network aluminum porous body is divided into three regions of a region 1, a region 2 and a region 3 in this order, the average of the cell diameter in the region 1 and the cell diameter in the region 3 differs from the cell diameter in the region 2.
