METAL NANOINK AND PROCESS FOR PRODUCING THE METAL NANOINK, AND DIE BONDING METHOD AND DIE BONDING APPARATUS USING THE METAL NANOINK
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 21, 2012
filing date -
Aug 1, 2008
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

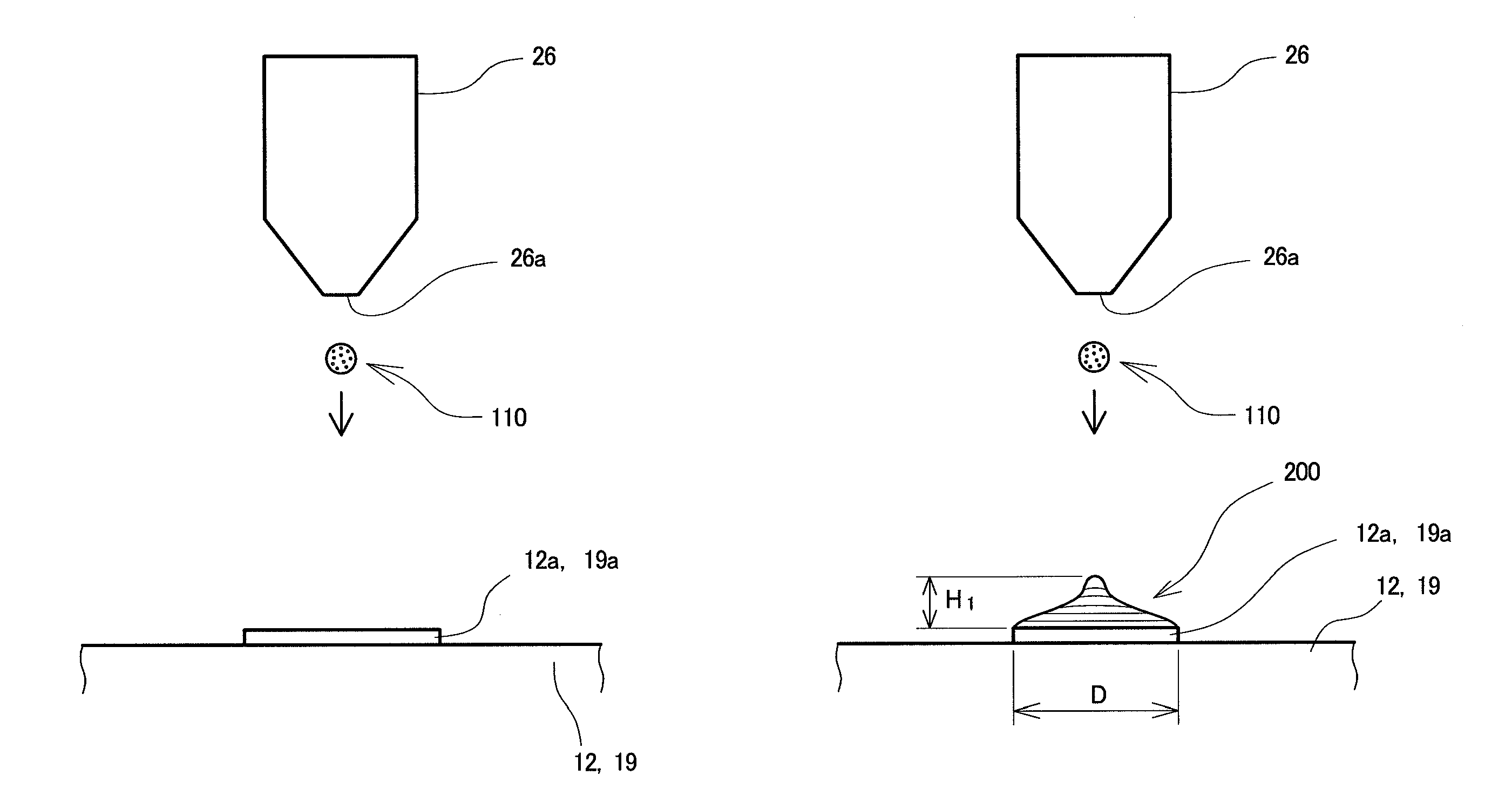

Metal nanoink for bonding an electrode of a semiconductor die and an electrode of a substrate and/or bonding an electrode of a semiconductor die and an electrode of another semiconductor die by sintering under pressure is produced by injecting oxygen into an organic solvent in the form of oxygen nanobubbles or oxygen bubbles either before or after metal nanoparticles whose surfaces are coated with a dispersant are mixed into the organic solvent. Bumps are formed on the electrode of the semiconductor die and the electrode of the substrate by ejecting microdroplets of the metal nanoink onto the electrodes, the semiconductor die is turned upside down and overlapped in alignment over the substrate, and then, the metal nanoparticles of the bumps are sintered under pressure by pressing and heating the bumps between the electrodes. As a result, generation of voids during sintering under pressure is minimized.
First Claim
Other Claims data not available
