Amorphous Core Annealing Method
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Jan 3, 2013
app pub date -
Jan 18, 2011
filing date -
Feb 4, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

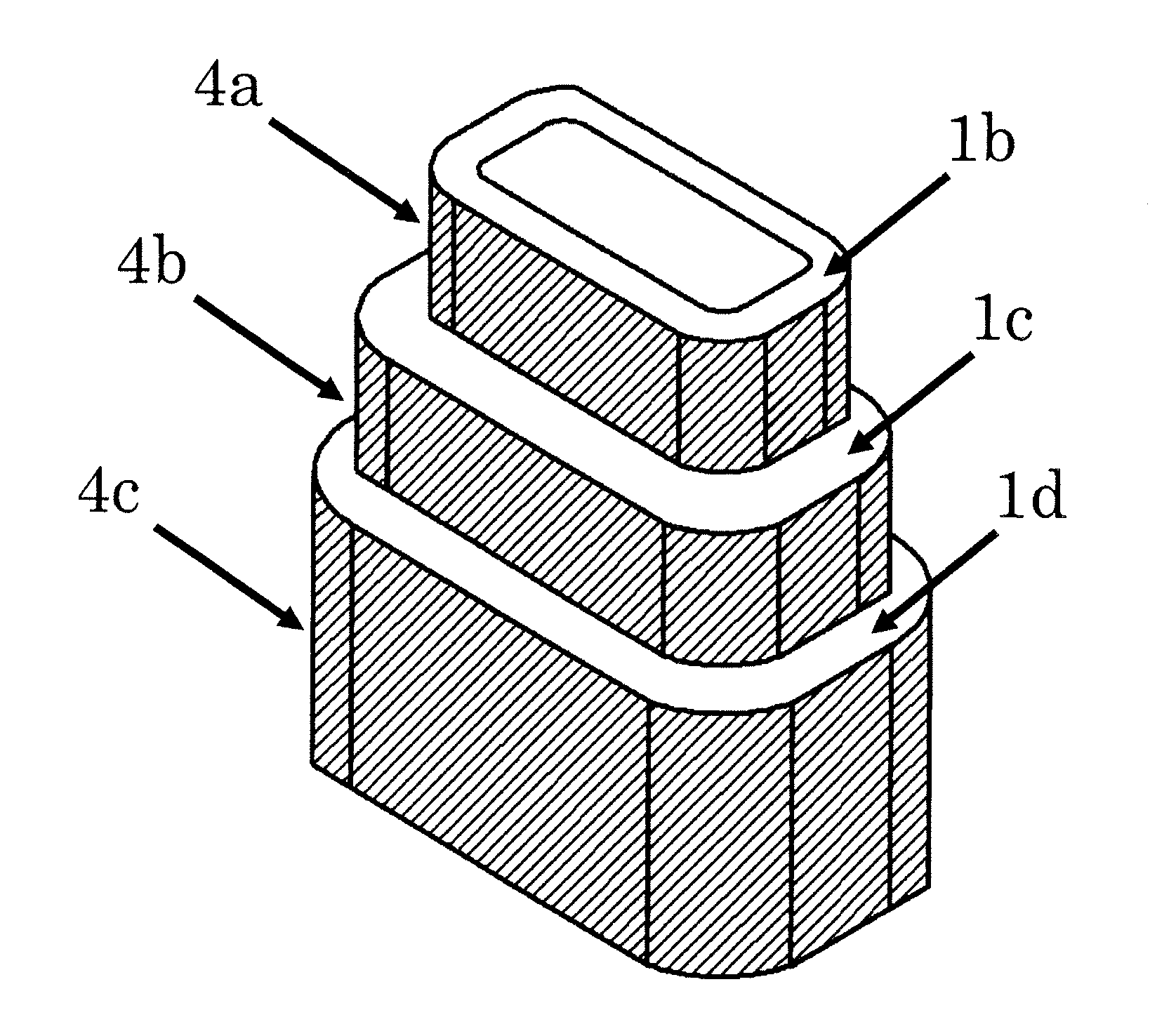

There is provided an amorphous core annealing method in which the annealing temperature distribution within an iron core is regulated so that deterioration in the magnetic properties, which is caused by unevenness of the annealing temperature within the core, can be suppressed, and the annealing time can be shortened. In order to regulate the annealing temperature distribution within the amorphous core at the annealing time, a heater functioning as a heat source is held between laminated thin-film amorphous materials of an iron core, and annealing is performed. By uniformly regulating the annealing conditions within the core, deterioration in the magnetic properties, which is caused by unevenness of annealing, can be suppressed to a minimum. Also, an iron core of a special specification, for example, a core having a low core loss, or a core having a high magnetroresistance, can be manufactured by using different annealing conditions within the iron core.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2011 Application Filing Year
- C21D Class
- 367 Applications Filed
- 305 Patents Issued To-Date
- 83.11 % Issued To-Date
