Method and Device for Selectively Tipping Objects
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 27, 2012
app pub date -
Jan 31, 2011
filing date -
Feb 1, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

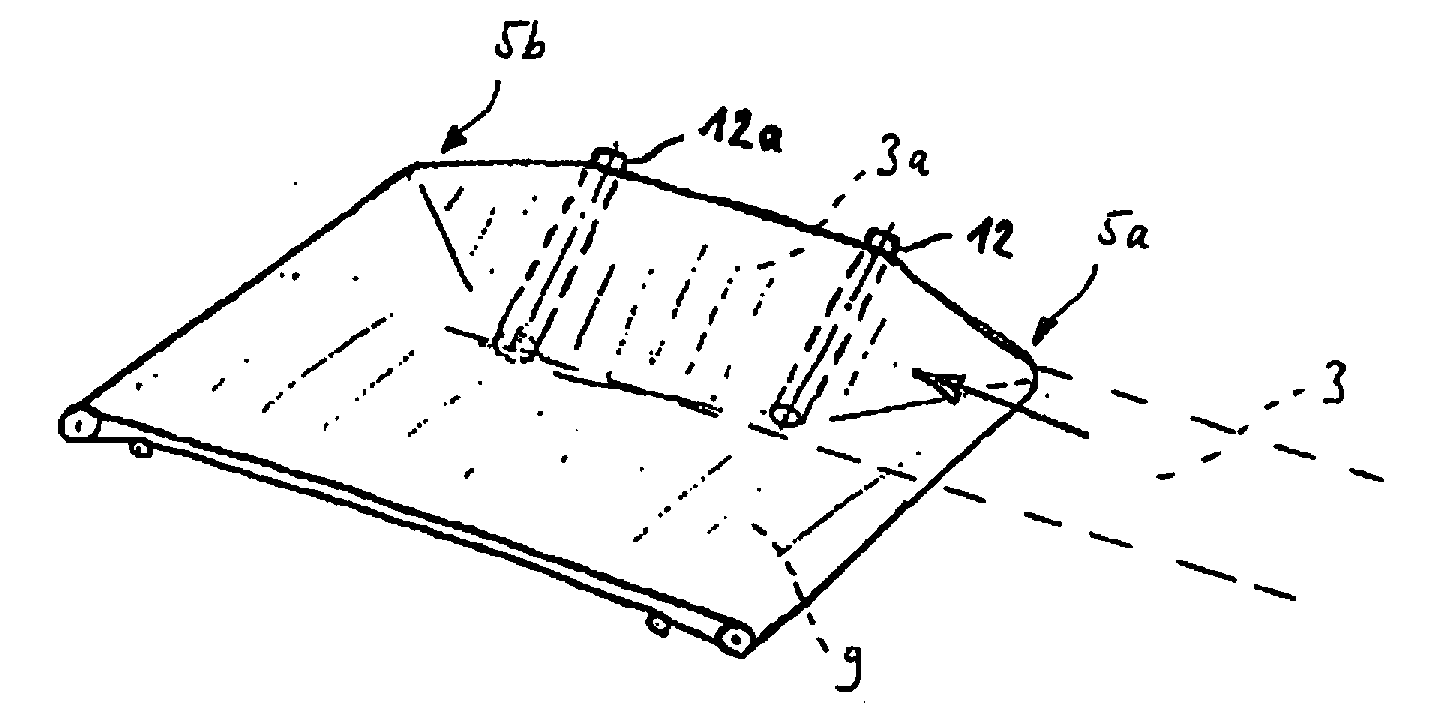

An apparatus for selectively tipping over an article with a standing surface, when it is standing on a conveying surface extending in a longitudinal direction and being moved in the longitudinal direction, onto a lateral surface, wherein over at least 90% of its width, the conveying surface, proceeding from an initial orientation, passes over into a tilting region which extends from a starting position in the longitudinal direction as far as a final position, at which the conveying surface has an angle of inclination transverse to the longitudinal direction which is at least 5° and no more than 30° to the horizontal. Also a method for selectively causing a gravity-induced process for tipping an article from a standing surface on which the article is being moved in a longitudinal direction on a conveying surface extending in the longitudinal direction onto a lateral surface.
First Claim
Other Claims data not available
