Systems and Methods for Making Panels from Sheet Material Using Adaptive Control
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 14, 2011
filing date -
Jun 14, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

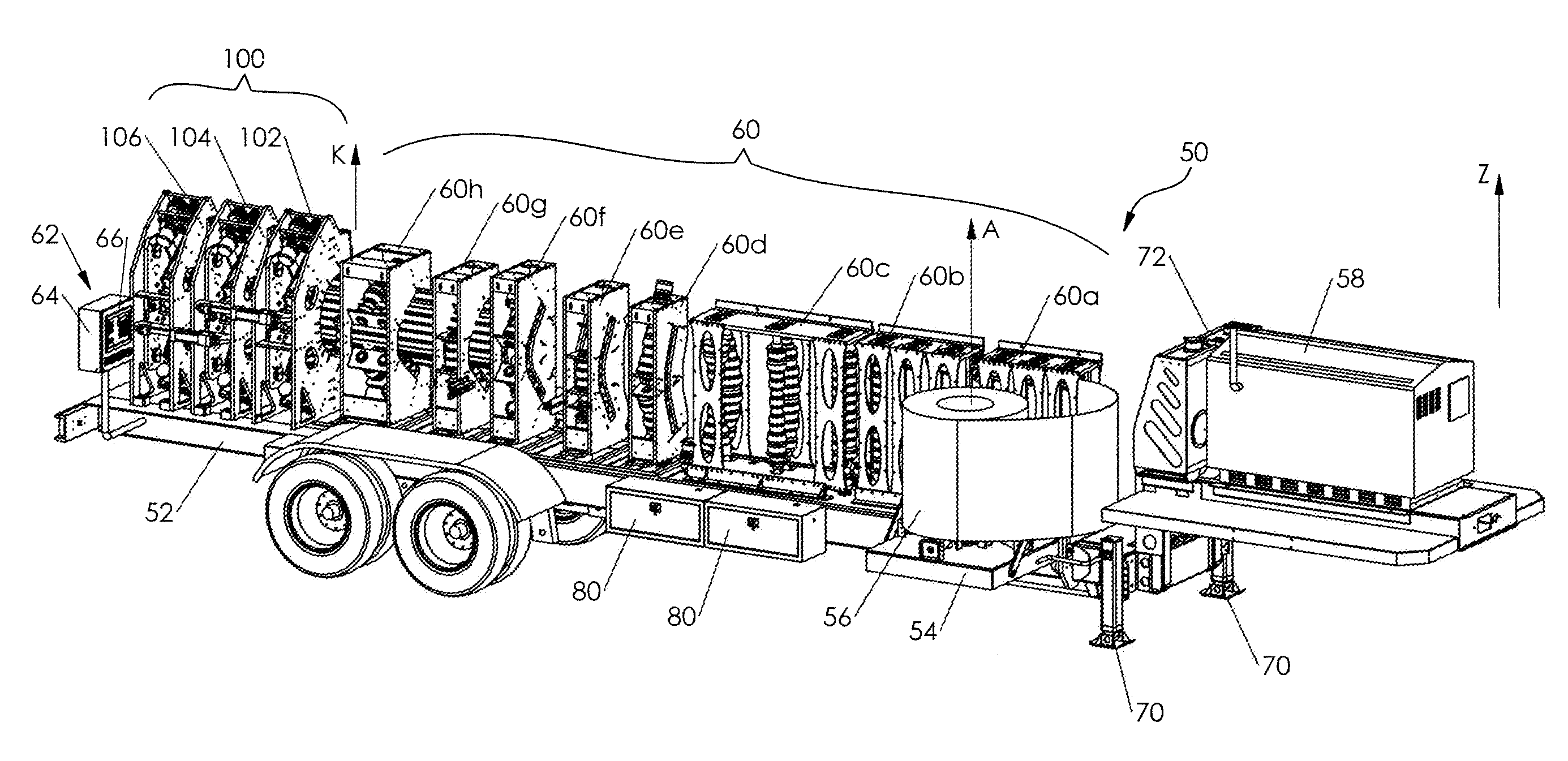

A system for forming a building panel of a desired shape includes a shaping machine comprising multiple rollers, wherein the shaping machine is configured to provide a desired shape to a building panel, and wherein the building panel is made from sheet material. A drive system moves the building panel longitudinally along the shaping machine, and a power source provides power to the drive system. As the building panel is moved along the shaping machine, a load sensor detects a load placed on the power source, and an optional speed sensor detects a speed of the building panel. A control system controls the drive system in response to a signal from the load sensor so as to control the load on the power source as the building panel moves along the shaping machine.
First Claim
Other Claims data not available
