Fluid Dispensing Device for Discharging Fluid Simultaneously in Multiple Directions
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Dec 13, 2012
app pub date -
Jun 9, 2011
filing date -
Jun 9, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

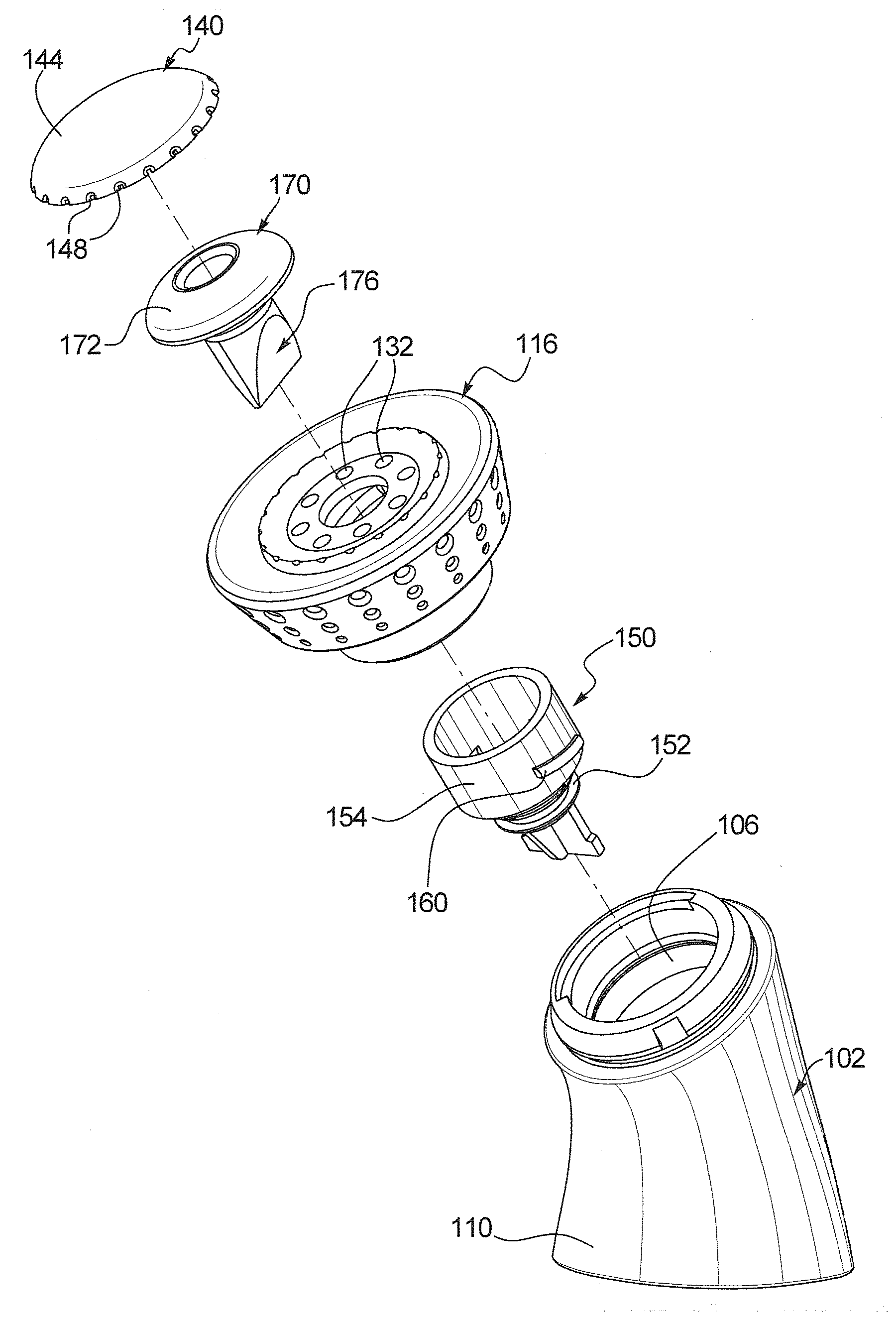

A fluid dispensing device is provided that is capable of discharging fluid in multiple different directions simultaneously. The device may include a deflector which redirects an initial stream of fluid from the container into multiple sub-streams that are oriented in different directions. The device may create a spray pattern that substantially covers an entire 360 degree area surrounding the device, which may be advantageous for certain applications such as toilet bowl cleaner dispensers. A control valve or flow restrictor may be provided for preventing unintended discharge of fluid when the container is inverted.
