Eyeglass joint and eyeglass frame
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 2, 2014
Grant Date -
Dec 6, 2012
app pub date -
Sep 15, 2010
filing date -
Sep 16, 2009
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

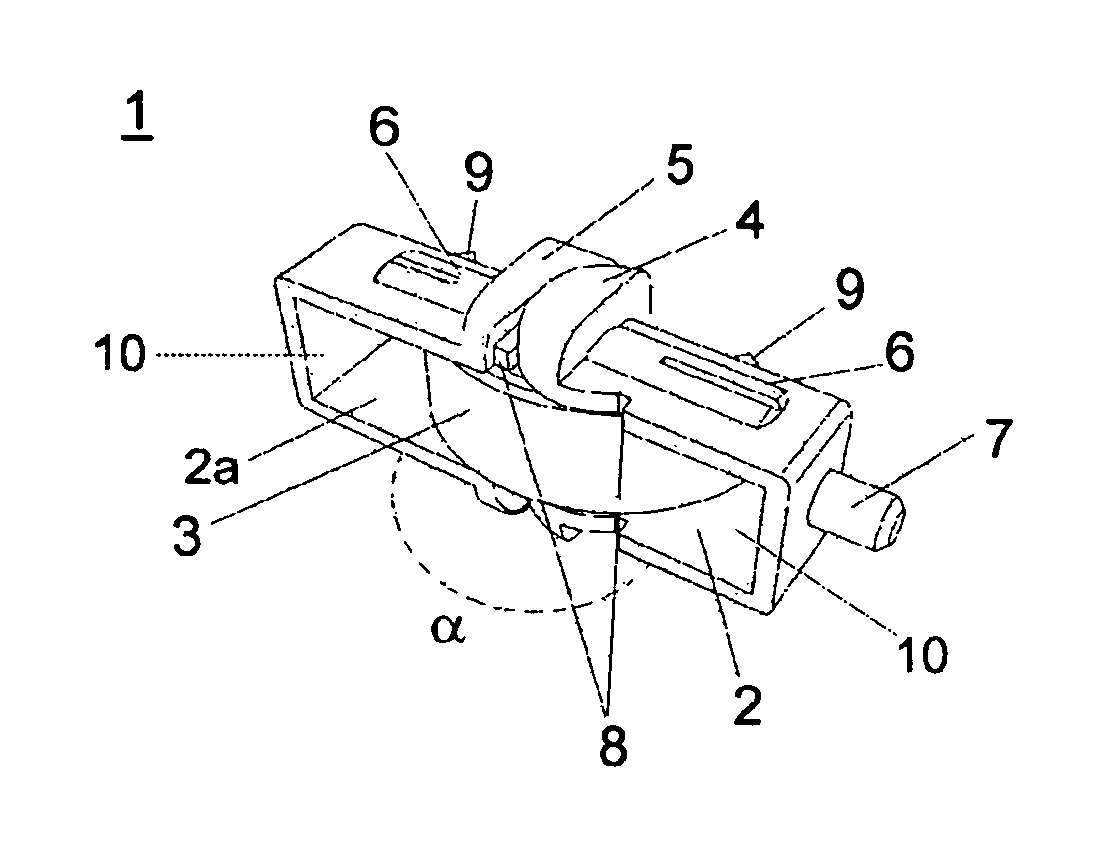

The invention relates to an eyeglass hinge, composed of two hinge parts and at least one clamp connection. Further, the invention relates to an eyeglass frame, composed of two eyeglass hinges according to the invention, two eyeglass earpieces and one lens mounting rim. The eyeglass hinge (1) according to the invention comprises two hinge parts (2, 2a) and at least one clamp connection (3), whereby the at least one clamp connection (3) holds hinge parts (2, 2a) together in an articulated manner. When force is increased, the construction of the eyeglass hinge according to the invention makes possible a problem-free exceeding of frame opening angle α from a value of αopen which amounts to approximately 180° up to a value of αmax of approximately 186° (over-bending) and going below frame opening angle α from a value of αclosed, which amounts to approximately 90°, down to a value of αmin of approximately 85° (under-bending).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2010 Application Filing Year
- G02C Class
- 320 Applications Filed
- 242 Patents Issued To-Date
- 75.63 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G02C Class
- 5.49 % this patent is cited more than
- 11 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 2, 2026 |
