PLANT FOR THE CONTINUOUS MANUFACTURE OF AN EXPANDABLE PLASTIC GRANULATE AS WELL AS METHOD FOR PRODUCING IT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 11, 2011
filing date -
Jan 28, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

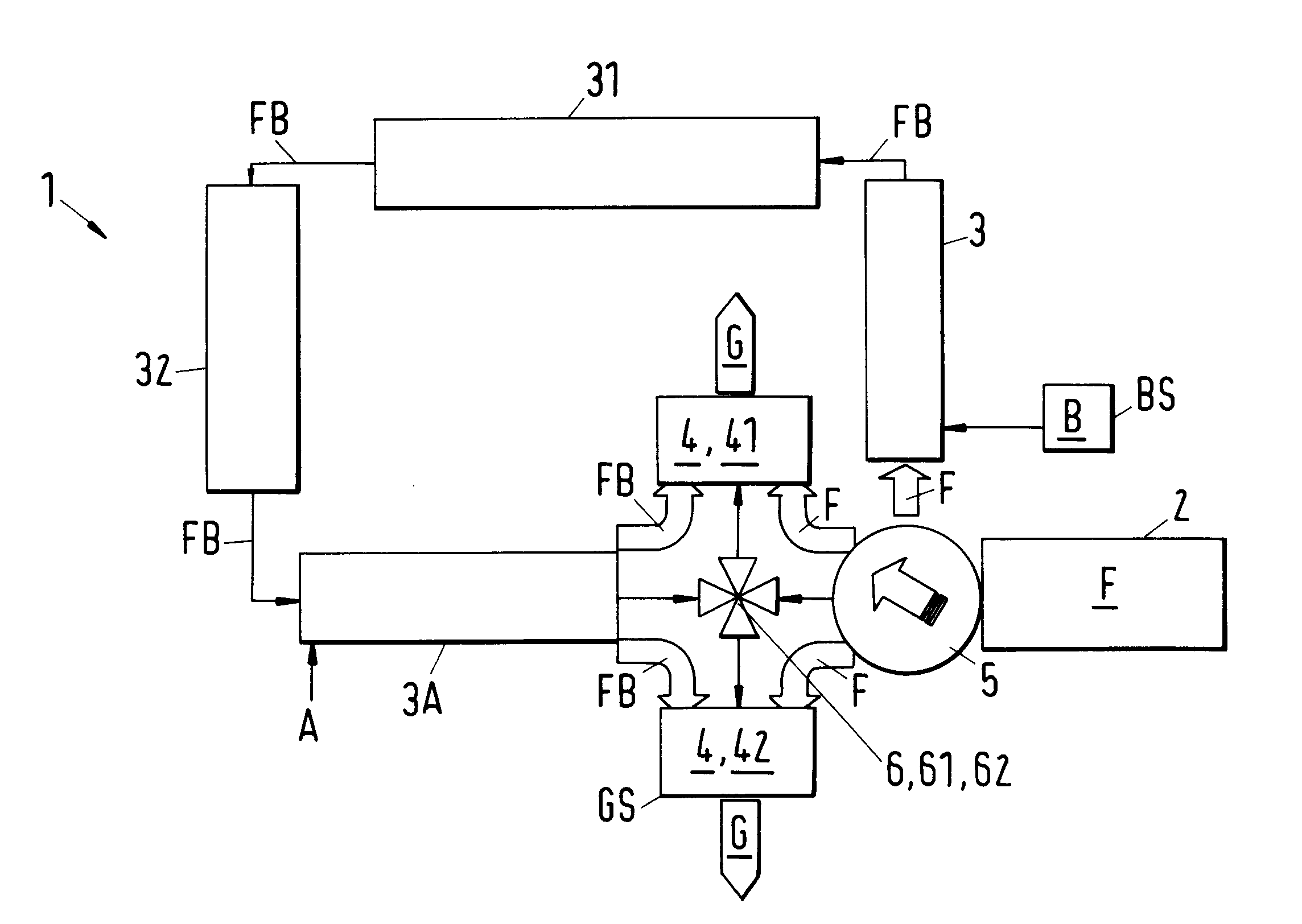

A plant (1) for the continuous manufacture of an expandable plastic granulate (G) is disclosed that includes a plastic melt source (2) for providing a plastic melt (F), an impregnating device (3) for providing an impregnated plastic melt (FB) by impregnating the plastic melt (F) with an expanding agent (B) provided by an expanding agent source, and a granulator (4, 41, 42) for producing the granulate (G) from the impregnated plastic melt (FB) with the granulator (4, 41, 42), with the granulator (4, 41, 42) being fluidly connected to the impregnating device (3). According to the invention, a switching means (5) is provided in such a way, that the plastic melt (F) can be fed to the granulator (4, 41, 42) under bypassing the impregnating device (3). In addition, the invention relates to a method for producing a granulate (G) using a plant (1) in accordance with the invention.
First Claim
Other Claims data not available
