RENAL NERVE STIMULATION LEAD, DELIVERY SYSTEM, AND METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 15, 2012
app pub date -
May 11, 2011
filing date -
May 11, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

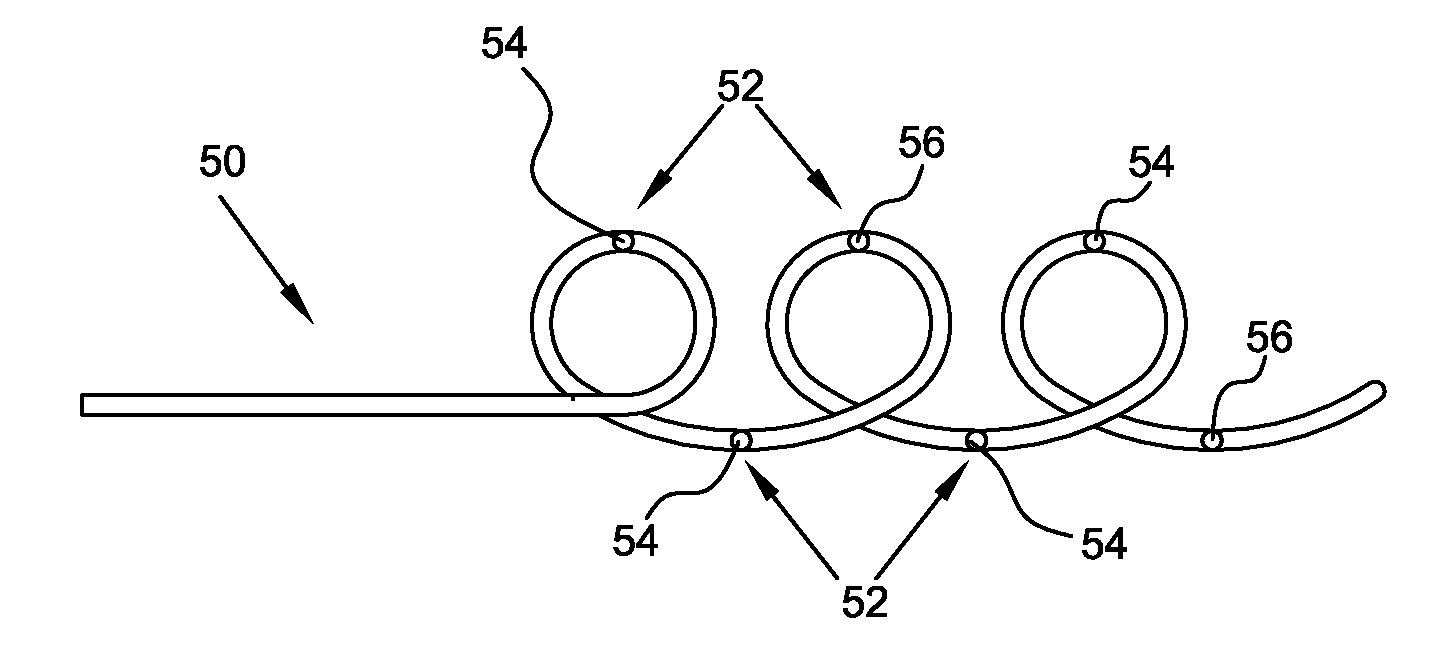

A lead for nerve modulation comprises an elongated body which includes a proximal end, a distal portion having a distal end, and an intermediate portion disposed between the proximal end and the distal portion. The distal portion includes a distal portion anchoring mechanism to anchor the distal portion to a first biological cavity of a patient. The intermediate portion includes an intermediate portion anchoring mechanism to anchor the intermediate portion to a second biological cavity of the patient. The intermediate portion anchoring mechanism is larger in lateral dimension than and is spaced from the distal portion anchoring mechanism. The distal portion and/or the intermediate portion includes a plurality of modulation electrodes. The distal portion anchoring mechanism and/or the intermediate portion anchoring mechanism is configured to position the modulation electrodes to contact tissue of the patient at multiple locations.
First Claim
Other Claims data not available
