Sun shield assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 15, 2012
app pub date -
May 9, 2011
filing date -
May 9, 2011
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

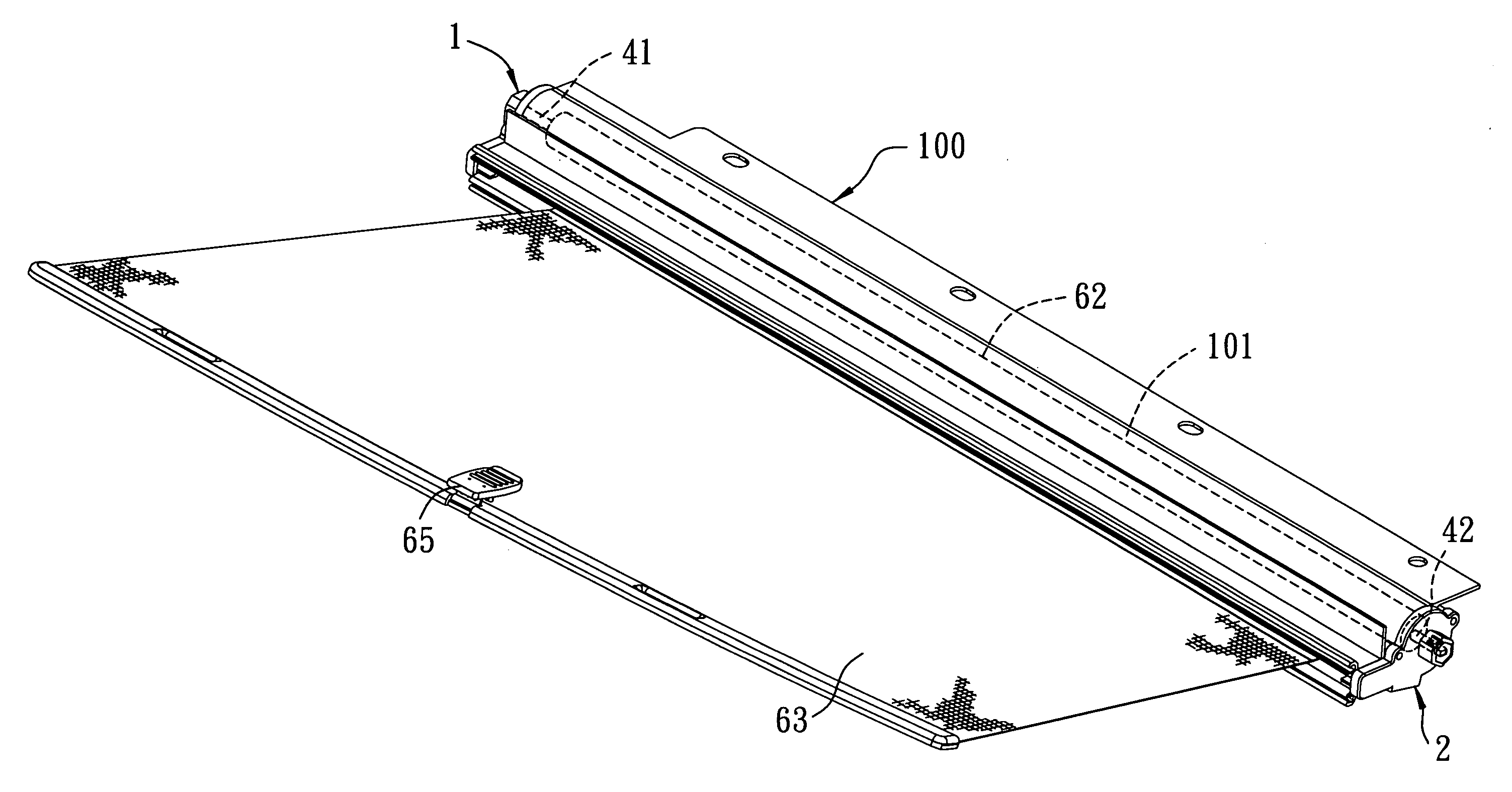

A sun shield assembly includes: a spool housing provided with first and second supporting seats; a spool-supporting unit disposed in the spool housing and having first and second studs opposite to each other in an axial direction and coupled to the first and second supporting seats, respectively; a spool mounted rotatably to the spool-supporting unit; and a sun shield member mounted movably on the spool. The first supporting seat includes a casing, and a coupler disposed in the casing and formed with an insert hole. The first and second studs extend into the insert hole in the coupler and the first supporting seat, respectively. The first supporting seat further includes an urging member mounted in the casing to urge resiliently the coupler in a first radial direction relative to the axial direction.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E06B Class
- 7.17 % this patent is cited more than
- 13 Age
