SYSTEM FOR PLUGGING PAINT CANS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 15, 2012
app pub date -
Nov 19, 2010
filing date -
Nov 20, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

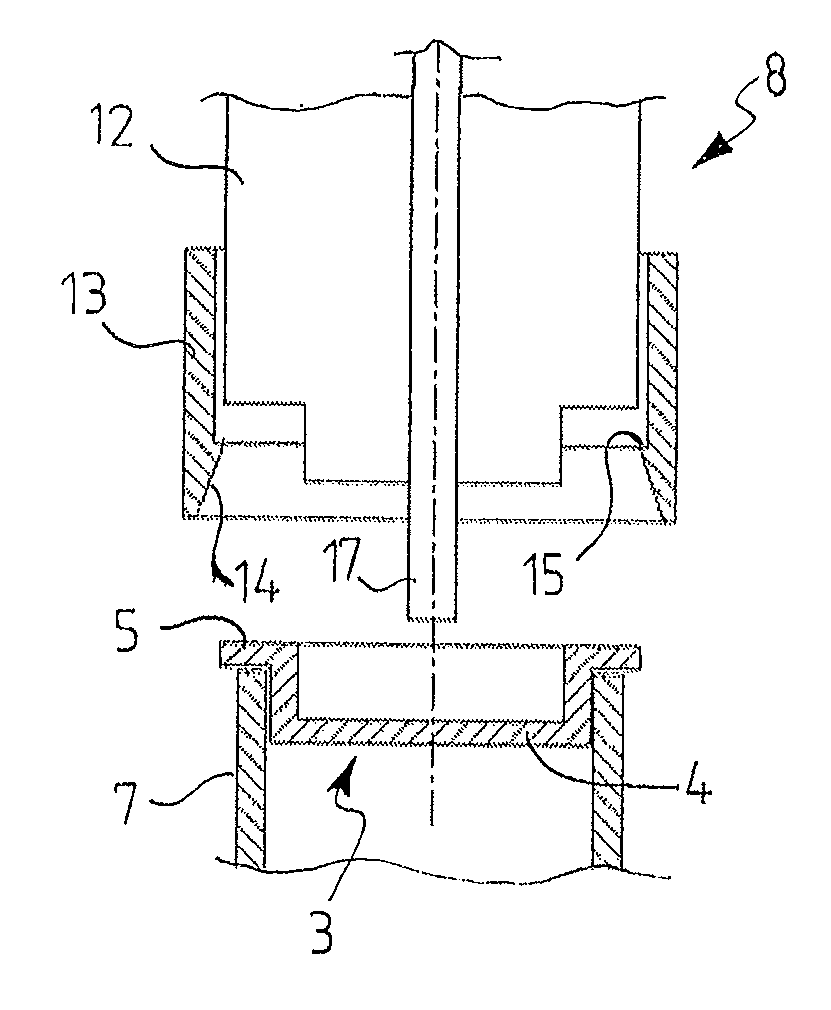

The invention relates to a system for plugging paint cans, which system is arranged to press a hollow, cuplike, elastic plug (3) provided with a protruding circumferential rim (5) into a hole (2) made in a paint can lid (1) in a sealed manner by means of the plug's (3) shape, whereby the circumferential rim (5) of the plug (3) mounted in place is supported to the surface of the paint can lid (1), the system comprising a storage container (6) for plugs (3); a picker (7) for picking one plug (3) at a time from the storage container (6); a gripper (8) for gripping the plug (3) picked from the storage container (6) and for carrying it above a container lid (1) to be closed; and means for performing a mutual vertical movement of the gripper (8) and the paint can in order for thereby pressing the plug (3) into place in a sealed manner in the lid (1) of the paint can.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| FI | B | FI123368 | Nov 20, 2009 |
| WO | A1 | WO2011061403 | Nov 19, 2010 |
| EP | B1 | EP2501625 | Nov 19, 2010 |
International Classification(s)
- 2010 Application Filing Year
- B65B Class
- 1081 Applications Filed
- 623 Patents Issued To-Date
- 57.64 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B65B Class
- 7.15 % this patent is cited more than
- 13 Age
