APPARATUS AND METHOD FOR RECOVERY AND DRY TREATMENT OF OVERSPRAY IN A PAINTING BOOTH
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 8, 2012
app pub date -
Nov 4, 2010
filing date -
Dec 2, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

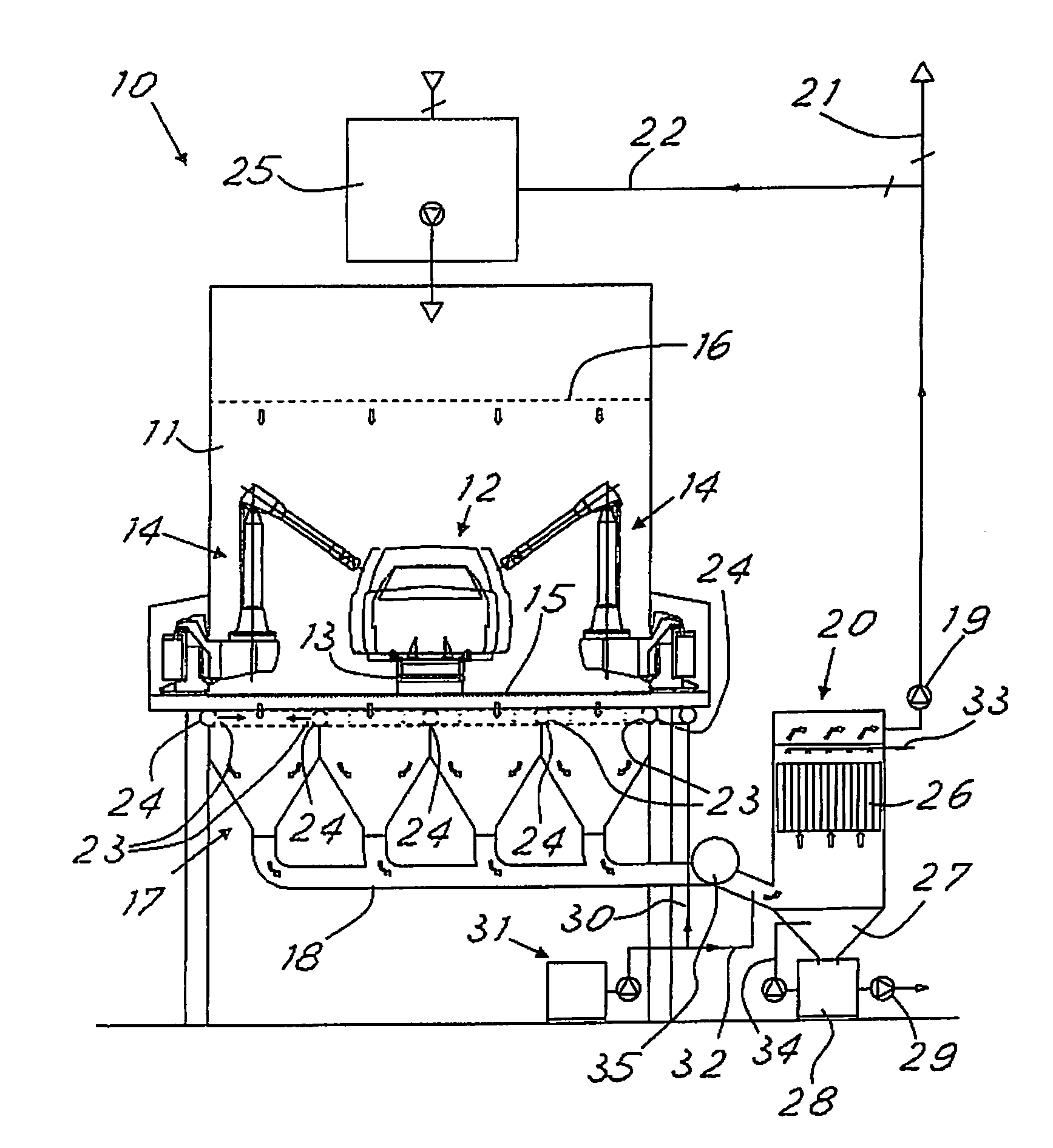

A liquid-paint painting booth (10) comprises a painting chamber (11) inside which the liquid paint is sprayed and which is provided with a grille-lined floor (15) for sucking from the chamber an air flow which is then conveyed to a filter unit (20, 26) for filtering the air and separating the overspray with the aid of neutralizing powders which are introduced into the air flow up-stream of the filter unit. The air flow is sucked from the chamber through at least one conduit (17), the inlet of which is close to and underneath the grille-lined floor, whereby outlet mouths (23) for a laminar flow of powder transverse to the inlet and substantially parallel to the grille-lined floor of the chamber are provided in the vicinity of the sides of the conduit inlet, so that the laminar flow is passed through by the said air flow leaving the chamber via the conduit.
