SUPPORTING FOUNDATION FOR A HYDROKINETIC TURBINE, AND RELATED UNDERWATER DEVICE AND INSTALLATION METHOD
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 8, 2012
app pub date -
Aug 26, 2010
filing date -
Aug 28, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

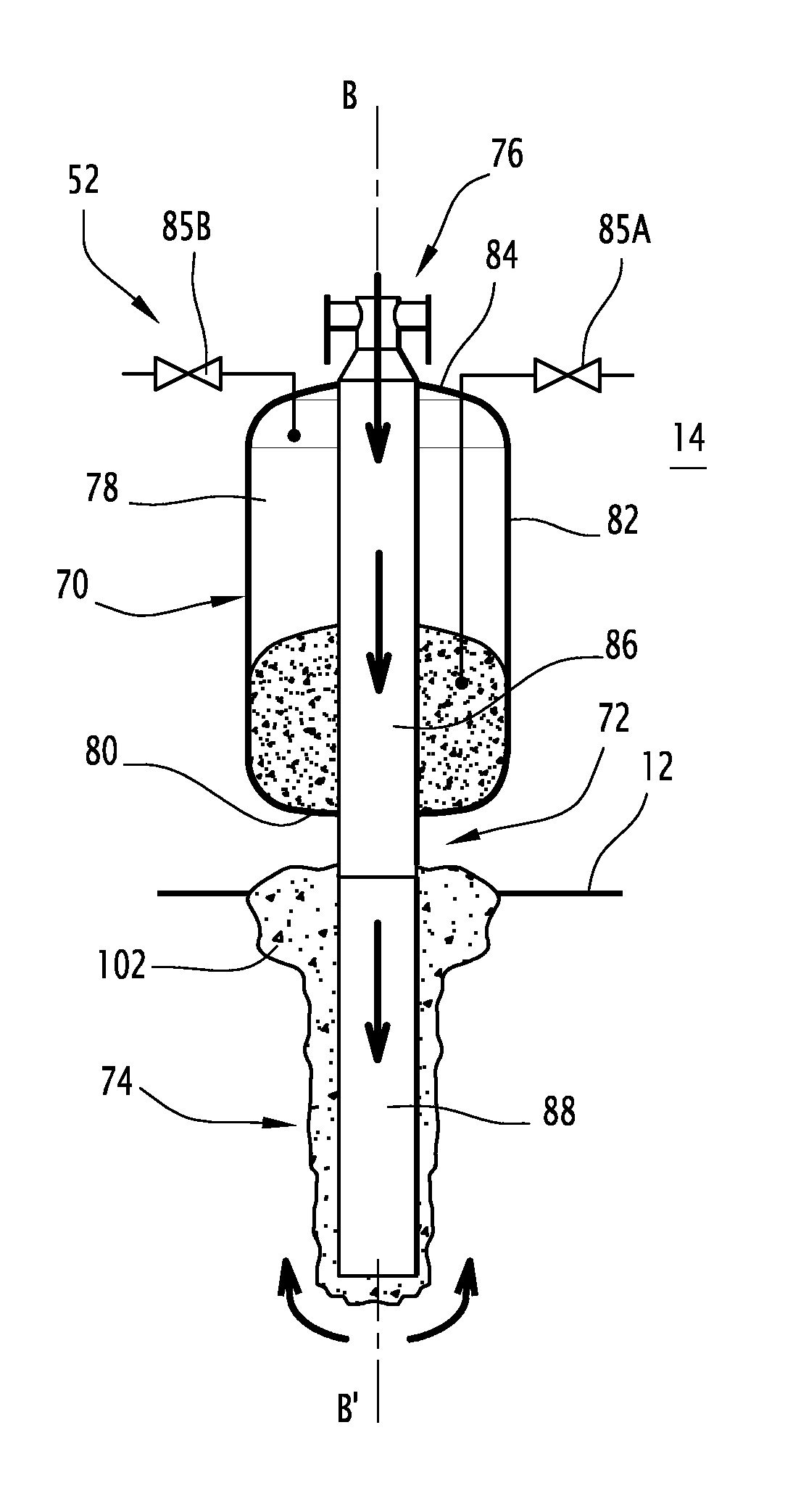

The invention relates to a supporting foundation (20) including a base (50), a marine current turbine carrier (54) supported by the base (50), and at least three legs (52) for bearing on the floor of the body of water (14), connected together by means of the base (50). Each bearing leg (52) comprises a hollow casing (70), and a rigid member (72) for adjusting the vertical position of the hollow casing (70) relative to the floor (12) of the body of water. The rigid adjustment member (72) is immobilized so as to vertically project under the casing (70). Each bearing leg (52) further includes a member (74) for engaging with the floor of the body of water (14) and rigidly connected to the lower end of the rigid adjustment member (72).
First Claim
Other Claims data not available
