Systems and methods for enhancing electrical discharge
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 1, 2013
Issued Date -
N/A
app pub date -
May 9, 2005
filing date -
May 9, 2005
priority date (Note) -
Expired
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Patent Longevity
|
Forward Citations
|
Abstract

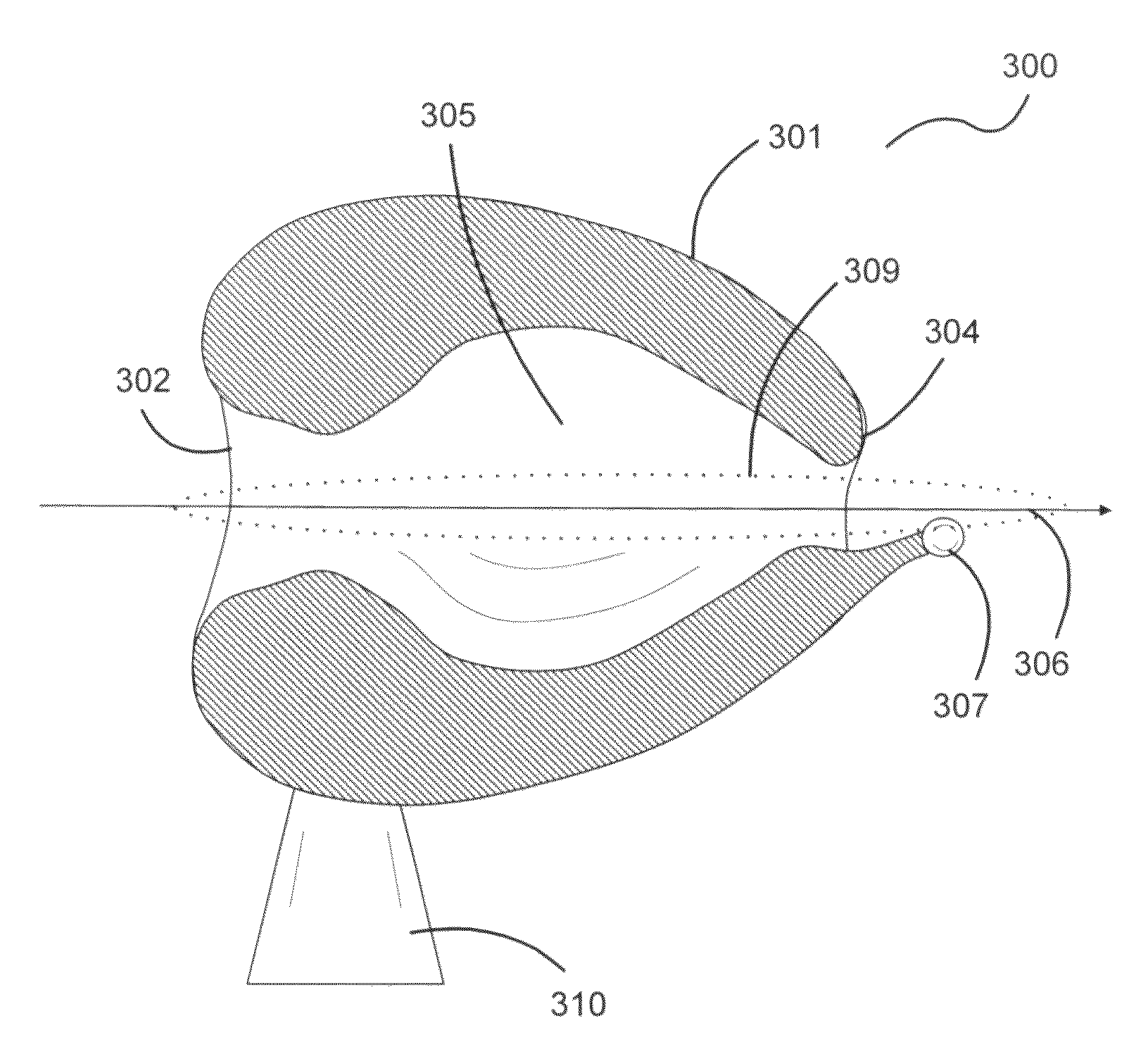

Systems and methods presented herein are generally directed to enhancing electrical discharge. A hollow conical electrode may be provided to discharge electrical energy in a directed manner. The conical electrode has two openings: a larger entrance opening; and a smaller exit opening. These openings are configured to allow radiated energy to pass therethrough and form a preferential path of electrical conduction. The larger entrance opening has a surface with a radius of curvature that is larger than that of the second smaller exit opening. The smaller exit opening directs electrical energy to the path because of stronger electric fields. In one embodiment, a protruding electrode element is configured with the smaller exit opening to further enhance electrical discharge by focusing electric fields in the vicinity of the protruding electrode.
First Claim
Other Claims data not available
