High-flow, low-velocity gas flushing system for reducing and monitoring oxygen content in packaged produce containers
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Oct 6, 2020
Grant Date -
Nov 8, 2012
app pub date -
May 3, 2012
filing date -
May 4, 2011
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

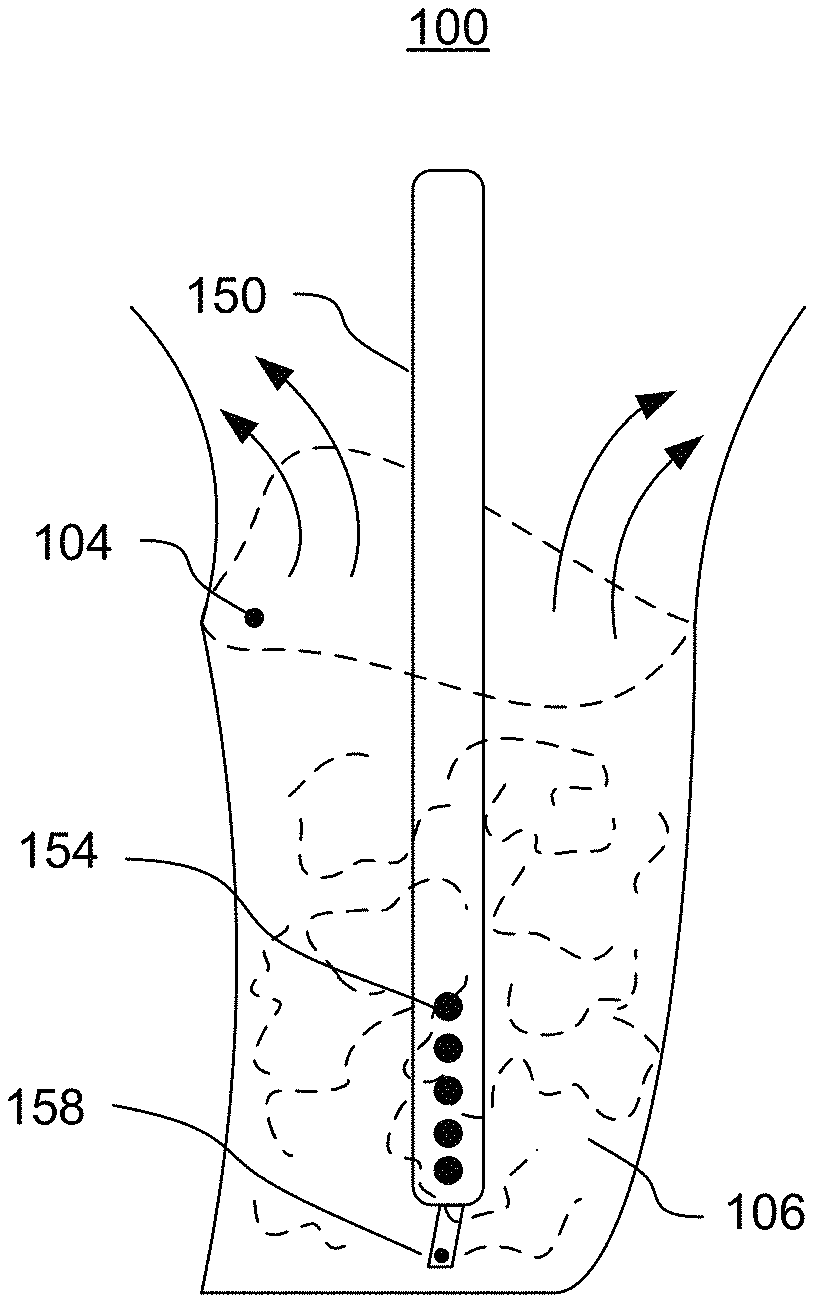

A system for reducing oxygen in a package of produce product using a lance manifold. The lance manifold has a first end adapted to receive an input gas flow and a second end adapted for placement in a partially-enclosed cavity containing the produce product. The second end of the lance manifold includes a plurality of exit ports adapted to produce an output gas flow and a sampling port for taking an air sample from the partially-enclosed cavity. The system also includes an oxygen analyzer for detecting oxygen content of gas inside the partially-enclosed cavity using the sampling port. The system is configured to produce an output gas flow with the following properties: a substantially oxygen-free composition; a flow rate of at least 100 standard cubic feet per hour (SCFH); and a flow direction substantially 90 degrees to a cavity opening of the partially-enclosed cavity.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2012 Application Filing Year
- B65B Class
- 1148 Applications Filed
- 754 Patents Issued To-Date
- 65.68 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B65B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Apr 6, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Apr 6, 2032 |
