TOOTHED CABLE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Nov 1, 2012
app pub date -
Apr 26, 2012
filing date -
Apr 28, 2011
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

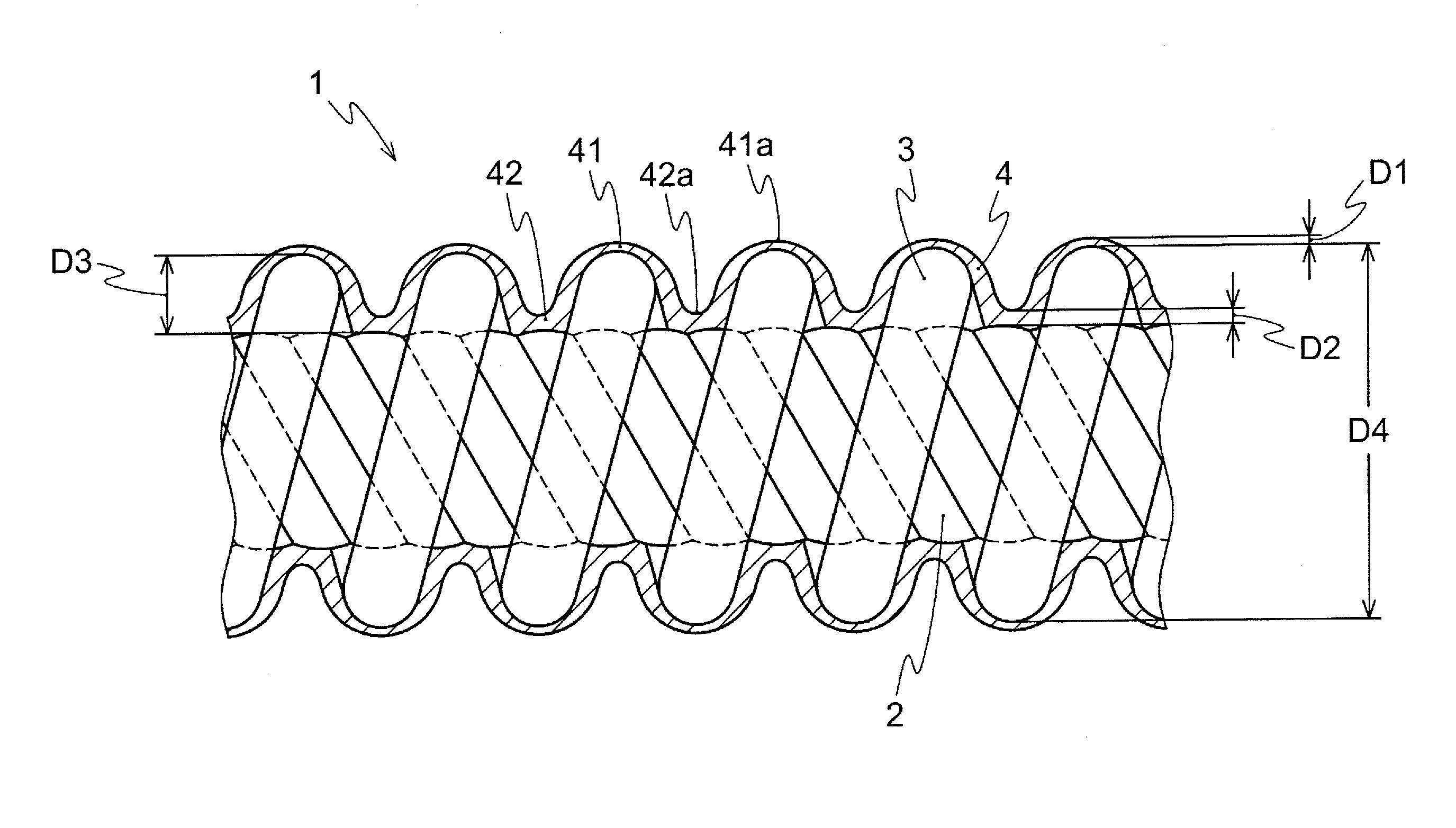

The present invention has an object of providing a toothed cable 1 not to cause an unnecessary load on a motor or the like, not to cause tear in the cover layer and to have excellent durability. The present invention provides a toothed cable 1 comprising a core cable 2, and a tooth line 3 helically wound on the outer periphery of the core cable 2. The toothed cable 1 further comprises a cover layer 4 covering the outer surface of the core cable 2 and the tooth line 3 with a resin continuously. This toothed cable 1 has helical convex portions 41 formed by covering the tooth line 3 with the resin and helical concave portions 42 formed by covering intervals in the tooth line with the resin, and the covered layer 4 is in contact with the core cable 2 and the tooth line 3.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| JP | B2 | JP5826512 | Apr 28, 2011 |
| CN | B | CN102758878 | Apr 25, 2012 |
International Classification(s)
- 2012 Application Filing Year
- F16G Class
- 145 Applications Filed
- 124 Patents Issued To-Date
- 85.52 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F16G Class
- 10 % this patent is cited more than
- 13 Age
