Magnetic Mass-Lift Impulsive Seismic Energy Source Including Attracting and Repulsing Electromagnets
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 26, 2012
filing date -
Aug 6, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

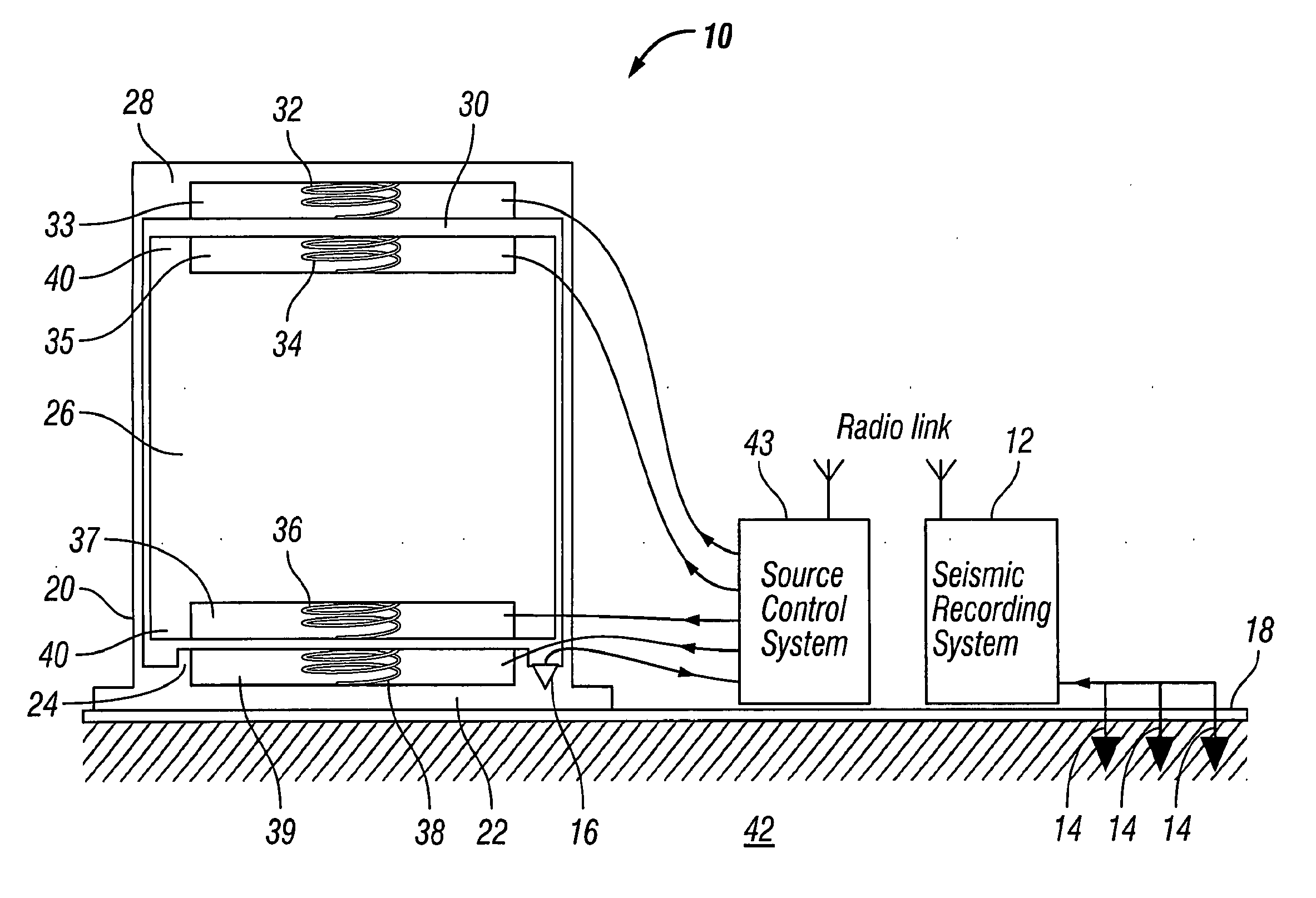

A seismic energy source includes a base plate and a block fixedly coupled in a frame. The base plate is configured for contact with a part of the Earth's subsurface to be seismically energized. The frame has a first electromagnet associated therewith. A second electromagnet is disposed in a travelling reaction mass, which is movably disposed in the frame between the first electromagnet assembly and the top block. The reaction mass includes at least a third electromagnet associated therewith. The source has circuits for selectively energizing the first, second and at least a third electromagnets, and which are configured to energize the first and second electromagnets to repel each other such that the traveling reaction mass is lifted from the first electromagnet, and configured to energize the at least a third electromagnet after a selected delay time to cause attraction between the traveling reaction mass and the top block
First Claim
Other Claims data not available
