Solid State Bidirectional Light Sheet for General Illumination
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 29, 2012
filing date -
Aug 27, 2010
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

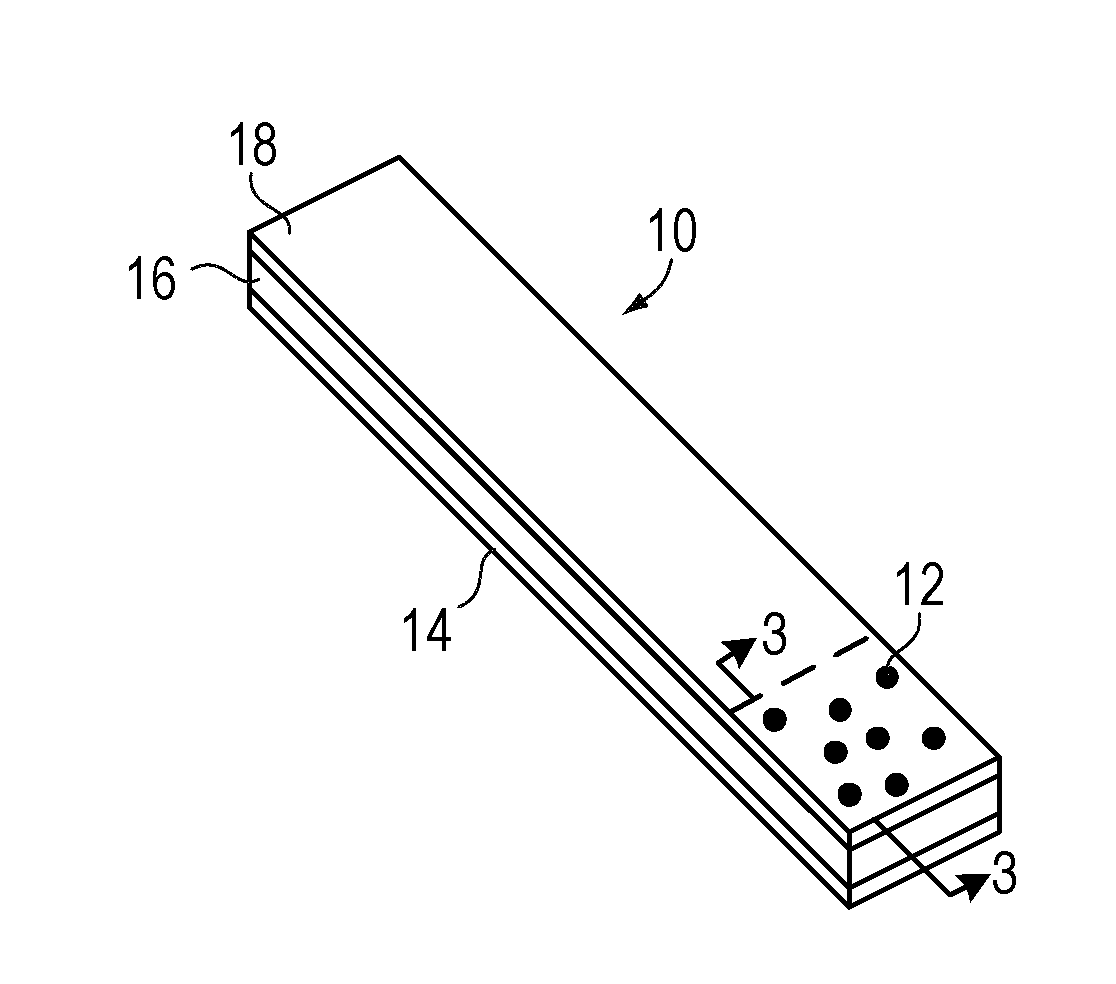

A solid state light sheet and method of fabricating the sheet are disclosed. In one embodiment, bare LED chips have top and bottom electrodes, where the bottom electrode is a large reflective electrode. The bottom electrodes of an array of LEDs (e.g., 500 LEDs) are bonded to an array of electrodes formed on a flexible bottom substrate. Conductive traces are formed on the bottom substrate connected to the electrodes. A transparent top substrate having conductors is then laminated over the bottom substrate. Various ways to connect the LEDs in series are described along with many embodiments. The light sheets may be formed to emit light from opposite surfaces of the light sheet, enabling it to be used in a hanging fixture to illuminate the ceiling as well as the floor. The light sheet provides a practical substitute for a standard 2×4 foot fluorescent ceiling fixture.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 32 Citation Count
- F21V Class
- 86.18 % this patent is cited more than
- 13 Age
