AROMATIC NEBULIZING DIFFUSER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 13, 2012
filing date -
Jul 28, 2009
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

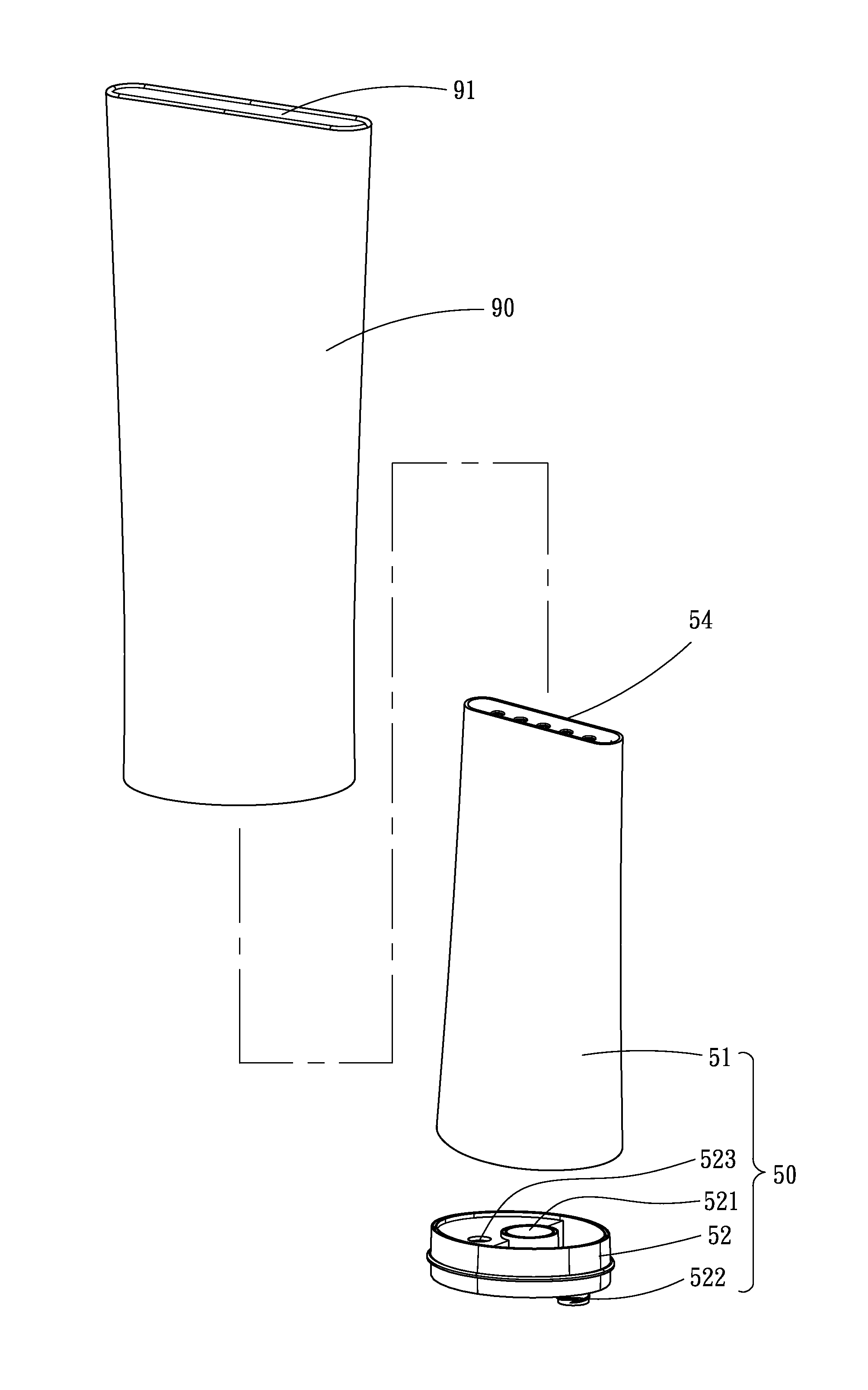

An aromatic nebulizing diffuser includes a base panel, a holder defining therein an oscillation chamber, a power switch, an electric fan, a fluid container, an ultrasonic oscillator, a fluid intake control device set in between the oscillation chamber and the fluid container, a dip tube in communication between the oscillation chamber and the fluid container and changeable between an open status and a close status to control the fluid intake control device in closing/opening the passage between the oscillation chamber and the fluid container, an outer housing, an air passage in air communication between the oscillation chamber and the cover for the passing of currents of air caused by the electric fan, an exhaust passage for guiding a generated fine mist of aromatic fluid droplets out of the oscillation chamber into the atmosphere.
First Claim
Other Claims data not available
