COMPOSITE SOUND-ABSORBING DEVICE WITH BUILT IN RESONANT CAVITY

Number of patents in Portfolio can not be more than 2000

United States of America Patent

APP PUB NO 20120247867A1
SERIAL NO

13515148

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

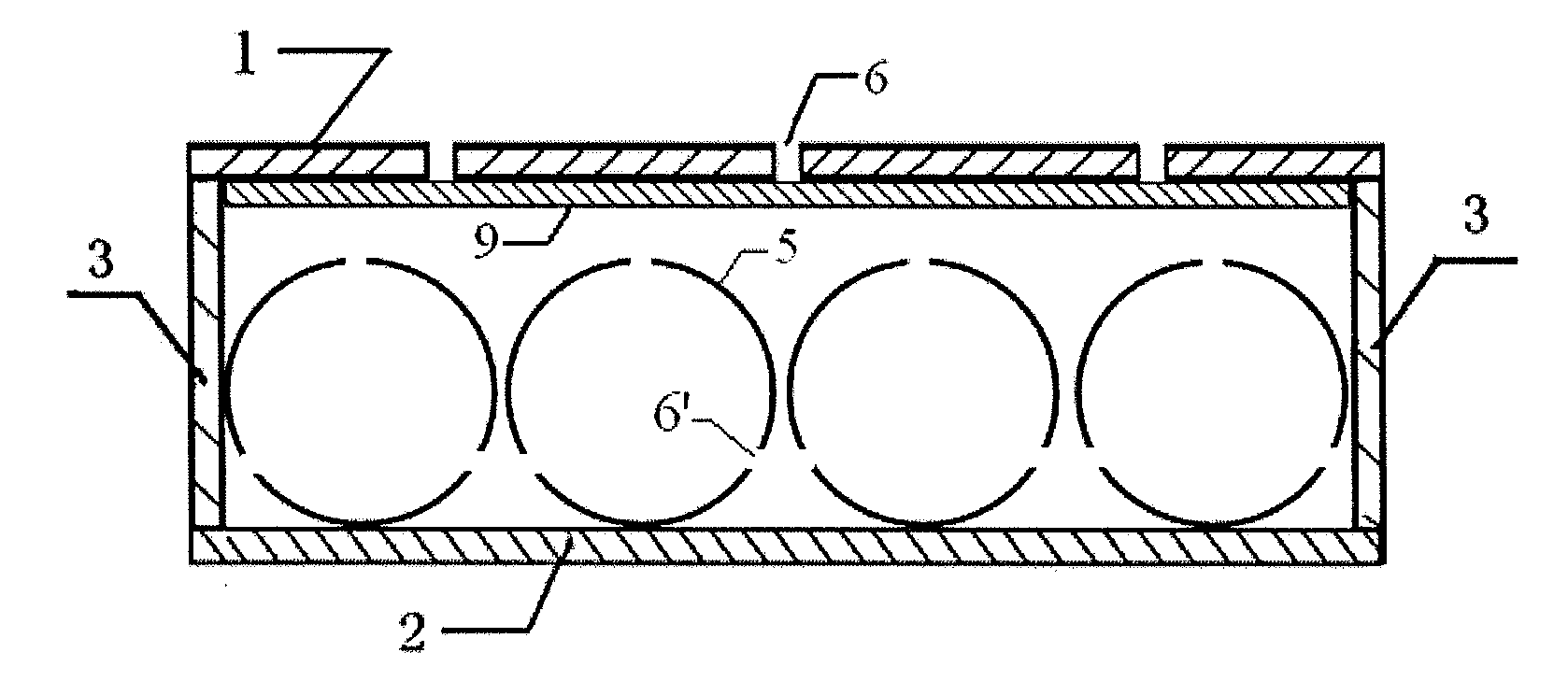

The composite sound-absorbing device of the present invention includes a perforated board having a number of first pores thereon, a back board and side boards, the perforated board, back board and side boards forming a closed cavity, wherein: at least one or more of the resonant cavities being located within the closed cavity; at least one or more of second pores being located on the resonant cavities; at least one of the second pores being connected with the closed cavity; the resonant cavity having a volume of V=10 mm3 −1×1010 mm3, having a thickness of 0.05 mm-10 mm, the second pores having an aperture of d′=0.05-100 mm, with a perforation rate σ′=0.01%-30%. The present invention is beneficial to improve the effect of sound-absorbing and expand the frequency band of sound-absorbing.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
INSTITUTE OF ACOUSTICS CHINESE ACADEMY OF SCIENCES100190 NO 21 WEST FOURTH RING ROAD BEIJING HAIDIAN DISTRICT MUNICIPAL DISTRICT BEIJING CITY 100190

International Classification(s)

loading....
  • 2010 Application Filing Year
  • E04B Class
  • 875 Applications Filed
  • 495 Patents Issued To-Date
  • 56.58 % Issued To-Date

Inventor(s)

Inventor Name Address # of filed Patents Total Citations
Yang, Jun Beijing, CN 792 8454

Cited Art Landscape

Load Citation

Patent Citation Ranking

  • 19 Citation Count
  • E04B Class
  • 65.08 % this patent is cited more than
  • 13 Age
Citation count rangeNumber of patents cited in rangeNumber of patents cited in various citation count ranges1327494428611201 - 1011 - 2021 - 3031 - 4041 - 5051 - 6061 - 70100 +020406080100120140160180200220240260280300
